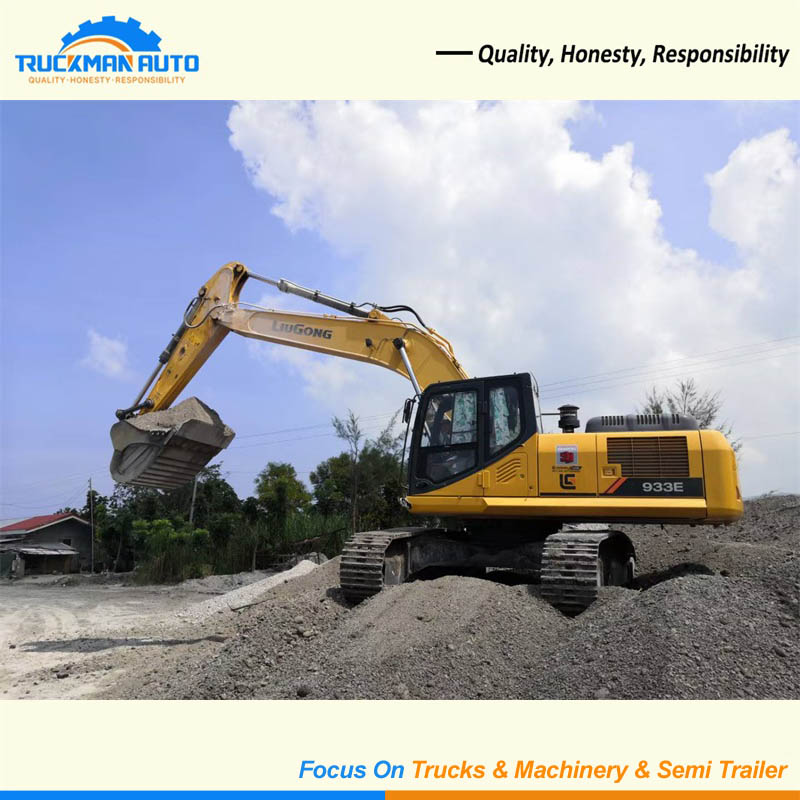

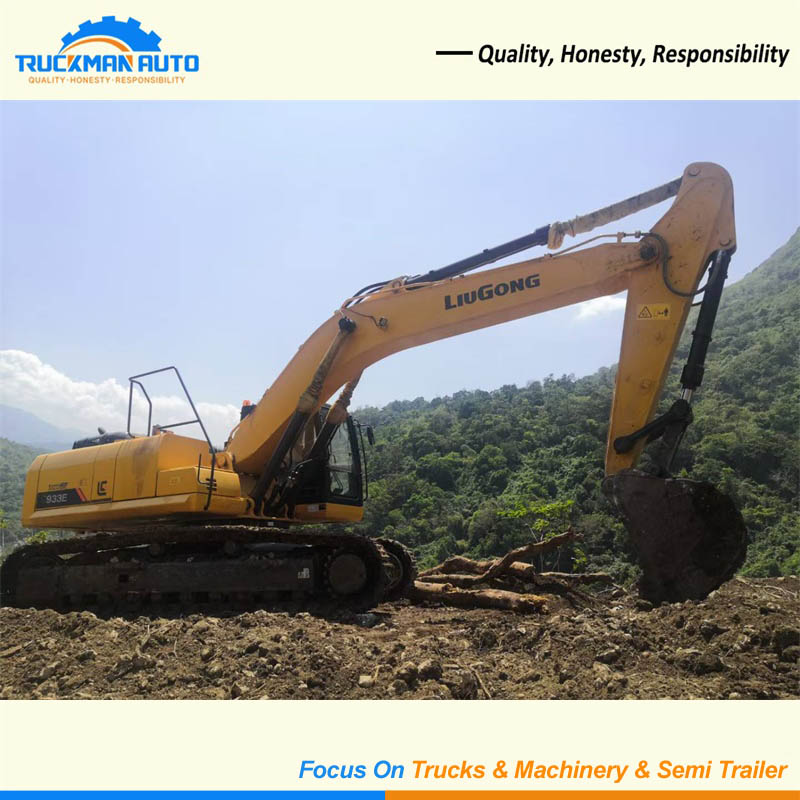

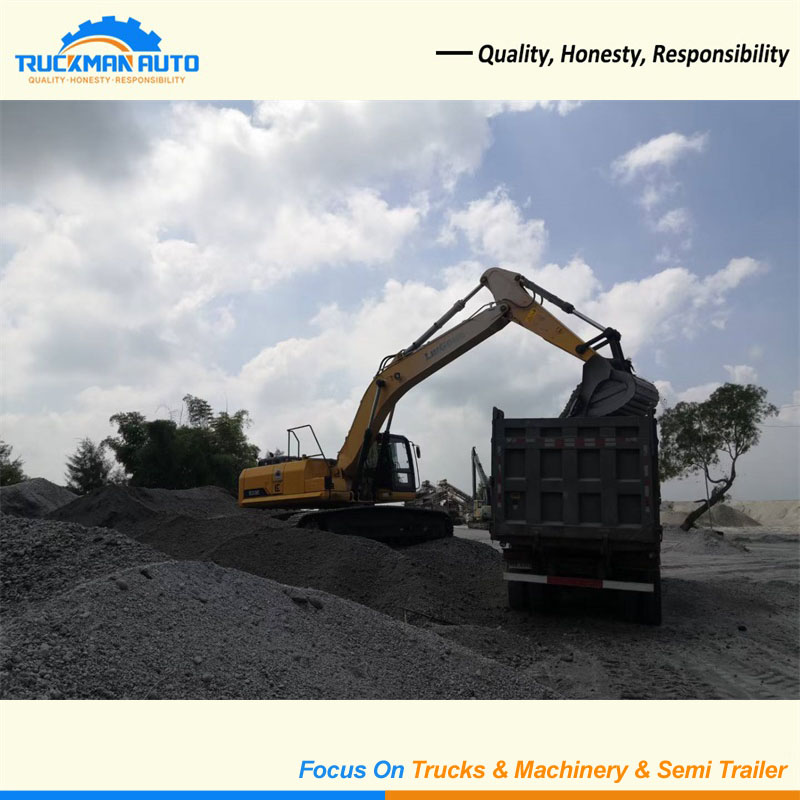

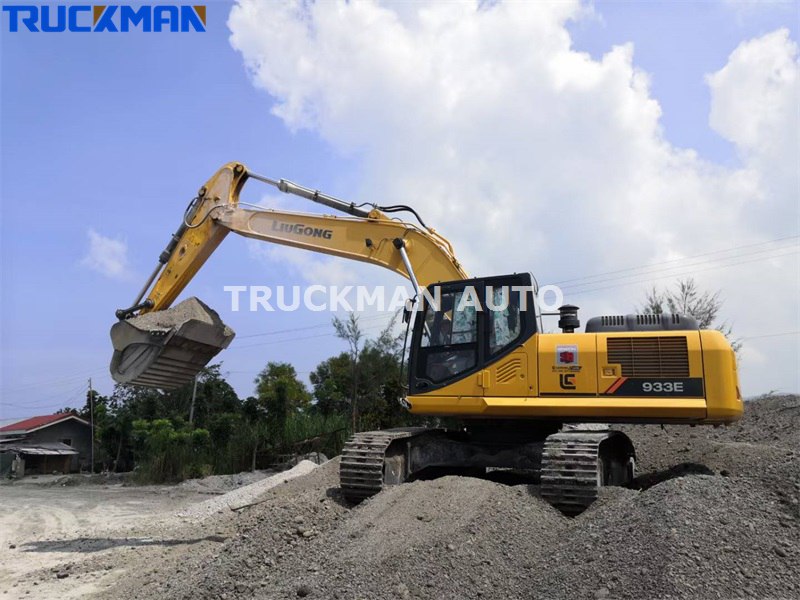

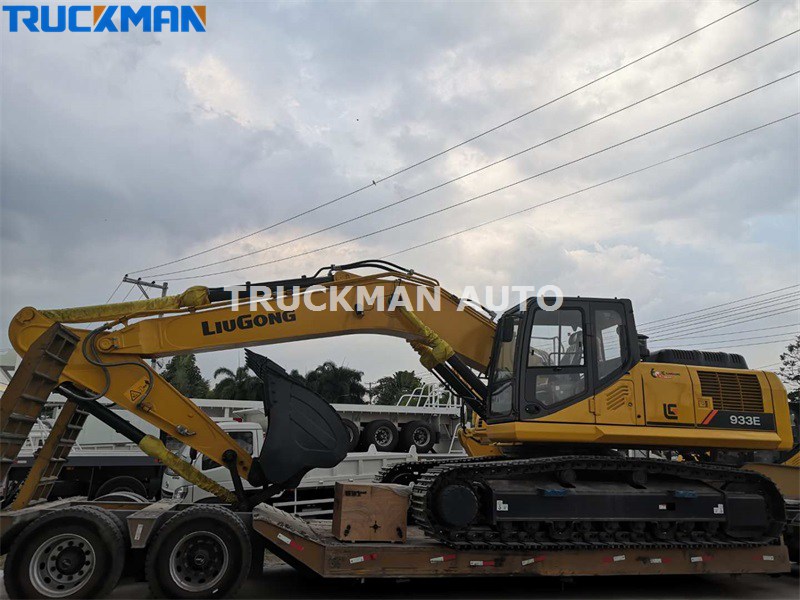

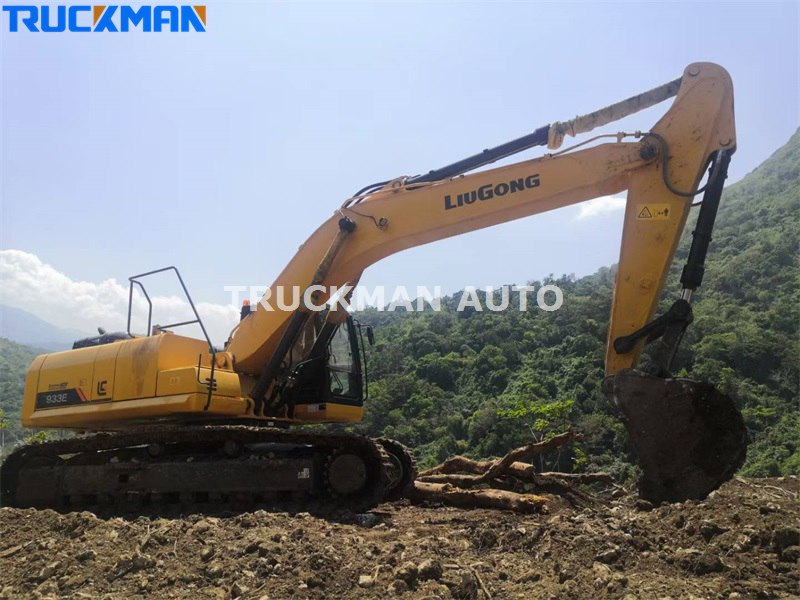

32 Tons LIUGONG 933E Crawler Excavator With CUMMINS Engine

About 32 Tons LIUGONG 933E Crawler Excavator

LIUGONG 933E excavator is a practical product in LIUGONG "E" series large excavators. It is designed for engineering customers who carry out earthwork, gravel excavation and loading operations. LIUGONG 933E excavator not only has a fast loading speed, but also has low fuel consumption. While LIUGONG 933E excavator operates efficiently, it can also reduce fuel consumption and increase profits for customers. Whether in mines, quarries, road construction, site leveling or other operating occasions, this excavator will bring you excellent performance.

32 Tons LIUGONG 933E Crawler Excavator Specification

Model: LIUGONG 933E

Operating Weight: 31,800kg

Bucket Capacity:1.6m3

Engine Model: CUMMINS brand, 6C-8.3, Euro 2 emission standards

Net Power : 152 kW (207 hp) @ 1,900 rpm

Maximum Travel Speed: 5.5 km/h

Maximum Digging Radius: 10,250 mm

Maximum Digging Radius At Ground Level: 10,032 mm

Maximum Digging Depth: 6,825 mm

Maximum Digging Depth: 6710mm

Maximum Vertical Digging Depth: 5,450 mm

Dimensions: 10,650x3,190x3,525mm

32 Tons LIUGONG 933E crawler excavator specification only for your reference, we can manufacture other model crawler excavator basic your request.

32 Tons LIUGONG 933E Crawler Excavator Engine

The LIUGONG 933E crawler excavator is equipped with a CUMMINS 6C-8.3 engine, which can output a large torque even at low speed. This CUMMINS engine is powerful. In the field of engineering machinery, this engine can provide sufficient power for the LIUGONG 933E excavator, enabling it to efficiently complete operations such as excavation and loading. This CUMMINS engine has sufficient torque, which makes it easier for the LIUGONG 933E excavator to start, climb and travel with heavy loads. This CUMMINS engine uses advanced combustion chamber design and fuel injection technology, which allows the fuel to be fully burned in the cylinder, reducing fuel waste and thus reducing fuel consumption.

32 Tons LIUGONG 933E Crawler Excavator Advantage

The hydraulic system of LIUGONG 933E excavator adopts top-level Kawasaki configuration and is equipped with KAWASAKI's new RB-type main control valve, which expands the valve core control range, greatly improves the micro-motion performance of the whole machine, and makes the response more agile. The bucket of LIUGONG 933E excavator is reasonably designed. The bucket adopts a low-resistance crescent-shaped bucket design, and is equipped with 5 rock-type bucket teeth with convex ribs to enhance the cutting force, so that it has the characteristics of good streamline, small resistance, fast loading/unloading, and full loading in loading operations.
