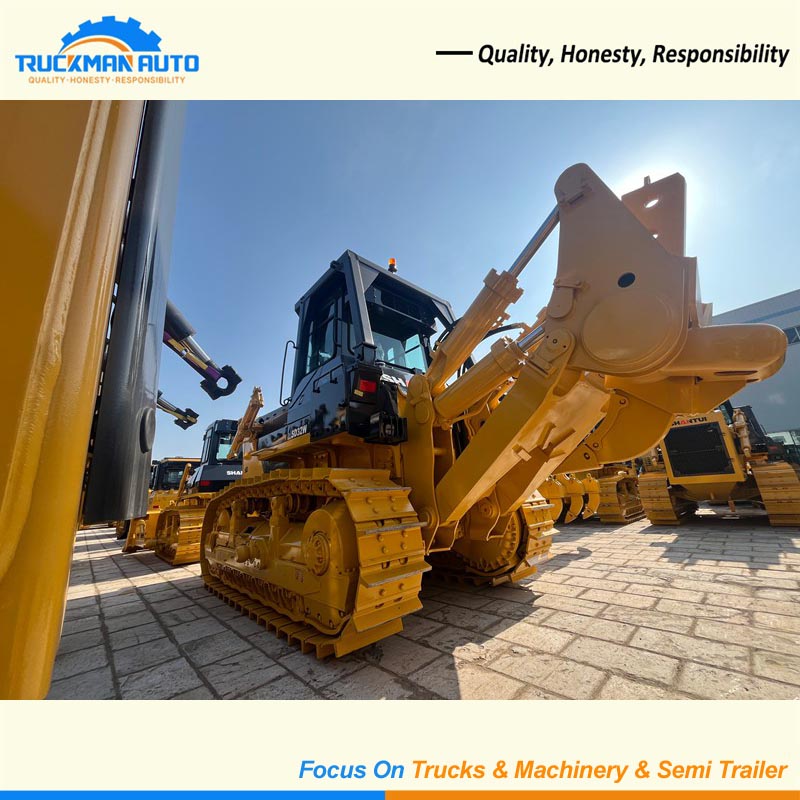

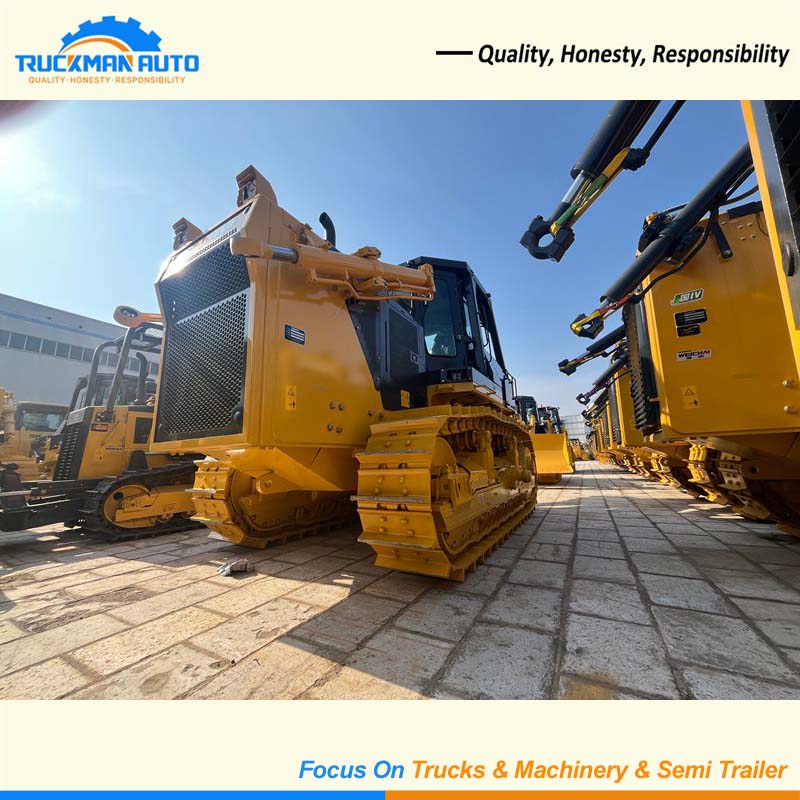

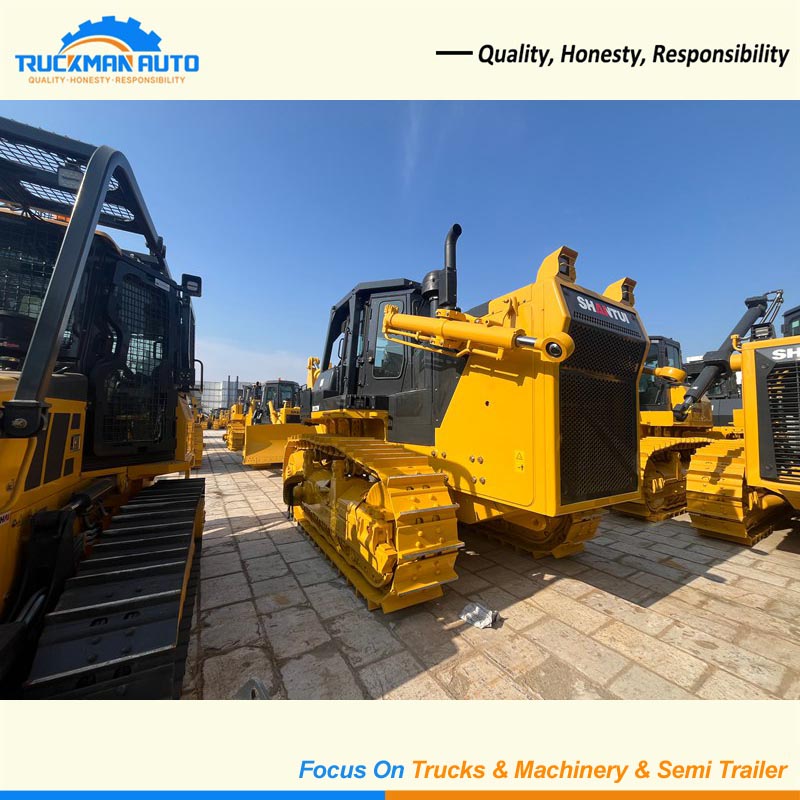

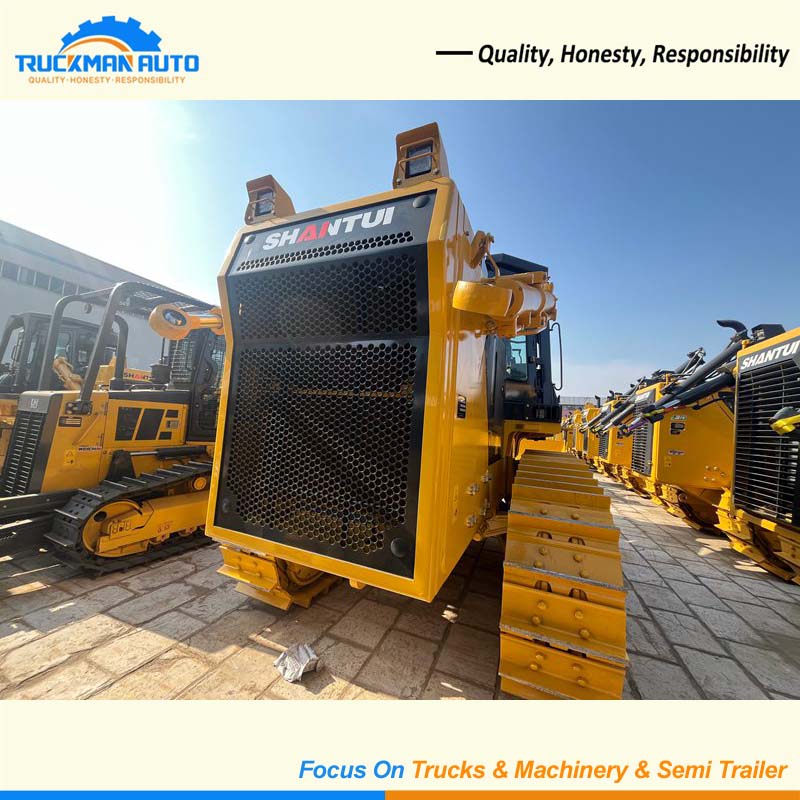

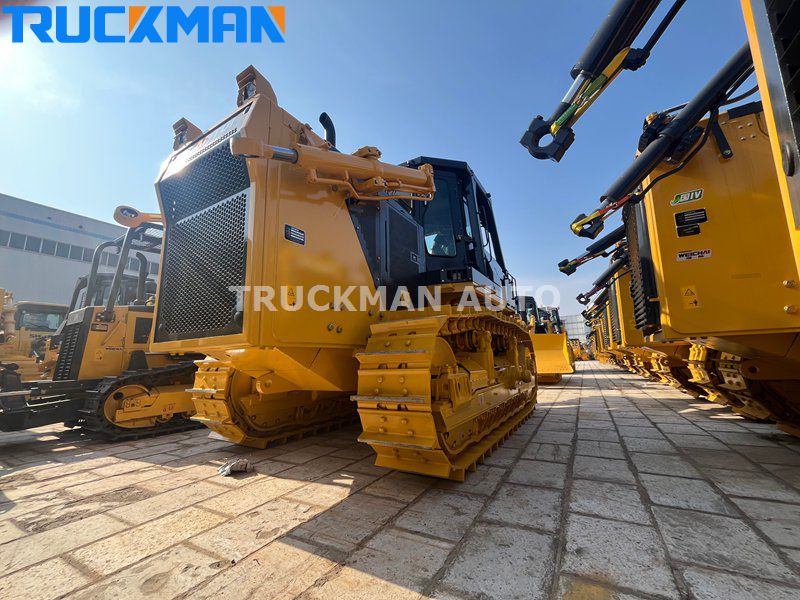

SHANTUI SD32W 38 Tons 320HP Bulldozer For Big Rock

About SHANTUI SD32W 38 Tons 320HP Bulldozer

The SHANTUI SD32W bulldozer is a rock-specific model developed by SHANTUI Construction Machinery Co., Ltd. for harsh heavy-duty working conditions such as weathered rock and frozen soil. It adopts hydraulic transmission and hydraulic operation technology, and the chassis and wear-resistant parts are reinforced based on the standard SD32 model. It is very suitable for heavy-duty working conditions such as weathered rock layers and frozen soil layers.

SHANTUI SD32W 38 Tons 320HP Bulldozer Specification

Product Name: SHANTUI SD32W 38 Tons 320HP Bulldozer

Application: Earth-moving operations

Engine Brand: WP12/QSNT-C345

Operating Weight: 38 tons

Grounding Specific Pressure (Mpa): 99.4Mpa

Overall Dimensions (mm): 8650*4130*3760

Drive Type: Crawler type

SHANTUI SD32W 38 Tons 320HP Bulldozer specification only for your reference, we can manufacture other model basic your request.

SHANTUI SD32W 38 Tons 320HP Bulldozer Power Advantages

The SHANTUI SD32W 38 Tons 320HP Bulldozer adopts hydraulic transmission and hydraulic control technology, equipped with a WP12/QSNT-C345 electronically controlled engine with a rated power of 257kW, meeting the euro III emission standard. It has a large torque reserve and high fuel economy. The gearbox and other components are made in-house by SHANTUI, and the transmission efficiency is industry-leading.

SHANTUI SD22S 220HP Bulldozer Chassis Introduction

The SHANTUI SD22S 220HP Bulldozer features a reinforced chassis design, weighs 40,900 kg, and uses rock-specific tracks and blades, significantly improving wear resistance. With a ground pressure of 99.4 kPa, it is suitable for high-load rock operations. Its chassis structure has been carefully optimized, which not only enhances overall rigidity but also improves stability in complex terrain.
