New 200HP SEM 920F Motor Grader For Guatemala

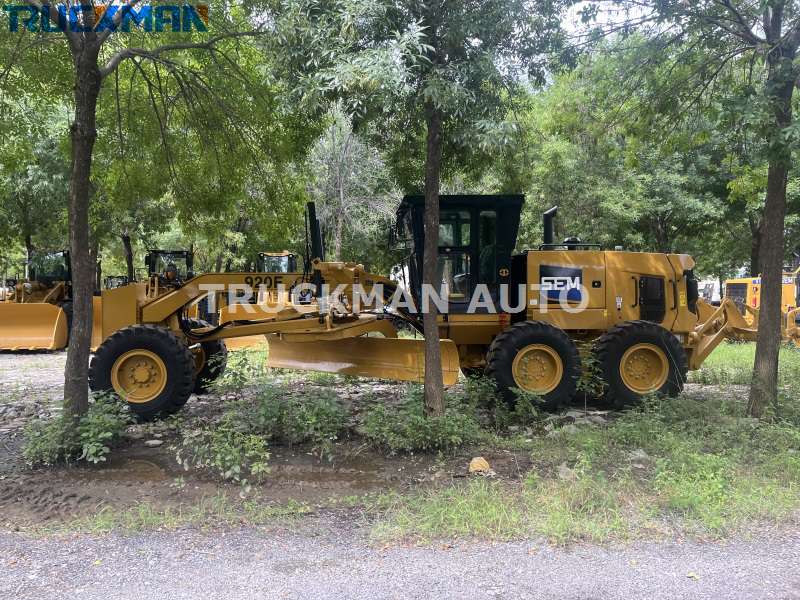

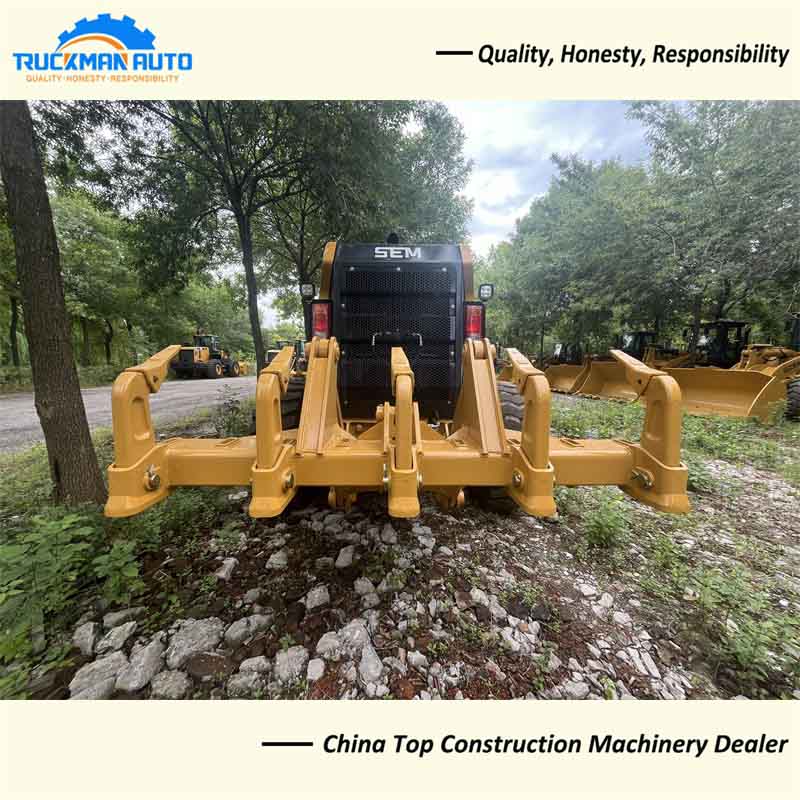

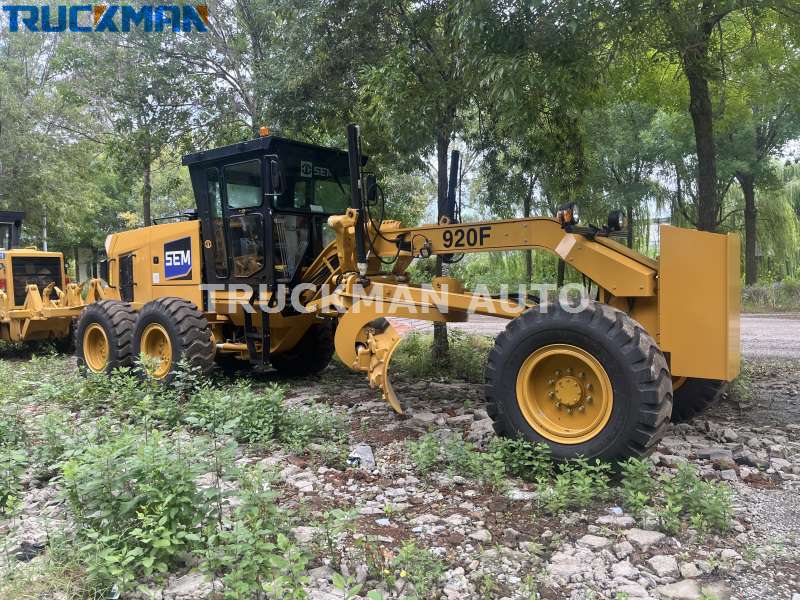

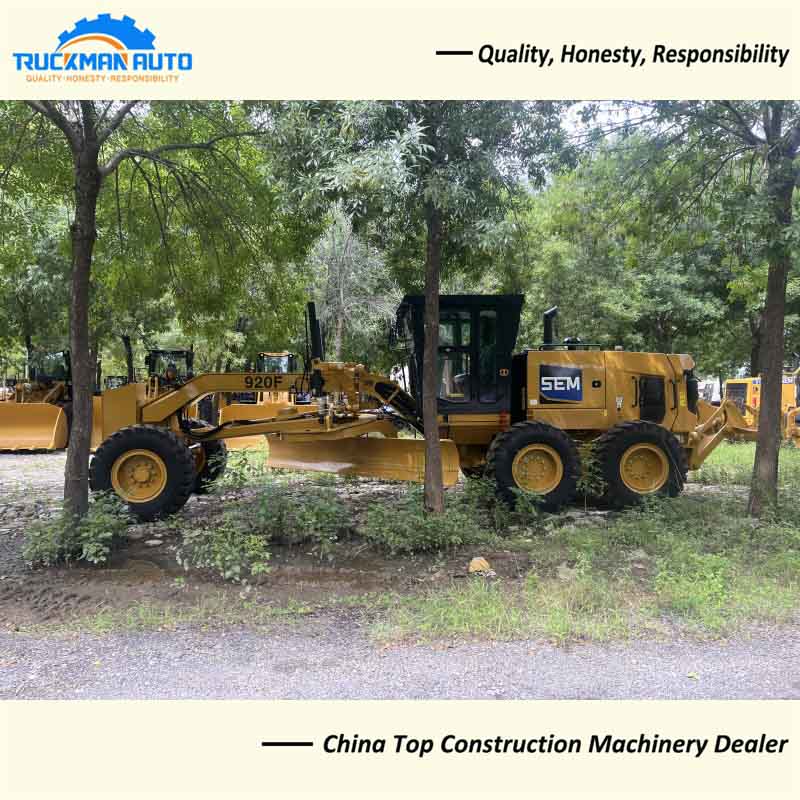

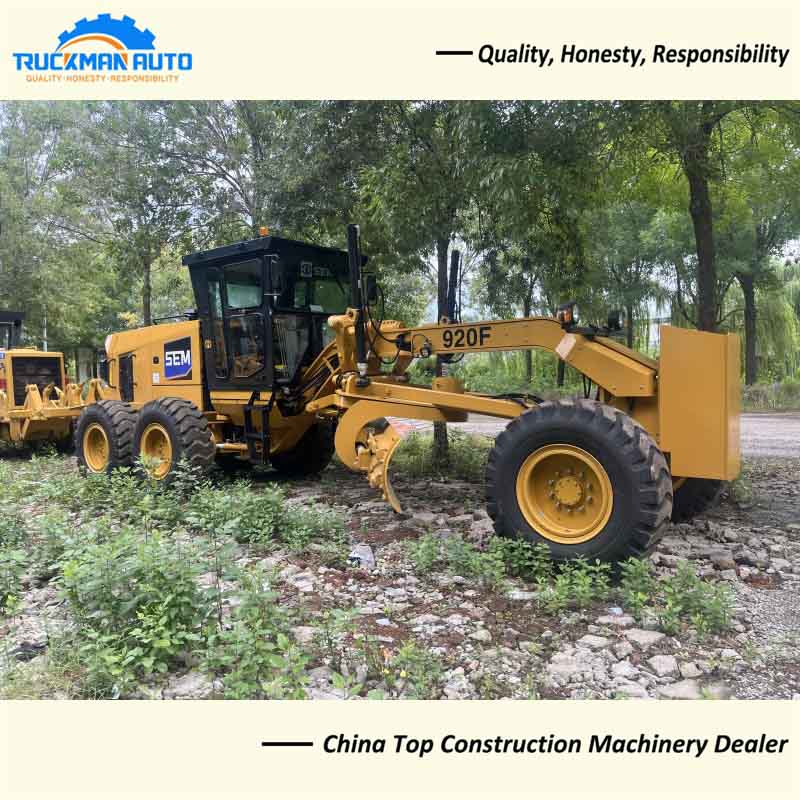

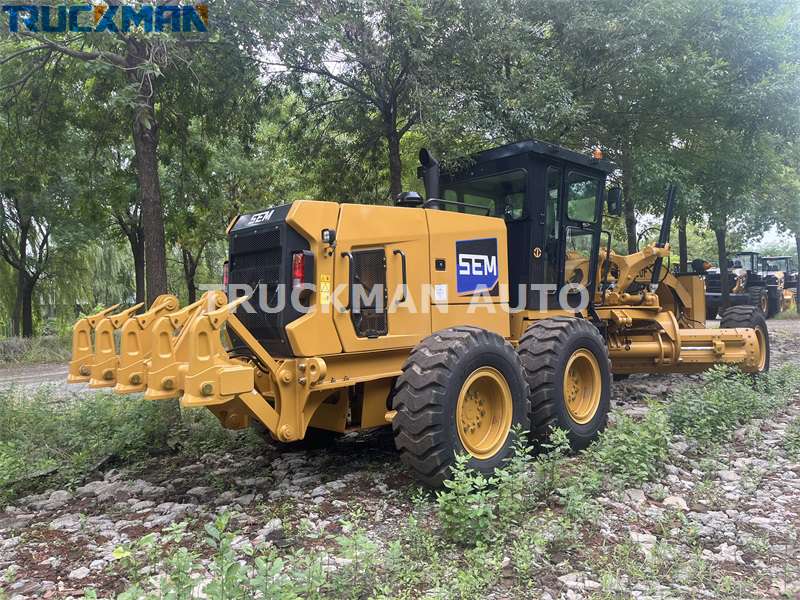

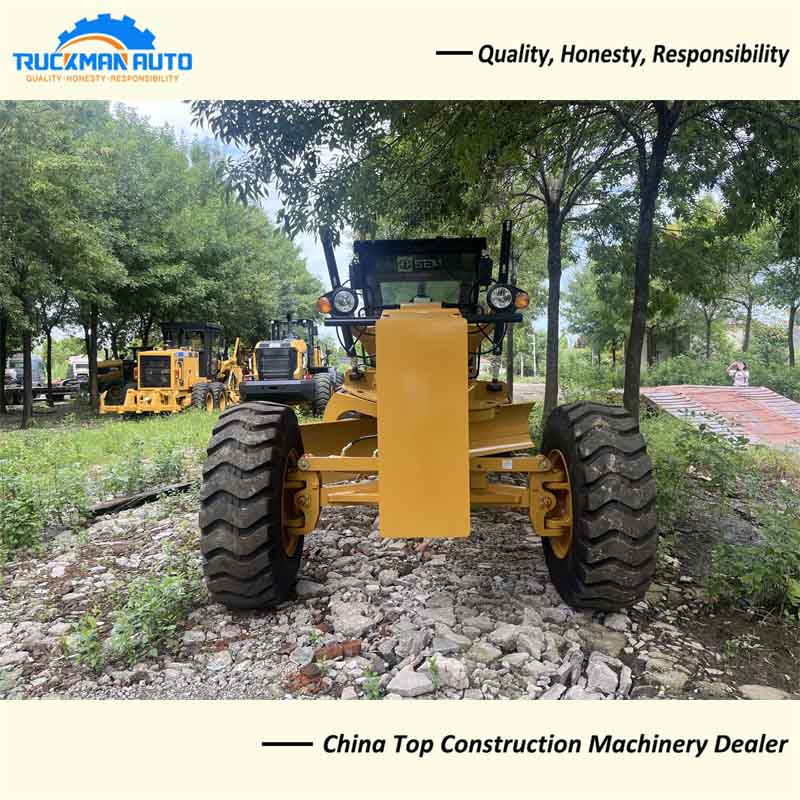

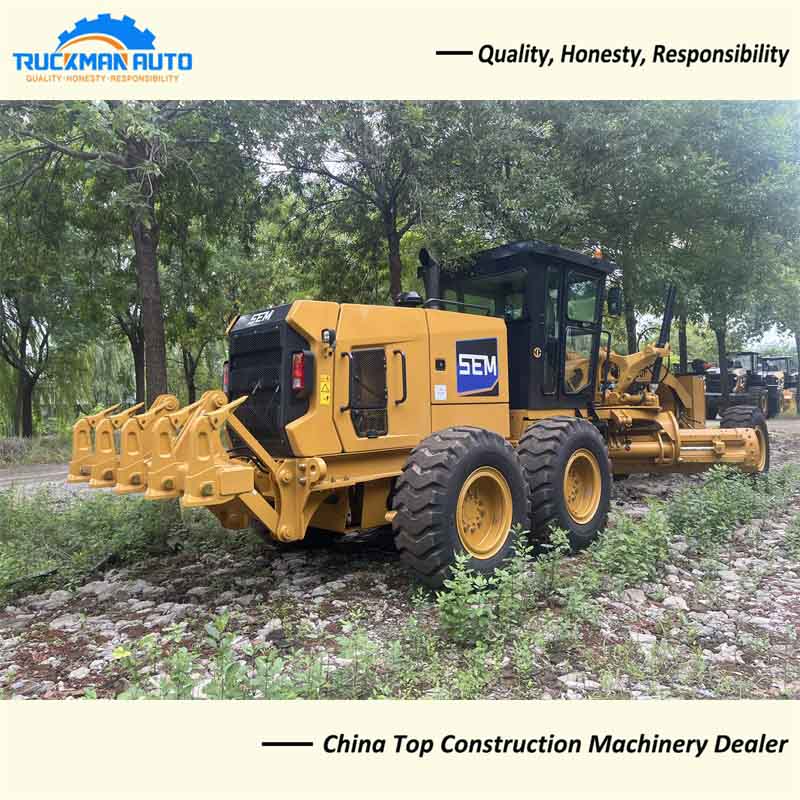

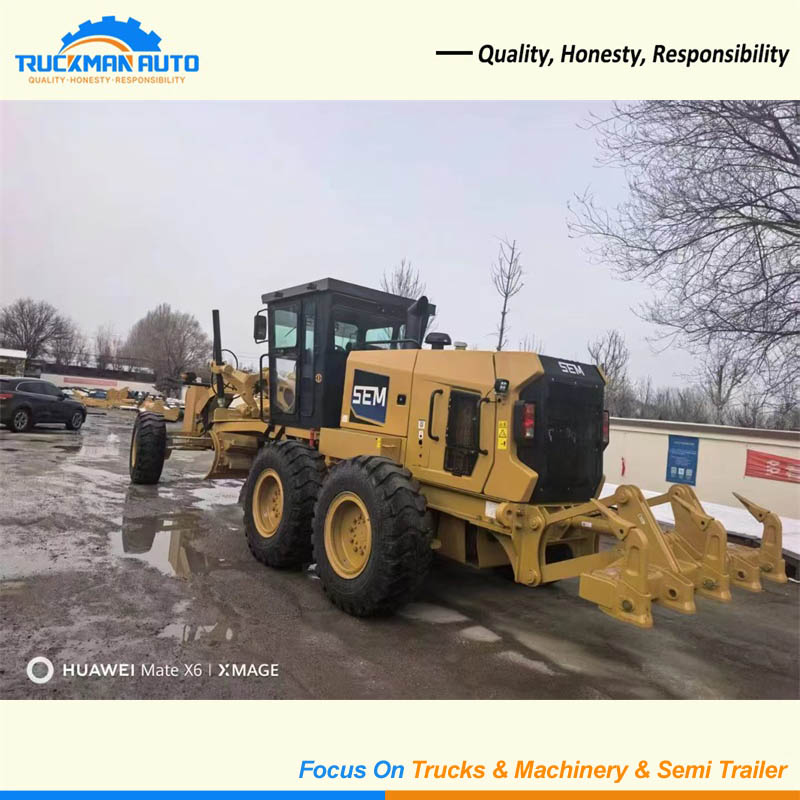

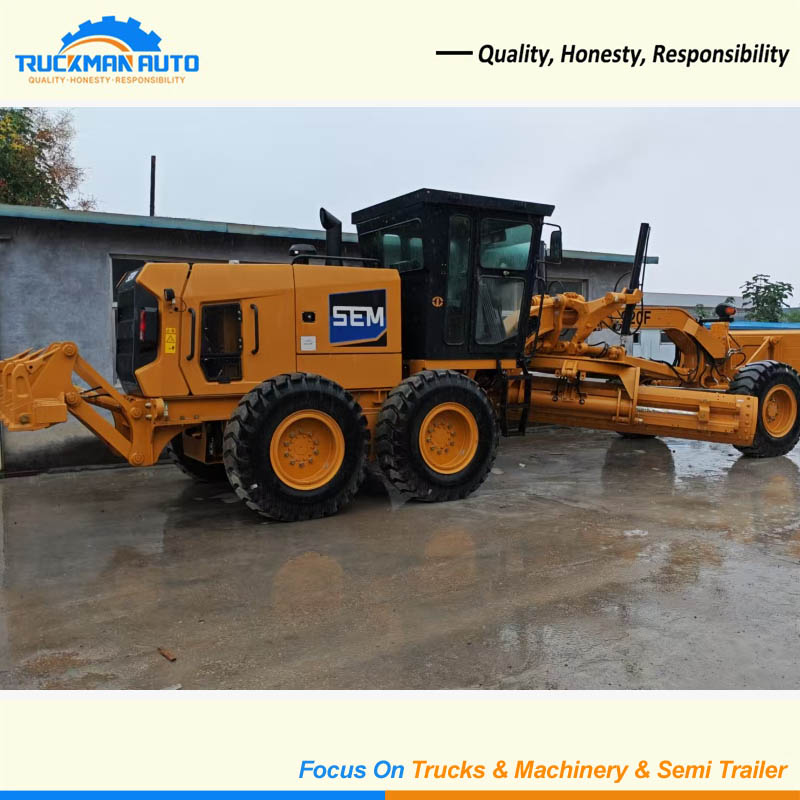

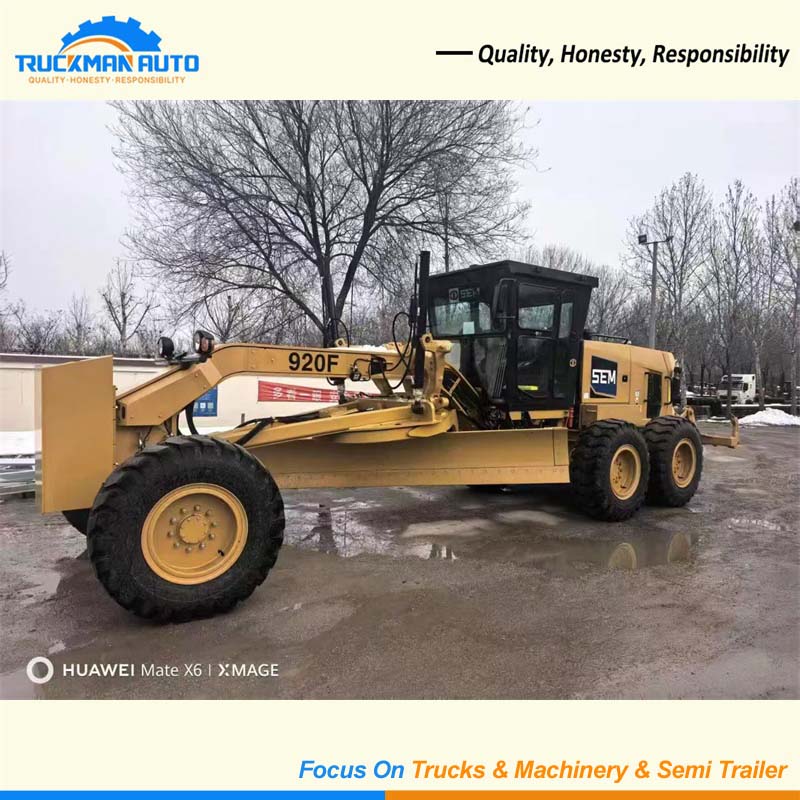

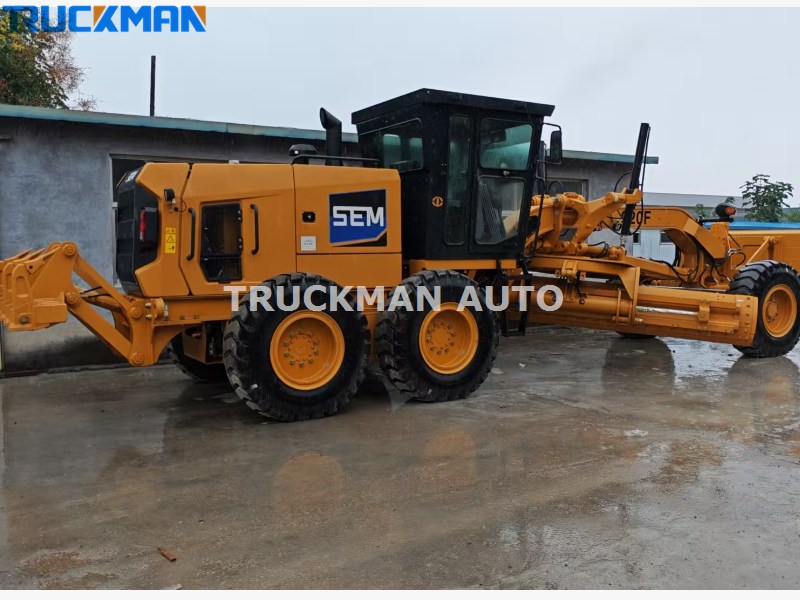

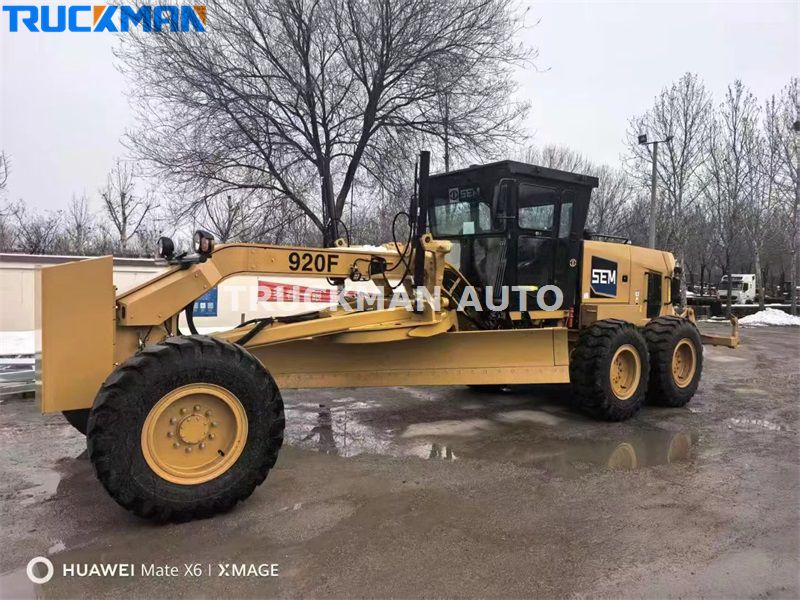

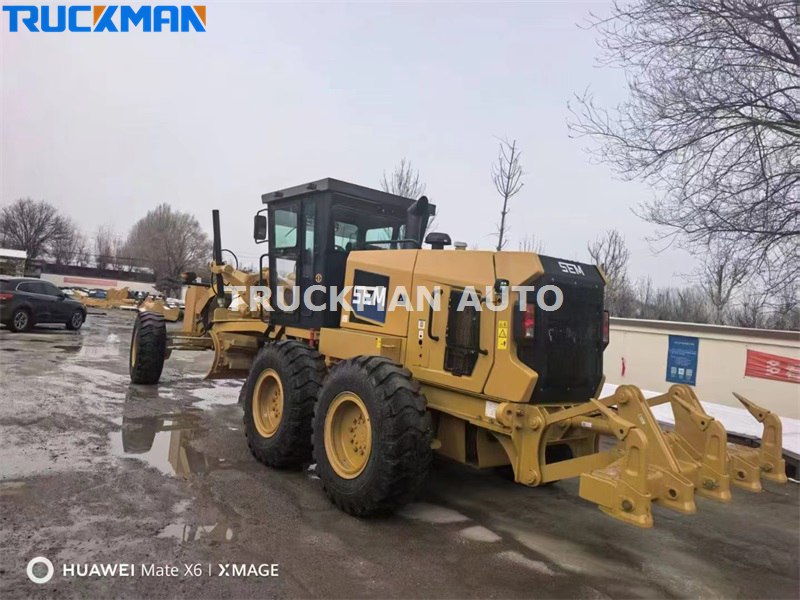

About New 200HP SEM 920F Motor Grader

The SEM motor grader supports multiple simultaneous motions and comes standard with a blade float function, reducing workload and increasing efficiency. The SEM motor grader utilizes a load-sensing hydraulic system with proportional-priority, pressure-compensated control valves for precise cylinder speed control, meeting the demands of fine-leveling applications.

New 200HP SEM 920F Motor Grader Specification

Model: 920F

Standard Weight(with ROPS): 15,735kg

Travel Speed (Forward/Reverse): 40/25km/h

Engine model: SC7H200.2G2

Net Power: 147 @2200/KW@RPM

Emission: Tier 2

Blade Width, STD: 3,974mm

Dimension: 11,100X2,630X3,140mm

Brand New SEM 920F motor grader specification only for your reference, we can manufacture other model motor grader basic your request.

New 200HP SEM 920F Motor Grader Cabin

The cab of the SEM 920F motor grader is located above the front frame, with a wide field of vision. It is equipped with a mechanical suspension seat, high-power air conditioning and a multi-function instrument panel, which provides users with relatively high operating comfort. The SEM 920F grader uses a hydraulically controlled seven-link linkage mechanism with one-touch pin replacement for easy blade angle adjustment; the Caterpillar-standard joystick layout requires minimal effort to operate, allowing multiple functions to be controlled with one hand.

New 200HP SEM 920F Motor Grader Maintenance And Repair

The SEM 920F grader uses a modular design with removable drawbar connecting ball joints and replaceable bushings on the seven-hole connecting rod, reducing maintenance costs. The SEM 920F grader's rear axle and sway box bearings use grease-free lubrication, and the chain requires no adjustment, extending maintenance intervals. The SEM 920F grader's front and rear wheel rims are interchangeable, and the radiator utilizes a suspended shock-absorbing pad for enhanced adaptability to harsh operating conditions.
