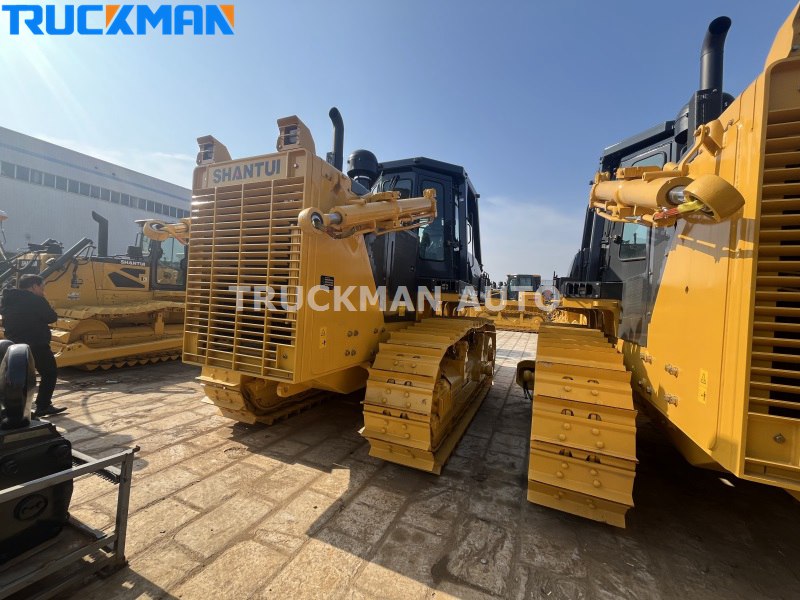

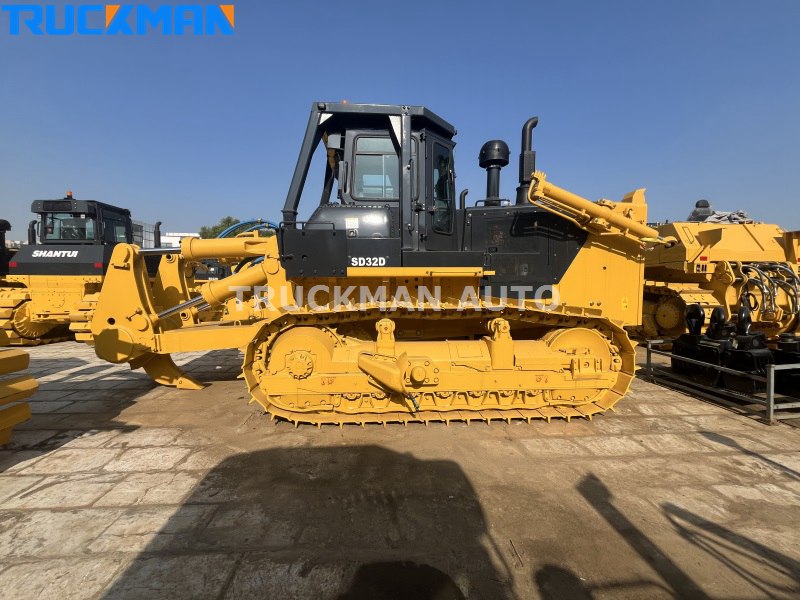

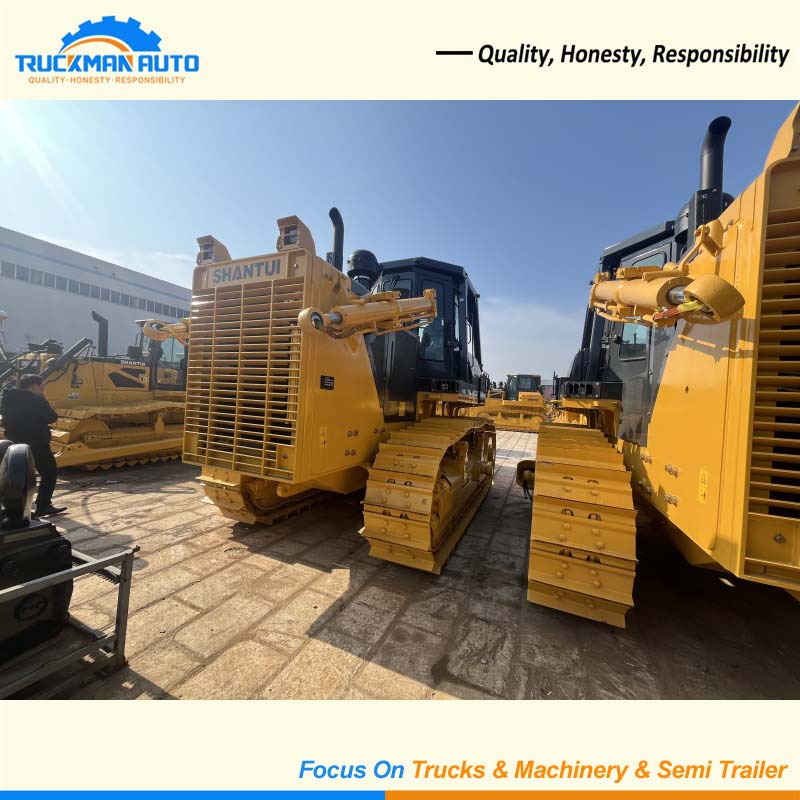

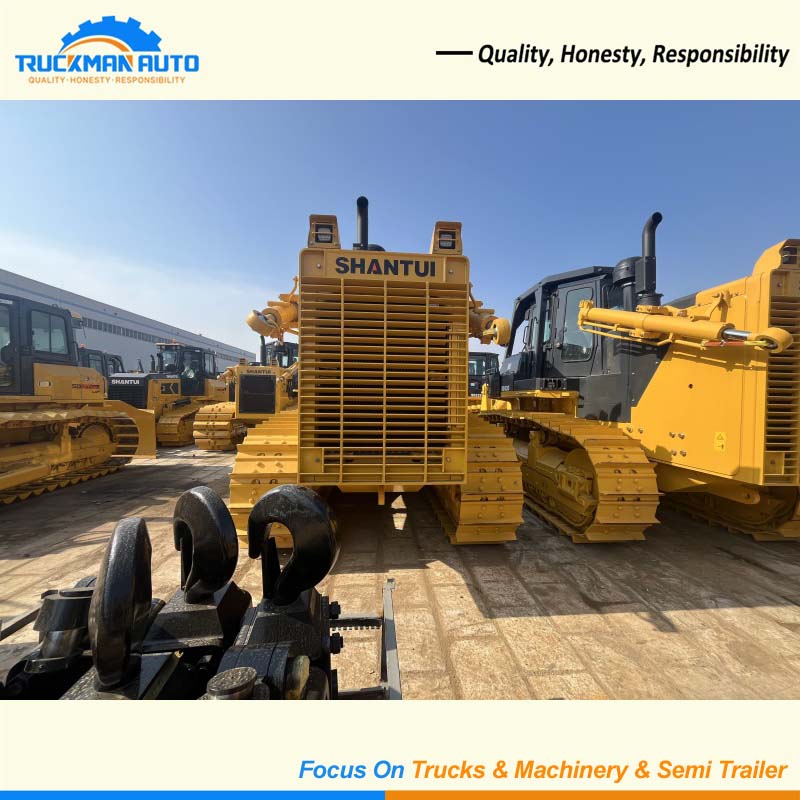

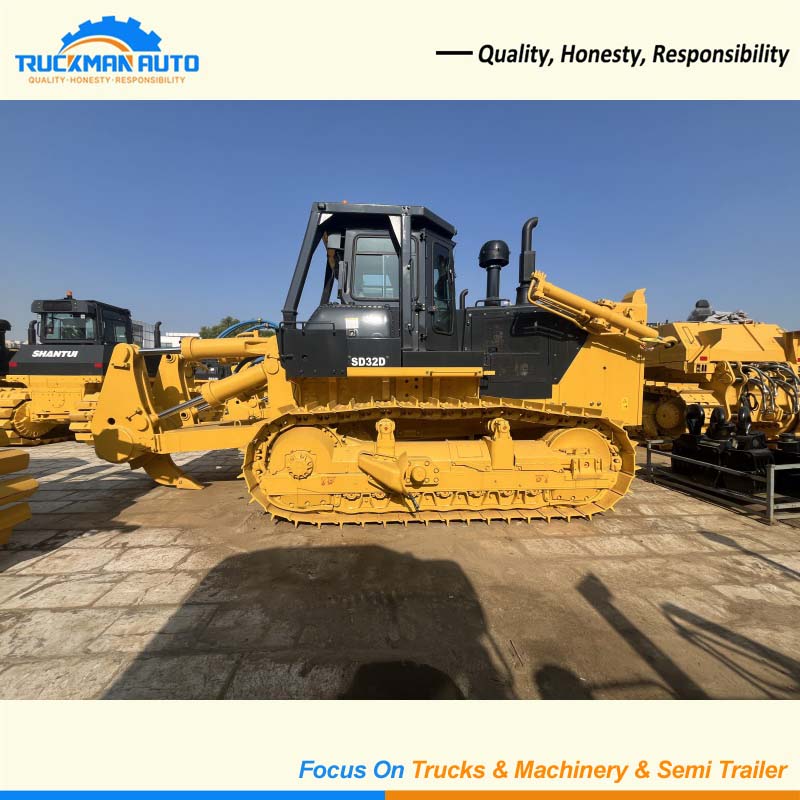

Heavy Duty SHANTUI SD32D 345HP 40 Tons Desert Version Bulldozer

About SHANTUI SD32D 345HP 40 Tons Desert Version Bulldozer

The SHANTUI bulldozer features a well-sealed cab that effectively reduces noise. An optional 4-point MDS vibration damping system can be installed, reducing driver noise to as low as 81 decibels. Furthermore, it comes standard with air conditioning for both heating and cooling, providing a comfortable driving environment. This bulldozer is primarily suitable for applications in water conservancy and hydropower, metallurgy and mining, road transportation, ports and docks, oil and coal, and logging. It is an indispensable piece of machinery for national defense projects, urban and rural road construction, and water conservancy projects.

SHANTUI SD32D 345HP 40 Tons Desert Version Bulldozer Specification

Product Name:SHANTUI SD32D 345HP 40 Tons Desert Version Bulldozer

Application: Road Construction

Operating Weight: 39500kg

Engine: QSNT-C345

Rated Power: 257kW

Fuel Tank: 640L

Track Center Distance: 2140mm

Dimension: 8650x4130x3760mm

SHANTUI SD32D 345HP 40 Tons Desert Version Bulldozer only for your reference, we can manufacture other Bulldozer basic your request.

SHANTUI SD32D 345HP 40 Tons Desert Version Bulldozer Shovel

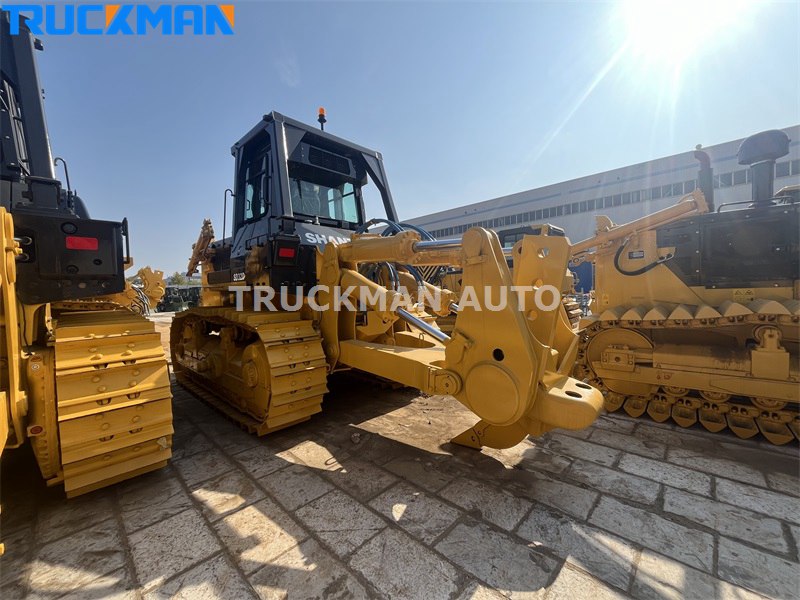

The SHANTUI SD32D bulldozer is equipped with a large-capacity semi-U-shovel, suitable for transporting large volumes of materials. Its optimized curved blade curvature provides a blade capacity of up to 10m³, resulting in better soil turning and greater cutting force. When paired with a single-tooth or triple-tooth ripper, it efficiently completes shoveling and transport operations, significantly improving productivity. The blade and ripper are pilot-operated via PPC, allowing for more effortless, flexible, and precise adjustments to lifting, tilting, entry angle, and loosening depth. The large single-tooth ripper, with an adjustable entry angle, can be used to loosen clay, frozen soil, and other soil layers, and can also be used to strip harder surfaces such as gravel and compacted salt mines.

SHANTUI SD32D 345HP 40 Tons Desert Version Bulldozer Core Advantages

The SHANTUI 345HP bulldozer's power, transmission, and chassis systems all employ a modular design, with each module independently assembled, suitable for assembly schedules and easy to control in terms of cleanliness. Modular buffer installations block vibration transmission, improving reliability and comfort. The planetary reduction modular final drive is compact, has a high speed ratio, and is easy to disassemble and assemble. The X-type suspension track rollers are always in contact with the track tracks, increasing the track contact area and enhancing traction on complex road surfaces. Rubber shock absorbers reduce the rigid impact of the ground on the entire machine, improving component durability and driving comfort.
