Brand New XCMG XS37 37 Meters 4x2 Concrete Pump Truck

About XCMG XS37 37 Meters 4x2 Concrete Pump Truck

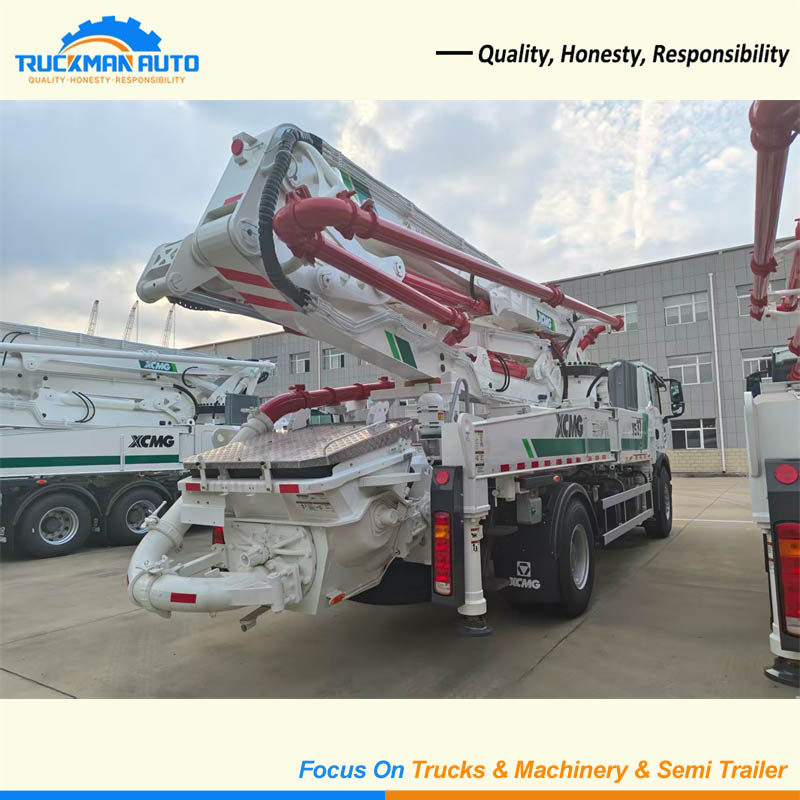

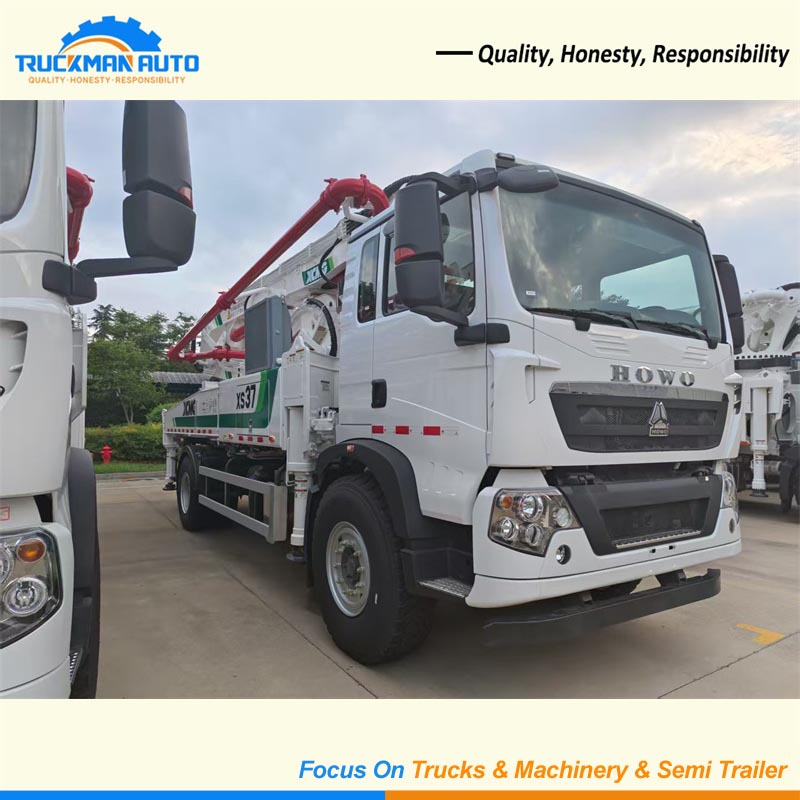

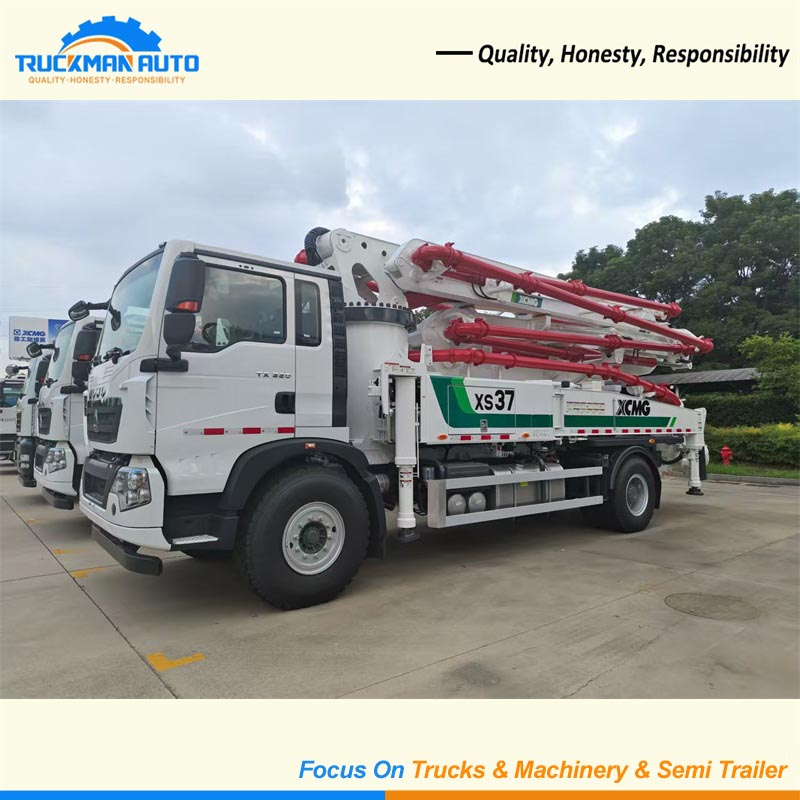

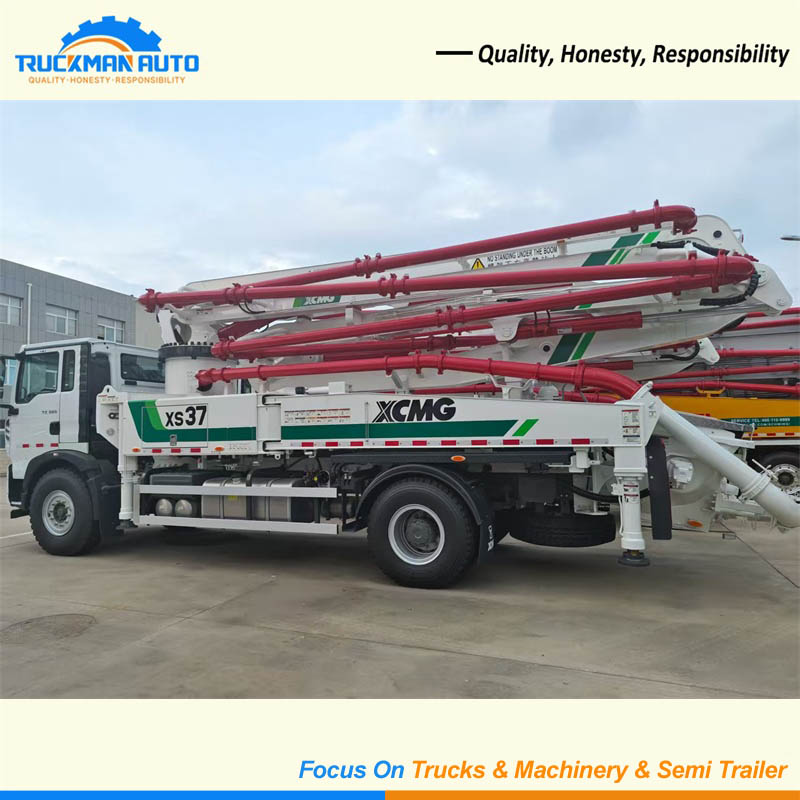

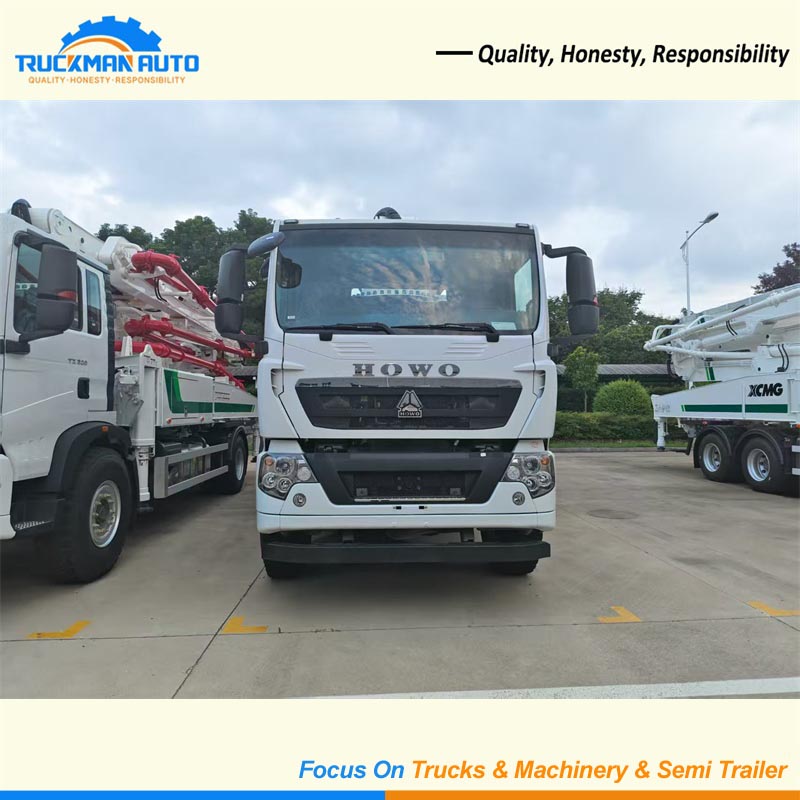

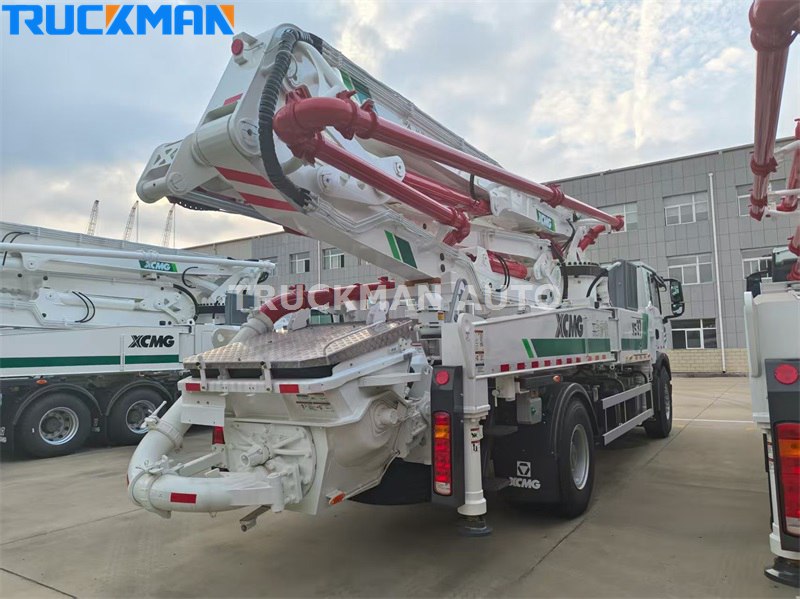

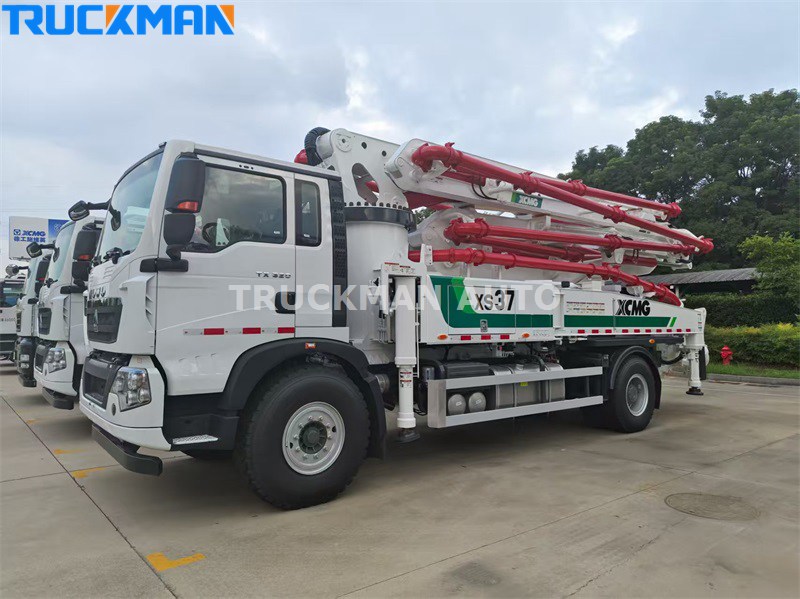

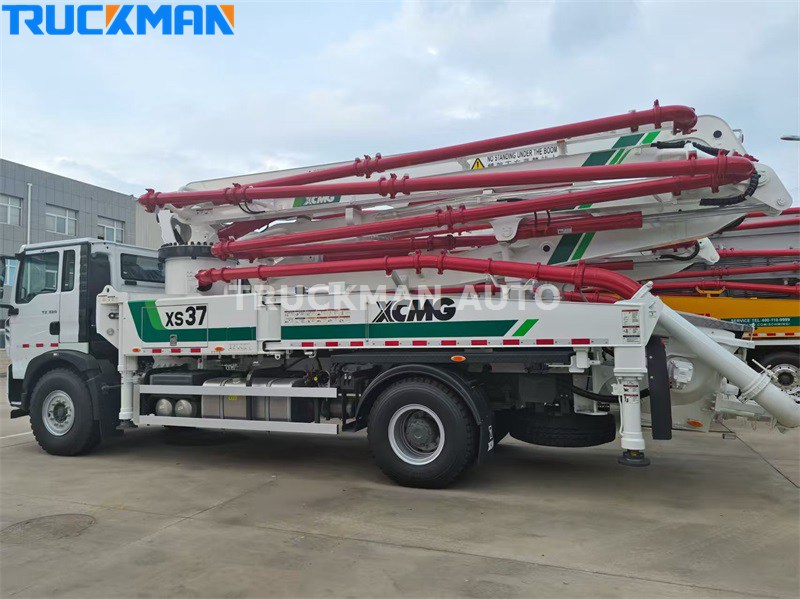

The concrete pump truck integrates a pumping system for pumping concrete and a boom system for distributing concrete onto a truck chassis. The pumping system utilizes the chassis engine to pressurize concrete from the hopper and feed it into a pipe attached to the boom. The operator controls the boom's movement to deliver the concrete to a desired height and distance. The pump truck utilizes a SINOTRUK chassis, ensuring superior safety and reliability.The pump truck features first-stage X-shaped telescopic outriggers, resulting in a footprint 5% smaller than comparable models. The five-section boom is maneuverable, with a minimum boom height of approximately 6.4 meters during operation, enabling flexible layout and efficient operation even in space-constrained workshops.

XCMG XS37 37 Meters 4x2 Concrete Pump Truck Specification

Product Name: XCMG XS37 37 Meters 4x2 Concrete Pump Truck

Application: Constructions works

Cabin: With one bed, A/C

Gearbox: 10 forward and 2 reverse gear

Tire: 315/80R22.5, 6+1 pcs

Fuel Tank: 400L

Placing Boom Reach height: 37m

Theoretical Output : 120 m³/h

Filling Height: 1540m

XCMG XS37 37 Meters 4x2 Concrete Pump Truck only for your reference, we can manufacture other concrete pump truck basic your request.

XCMG XS37 37 Meters 4x2 Concrete Pump Truck Structural Composition

This concrete pump truck consists of five components: boom, pumping system, hydraulic system, support system, and electronic control system. A concrete pump truck is modified from a truck chassis, equipped with motion and power transmission devices, pumping and mixing devices, a distribution device, and other auxiliary devices. The concrete pump truck's power is transmitted through the power transfer case from the engine to the hydraulic pump unit or rear axle. The hydraulic pump pushes the piston, driving the concrete pump. The concrete is then delivered to a specific height and distance using the truck's distribution boom and delivery pipe.

XCMG XS37 37 Meters 4x2 Concrete Pump Truck Maintenance Method

1.During daily use, ensure that all pump truck components are lubricated promptly and thoroughly.

2. Select the specified hydraulic oil and replace the hydraulic system oil regularly.

3. Regularly inspect the water tank, concrete cylinder, and concrete delivery pipe in the pumping system.

4. Regularly inspect and adjust the boom, swivel base, outriggers, support structure, speed reducer, and other components.

5. Regularly check the operating condition of the hydraulic system and components, as well as the electrical system and components.
