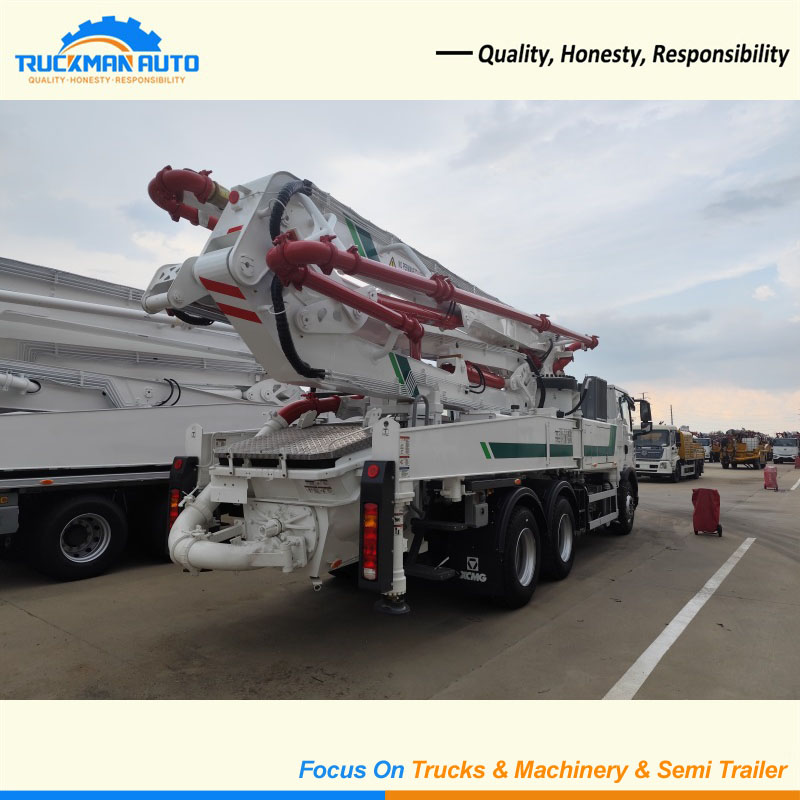

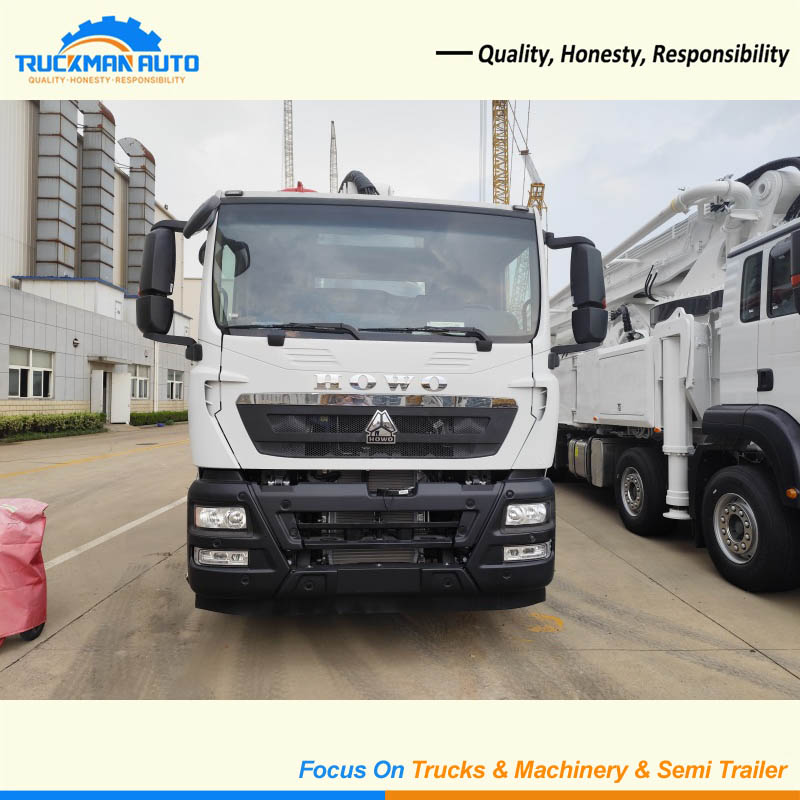

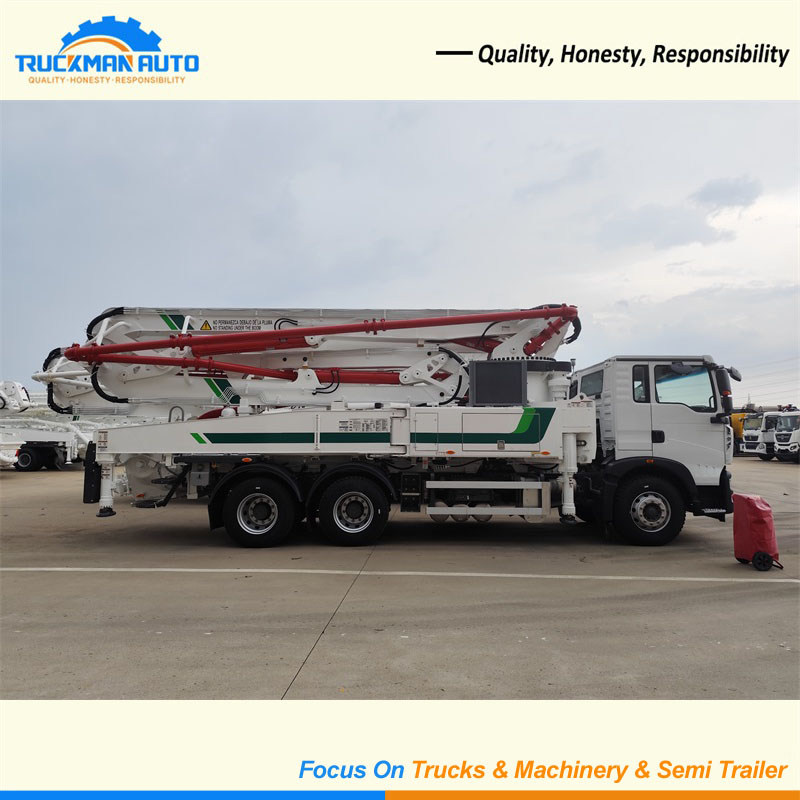

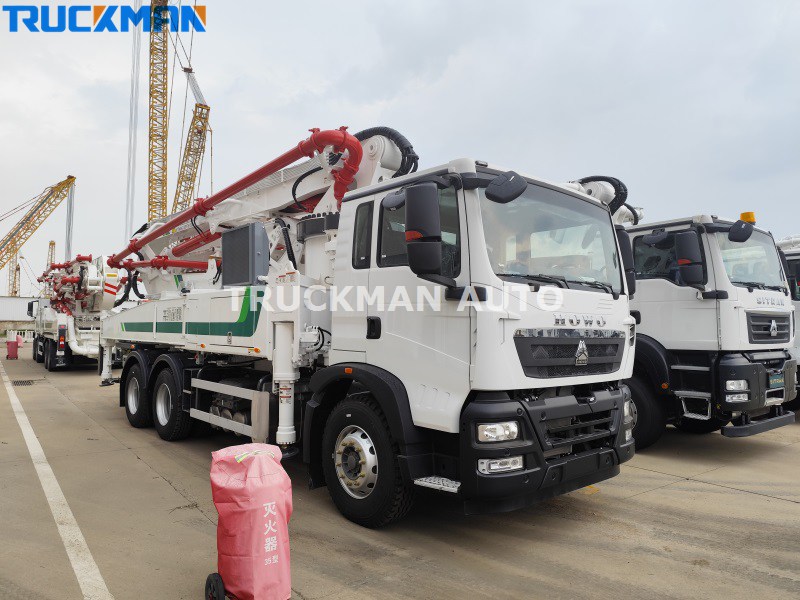

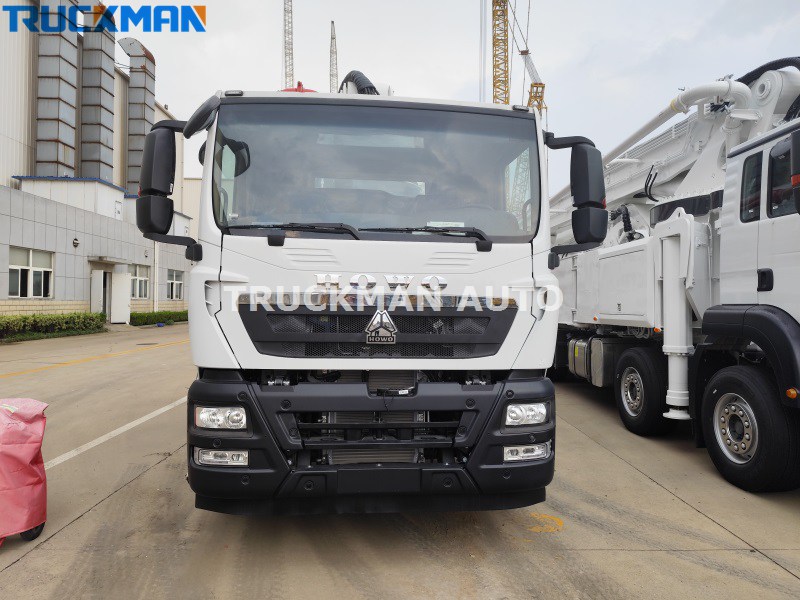

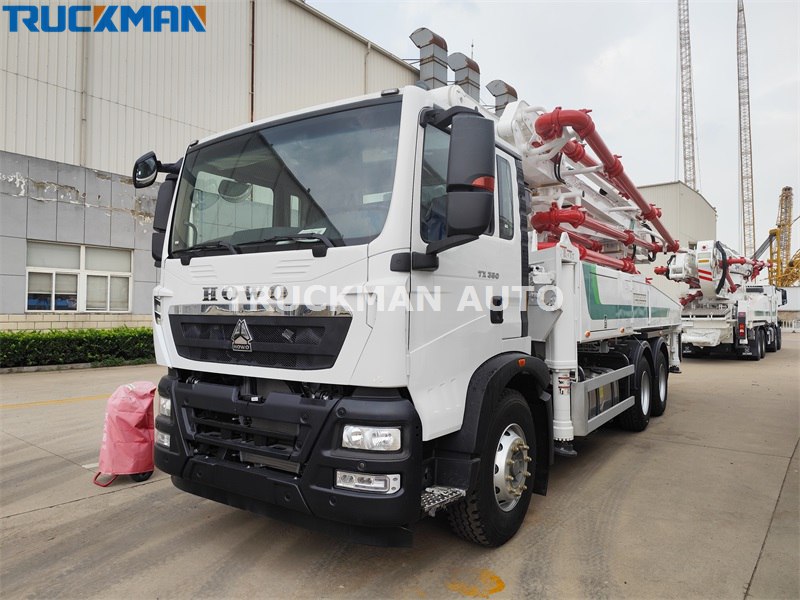

37m SINOTRUK HOWO TX 6X4 XCMG SCHWING XS37 Concrete Pump Truck

About 37m SINOTRUK HOWO TX 6X4 XCMG SCHWING XS37 Concrete Pump Truck

The HOWO 37m pump truck adopts the HOWO TX 6X4 chassis and is equipped with a MAN MC series engine with large displacement, strong torque, a wide economic speed range, and excellent fuel economy. It is matched with the manual transmission independently developed by SINOTRUK, which has smooth shifting and high transmission efficiency, and is suitable for various road conditions and transportation scenarios.

37m SINOTRUK HOWO TX 6X4 XCMG SCHWING XS37 Concrete Pump Truck Specification

Engine: MC07H.35-50, 257kw, Euro 2

Cabin: TX-F,with one bed, A/C

Pumping System Theoretical Output (L/H): 120m³/h

Pumping System Concrete Pumping Pressure (L/H): 8MPa

Placing Boom Reach Height : 37m

Placing Boom Reach Depth: 24.9m

Placing Boom Slewing Radius: 32.5m

37m SINOTRUK HOWO TX 6X4 XCMG SCHWING XS37 Concrete Pump Truck specification only for your reference, we can manufacture other model truck basic your request.

37m SINOTRUK HOWO TX 6X4 XCMG SCHWING XS37 Concrete Pump Truck

The XCMG SCHWING pump truck uses a large-displacement delivery system, achieving a theoretical pumping speed of up to 120 cubic meters per hour, meeting the demands of large-scale concrete construction. Pumping capacity automatically matches engine power, with adaptive adjustments during operation, reducing fuel consumption by approximately 10%, achieving both economical efficiency and reliability. The XCMG SCHWING XS37 pump truck is equipped with a wireless remote control, one-button start system for easy operation and improved construction efficiency.

37m SINOTRUK HOWO TX 6X4 XCMG SCHWING XS37 Concrete Pump Truck Advantage

The XCMG concrete pump truck uses a highly flexible and precise boom system, enabling accurate concrete placement at various angles, which significantly improves construction efficiency, especially for high-rise buildings and complex structures. Equipped with patented main valve technology, the hydraulic system of the XCMG concrete pump truck offers fast response, stable operation, and adaptability to harsh working conditions, ensuring reliable pumping performance and minimizing the risk of malfunctions.
