Different Excavator Bucket For Different Work

Whether in town construction, water conservancy projects, or mining operations and other working conditions, excavators are widely used in which a variety of working conditions. In the face of different working conditions, will also choose different attachments to improve the efficiency of the work, such as buckets, crackers, crushing hammers, hydraulic tongs, wood grabbers, etc., choose the right attachments in order to more efficiently complete the requirements of different working conditions. We have seen many excavator buckets, but according to different working conditions, the buckets are different. Below are the pictures of various excavator buckets and suitable working conditions for your reference.

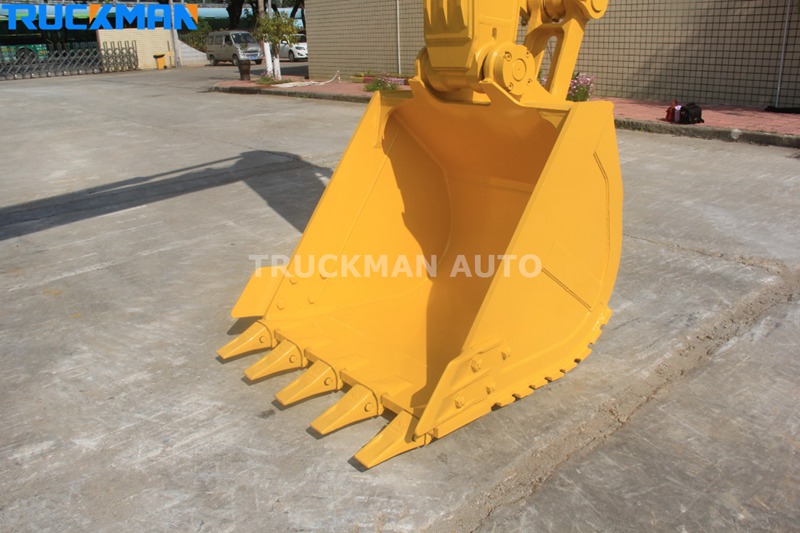

1. Earthmoving Bucket



Earthmoving bucket is the most common bucket in our daily life, which is considered the standard equipment of small and medium-sized excavators. Standard buckets usually use standard plate thickness, and there is no obvious design on the bucket body to play a reinforcing role.



a. The advantages are: larger bucket opening area, larger bucket capacity, higher filling factor, high working efficiency, lower cost of standard bucket production. It is generally suitable for lighter work environments such as excavation of clay and loading of sand, earth and gravel.



b. The disadvantage is: because the thickness of the plate belongs to the standard version and does not have no reinforcement, anti-abrasion design, easy to damage, shorter life.

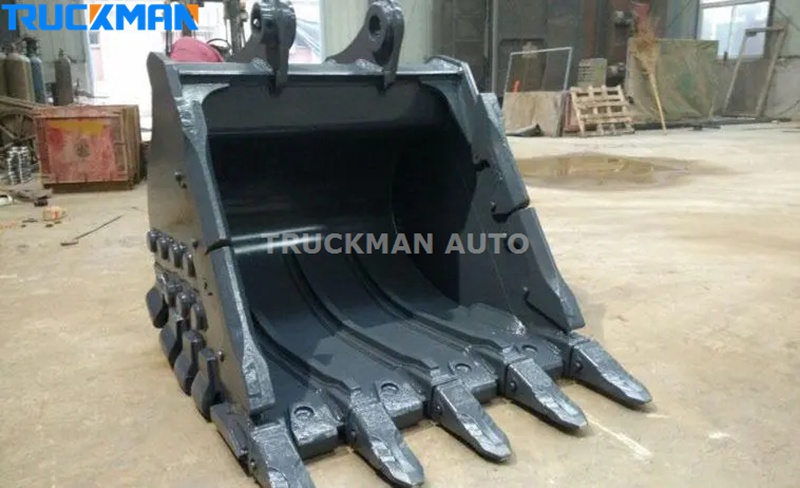

2. Rock Bucket



The shape of rock bucket is very similar to the common bucket, different from the common bucket, the rock bucket is made of thickened plate, the teeth, the fins, the sides of the teeth and the bottom of the bucket are all reinforced, in addition, the rock bucket has increased the side guards, installed the protection plate, and the bucket teeth are made of special materials for the rock. The unique protection and reinforcement of the rock bucket makes it have strong anti-wear, pressure and bending resistance. It is suitable for loading rocks, weathered rocks, hard rocks, blasting ore and other heavy work environment. Widely used in ore mining and other harsh working conditions.

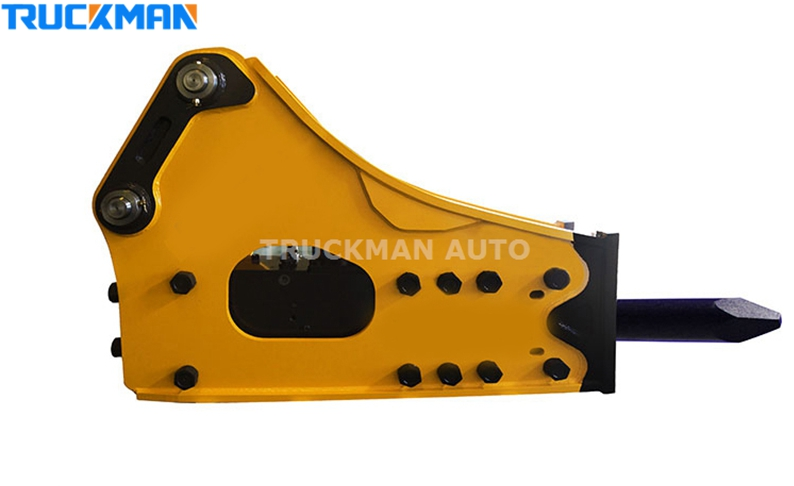

3. Crushing Hammer



A crushing hammer is a tool used to break concrete, rocks and other hard objects, usually mounted on an excavator for use. Crushing hammers can quickly and efficiently crush concrete buildings, large rocks and other hard objects, providing great convenience for subsequent demolition, construction sites to open up roads and other projects.

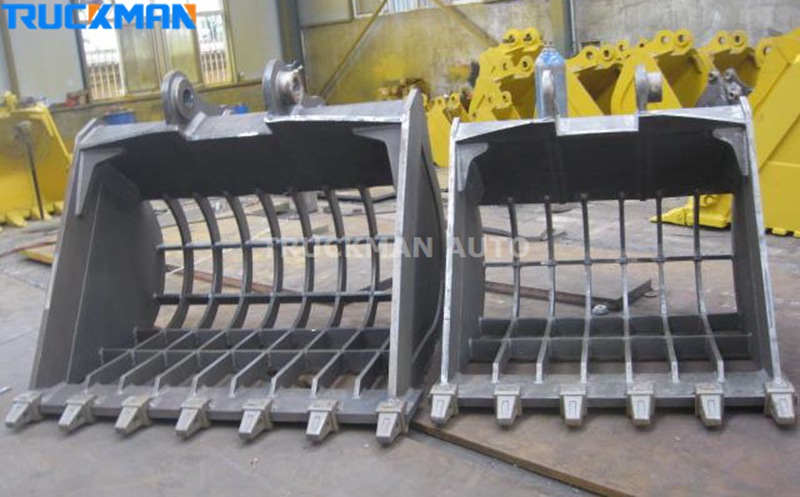

4. Grid Bucket



The bottom of the grating bucket is lattice mesh, suitable for separating the softer excavated materials, digging and separating at once. It is widely used in municipal, agriculture, forestry, water conservancy, earthmoving projects and so on. It is very suitable for dredging of rivers and ditches.

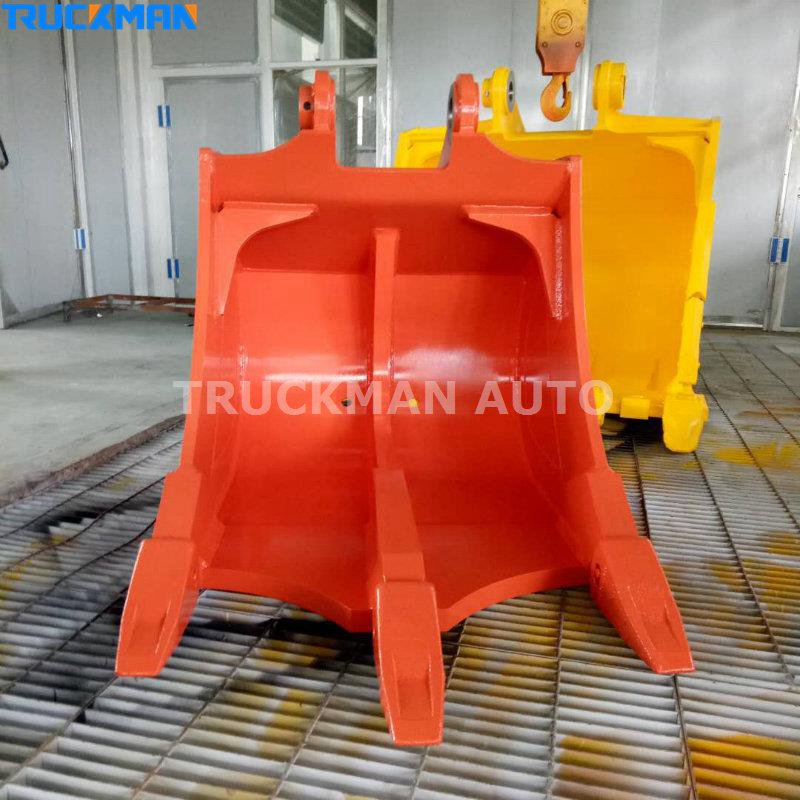

5. Plow Bucket



In order to meet the high intensity of excavation work, the plow bucket is equipped with high-strength loosening tines, so that loosening and digging can be completed in a single pass, resulting in high operational efficiency. Mainly used for crushing, digging and loading of hard soil, sub-hard rock, weathered rock, etc. Generally, it has single or multiple teeth, and the teeth are sharp and easy to break the soil. The disadvantage is that the bucket capacity is relatively small.
