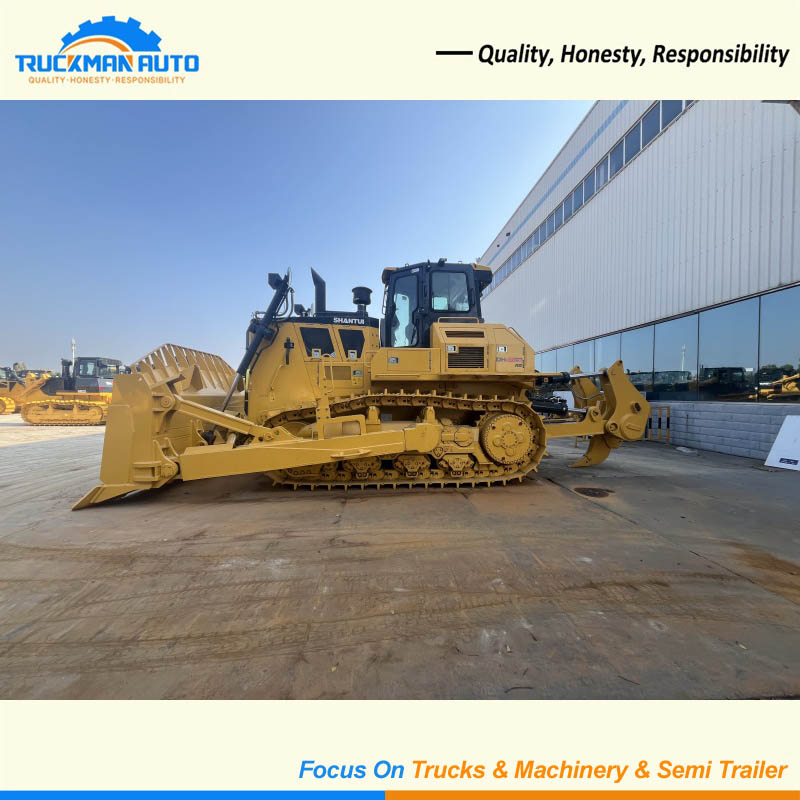

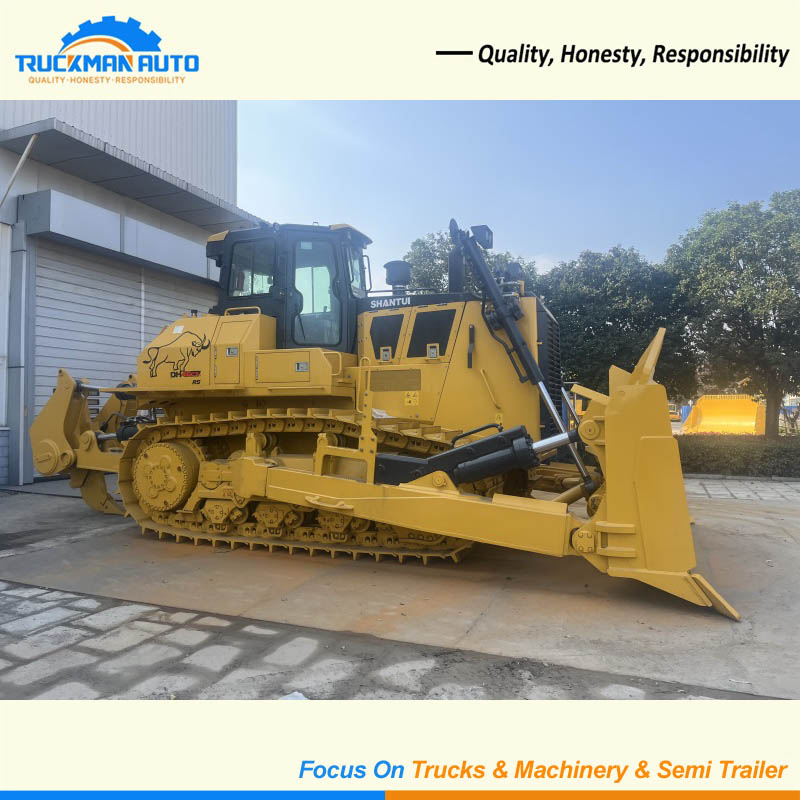

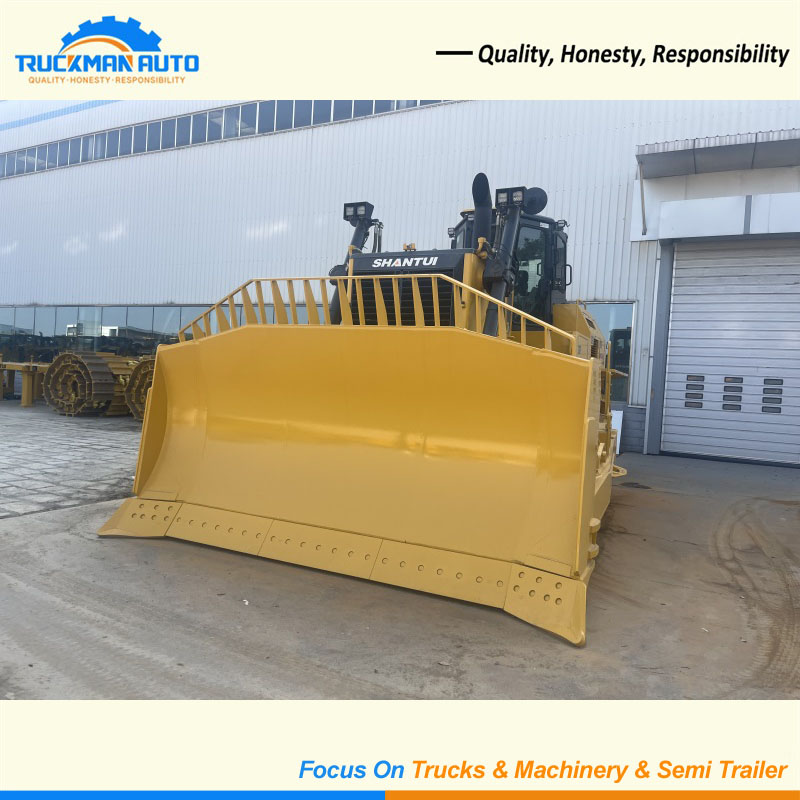

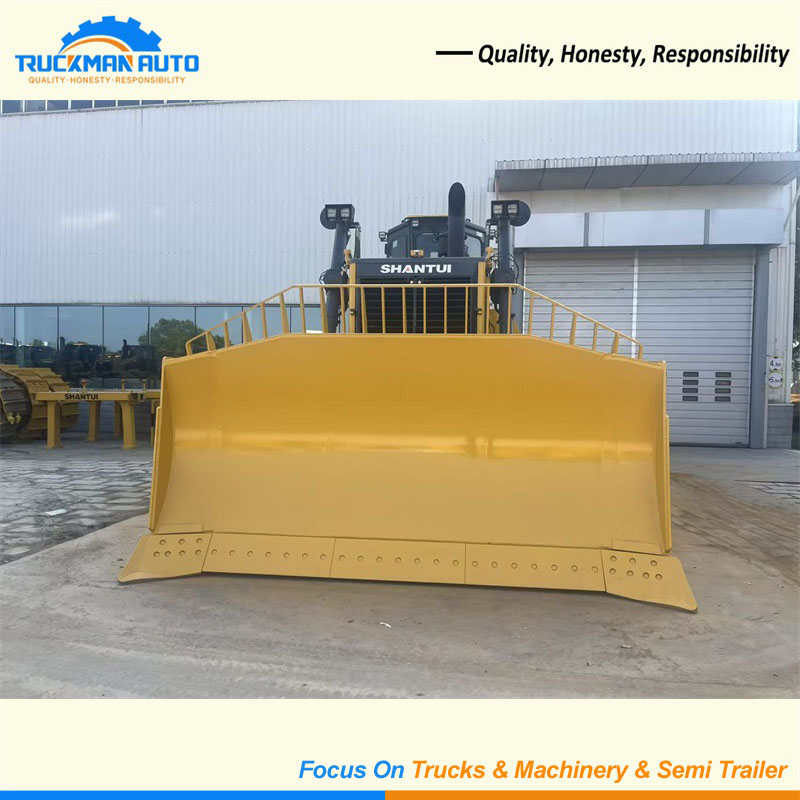

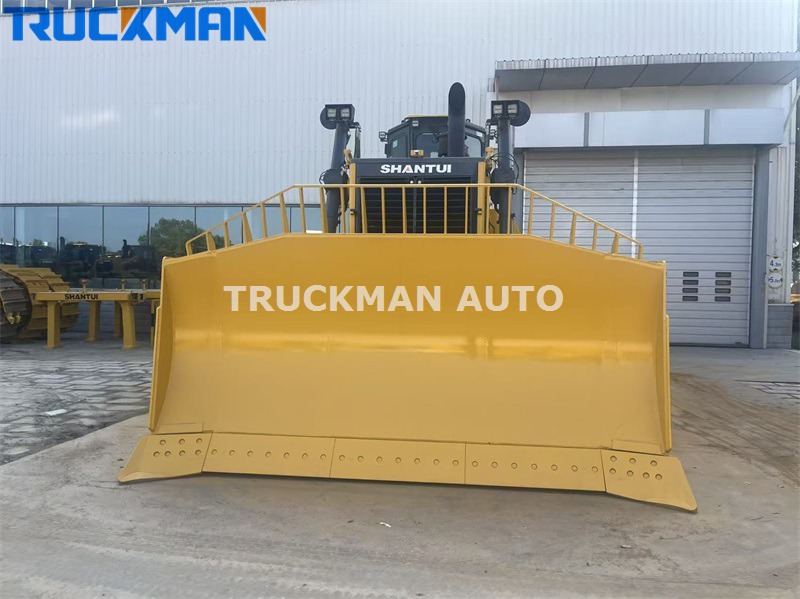

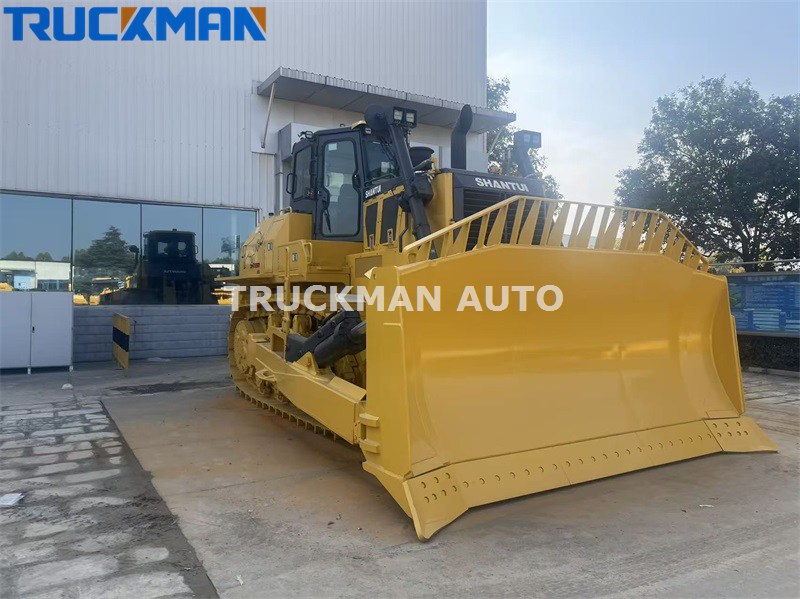

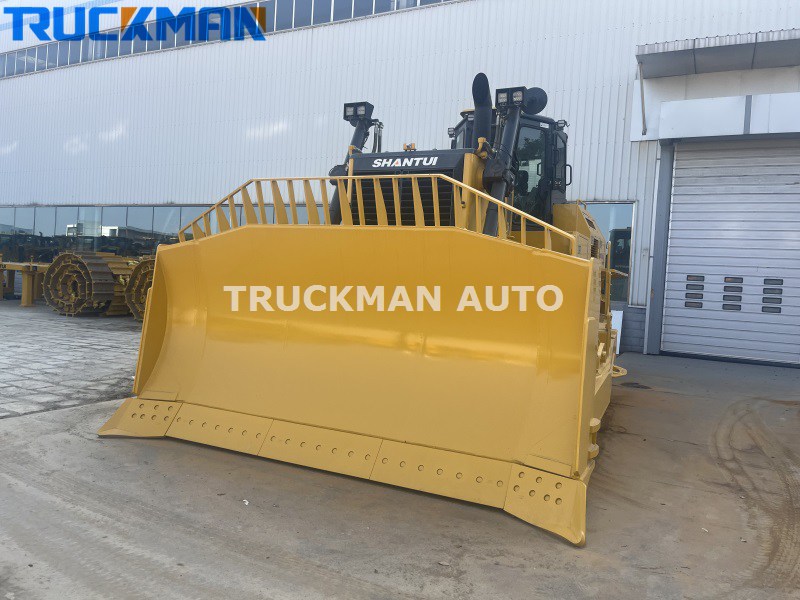

SHANTUI SD16 180HP Tracked Bulldozer For Earthwork

About SHANTUI SD16 180HP Tracked Bulldozer

The SHANTUI SD16 bulldozer is widely used in highway, railway, mining, and water conservancy projects, serving as a highly efficient earthmoving machine. The SHANTUI SD16 bulldozer offers a variety of working attachments for users to choose from, including a tilting blade, angle blade, U-blade, and three-tooth ripper. It also offers optional features such as heating and air conditioning to enhance operator comfort. Furthermore, users can opt for a rollover protection frame to prevent injuries to operators from falling objects or vehicle rollovers.

SHANTUI SD16 180HP Tracked Bulldozer Specification

Model: SD16

Engeine: 131/1850kW/rpm

Applicable Industries: Manufacturing Plant, Farms, Home Use, Construction works

Operate Weight: 16400kg

Trcack Center Distance: 1880mm

Fuel Tank: 315L

Blade Capacity: 3.2/4.8m3

Dimension: 5140×3455×3032mm

SHANTUI SD16 180HP Tracked Bulldozer specification only for your reference, we can manufacture other model  bulldozer basic your request.

SHANTUI SD16 180HP Tracked Bulldozer Engine

The SHANTUI 180HP bulldozer uses a WEICHAI WP10 series engine with a rated power of up to 120kW and a large torque reserve coefficient, providing ample power to meet the needs of pushing, excavating, and other operations under complex working conditions. This engine features optimized combustion efficiency, low fuel consumption, and excellent economy, reducing operating costs. Some versions meet the China III emission standards, balancing environmental protection and performance.

SHANTUI SD16 180HP Tracked Bulldozer Transmission System

The SHANTUI SD16 tracked bulldozer employs planetary power shift technology combined with a forced-lubrication gearbox to ensure efficient and smooth power transmission while reducing mechanical wear and extending the life of the drivetrain. The hydraulic power steering system further reduces the operator's workload and improves ease of handling. The SHANTUI bulldozer is equipped with a three-element, single-stage, single-phase torque converter, which is simple and reliable in structure and can automatically adapt to different operating conditions.
