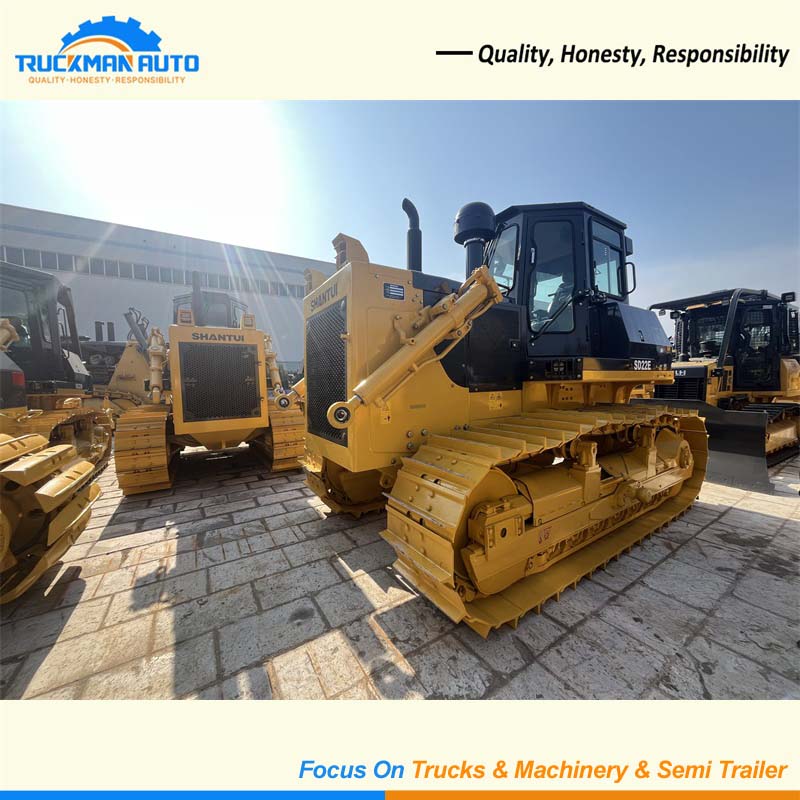

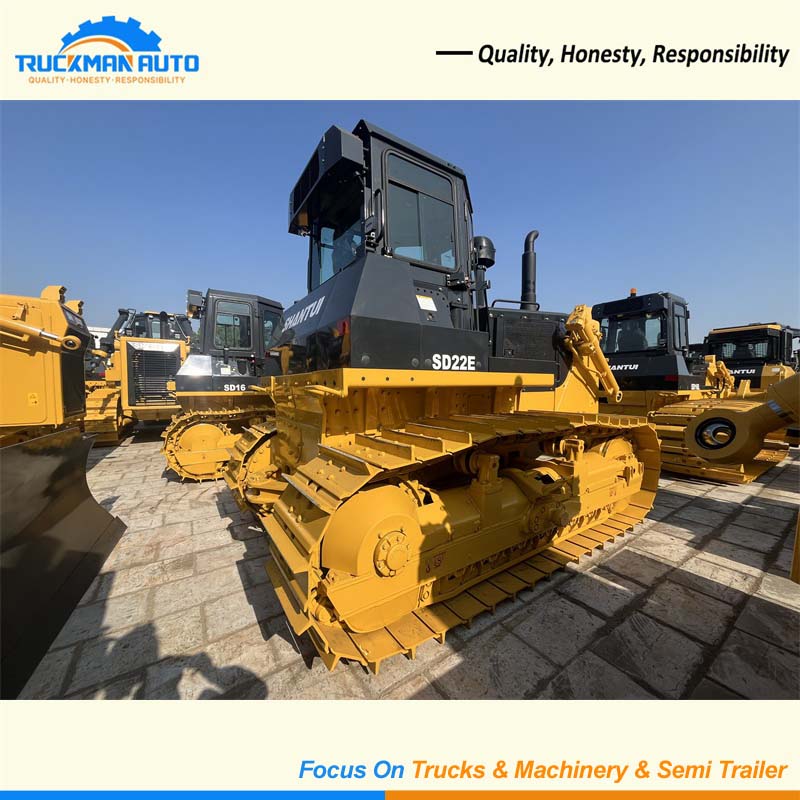

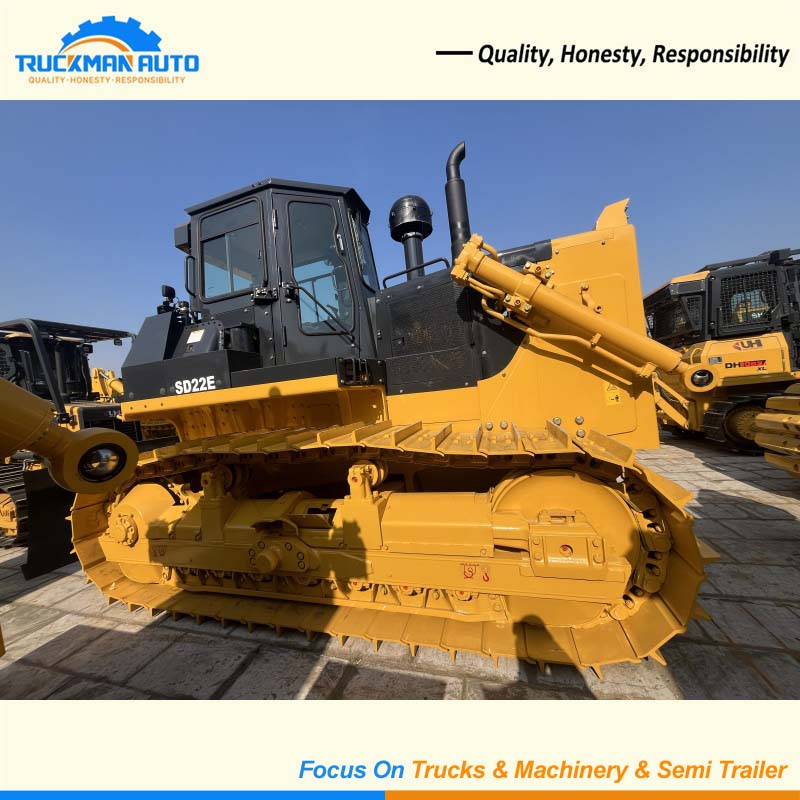

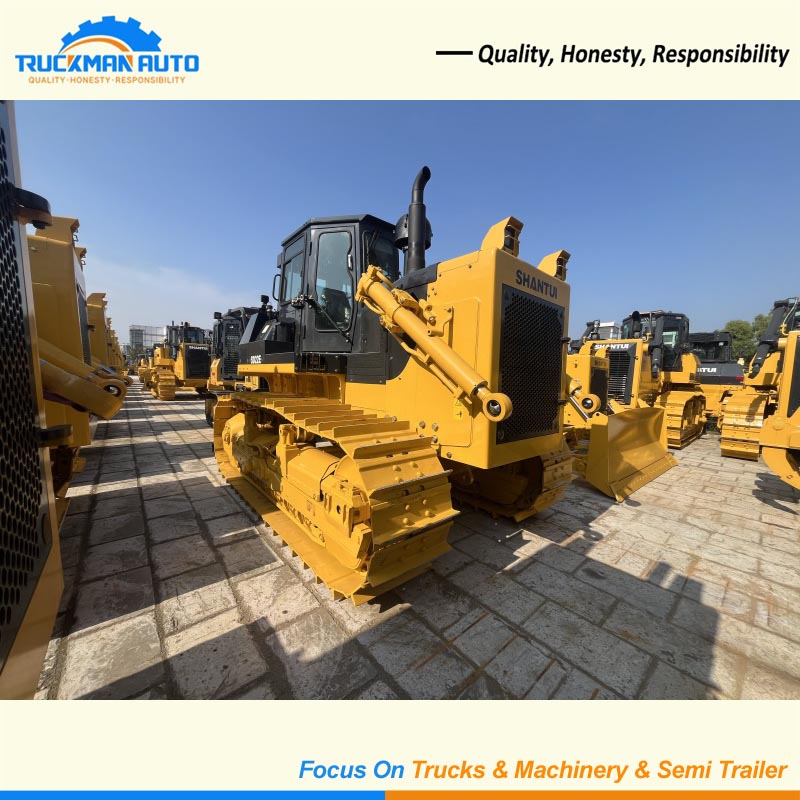

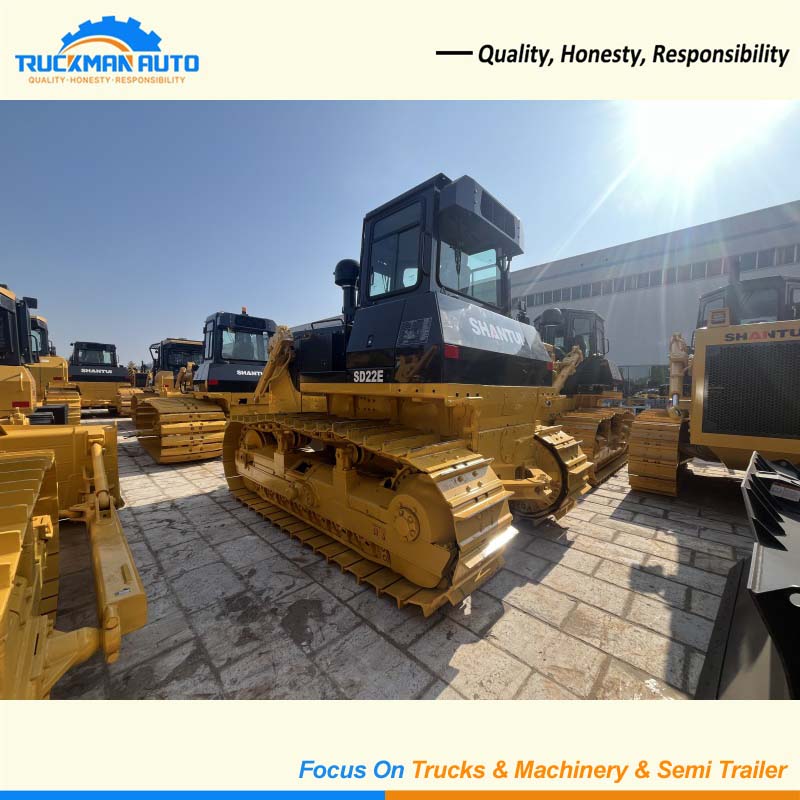

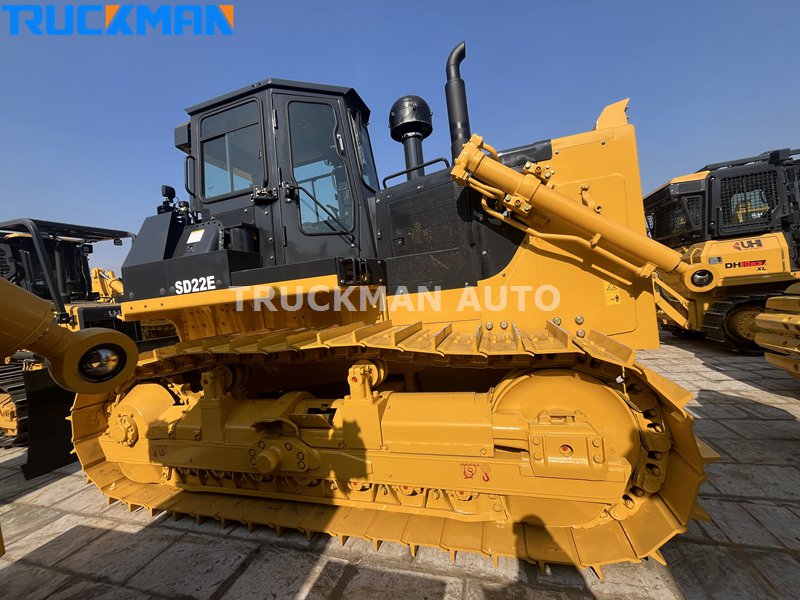

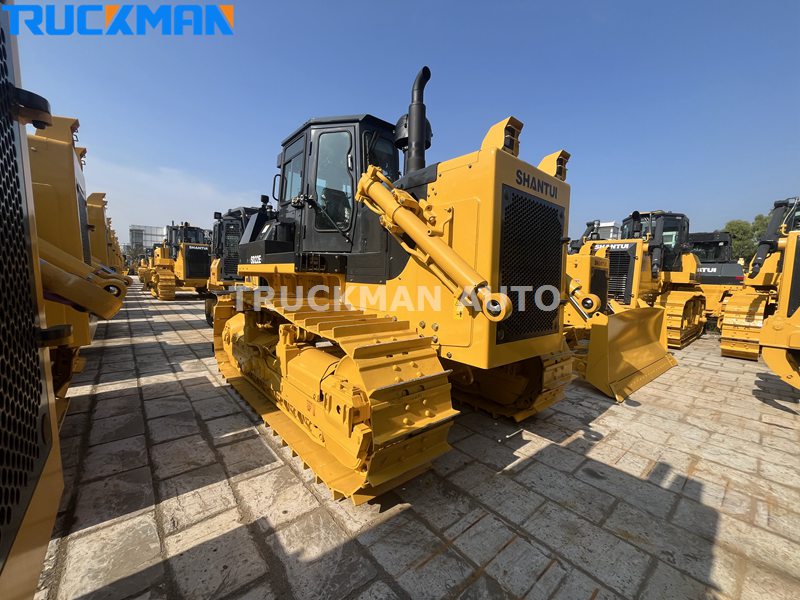

SHANTUI SD22E Extended Version 235HP 24 Tons Bulldozer For Honduras

About SHANTUI SD22E Extended Version 235HP 24 Tons Bulldozer

The SHANTUI bulldozer utilizes a stable and reliable Shantui chassis system, suitable for various harsh working conditions. The electrical wiring harness is protected by corrugated conduit and divided by a junction box, providing a high level of protection. All lubrication and maintenance points have been moved to the outside of the machine body for convenient and quick maintenance. Depending on specific working conditions, it can be equipped with various attachments such as a tilting shovel, semi-U-shovel, U-shovel, angle shovel, coal pusher, rock shovel, sanitation shovel, ripper, and drawbar, enhancing its operational adaptability. Optional LED work lights further improve nighttime illumination, ensuring greater safety and reliability.

SHANTUI SD22E Extended Version 235HP 24 Tons Bulldozer Specification

Product Name:SHANTUI SD22E Extended Version 235HP 24 Tons Bulldozer

Application: Road Construction

Operating Weight: 24600kg

Engine: QSNT-C235

Rated Power: 175kW

Fuel Tank: 450L

Track Center Distance: 2000mm

Dimension: 5495x3725x3402mm

SHANTUI SD22E Extended Version 235HP 24 Tons Bulldozer only for your reference, we can manufacture other Bulldozer basic your request.

SHANTUI SD22E Extended Version 235HP 24 Tons Bulldozer Cabin

The hexagonal cab boasts a spacious interior and excellent visibility, and can be configured with FOPS/ROPS as needed, ensuring safety and reliability. Ergonomically designed, the driver's seat and armrests offer convenient height, reclining, and forward/backward adjustments. The gearshift, steering, and throttle controls are located on the left side using a flexible shaft structure, while the work device controls are on the right side using a servo control system, making operation easier, more flexible, and reducing fatigue. Equipped with an intelligent display and control terminal, air conditioning, and other features, it provides a richer and more user-friendly driving experience, allowing the driver to monitor system status at any time, offering intelligent and convenient operation.

SHANTUI SD22E Extended Version 235HP 24 Tons Bulldozer Technical Features

The SHANTUI SD22E bulldozer engine boasts powerful performance and high energy efficiency. Its highly reliable power shift gearbox, stable hydraulic torque converter, and two-stage spur gear final drive all contribute to efficient power transmission, resulting in high power output and high production efficiency. It features automatic fault diagnosis and continuous monitoring. The integrated cast-molded instrument panel combines air conditioning, electrical components, and instruments, offering a more aesthetically pleasing and upscale appearance. The fully enclosed main frame utilizes high-performance materials and high-strength castings, providing excellent impact load capacity and resistance to bending and torsion. High-quality welds ensure the main frame's long service life.
