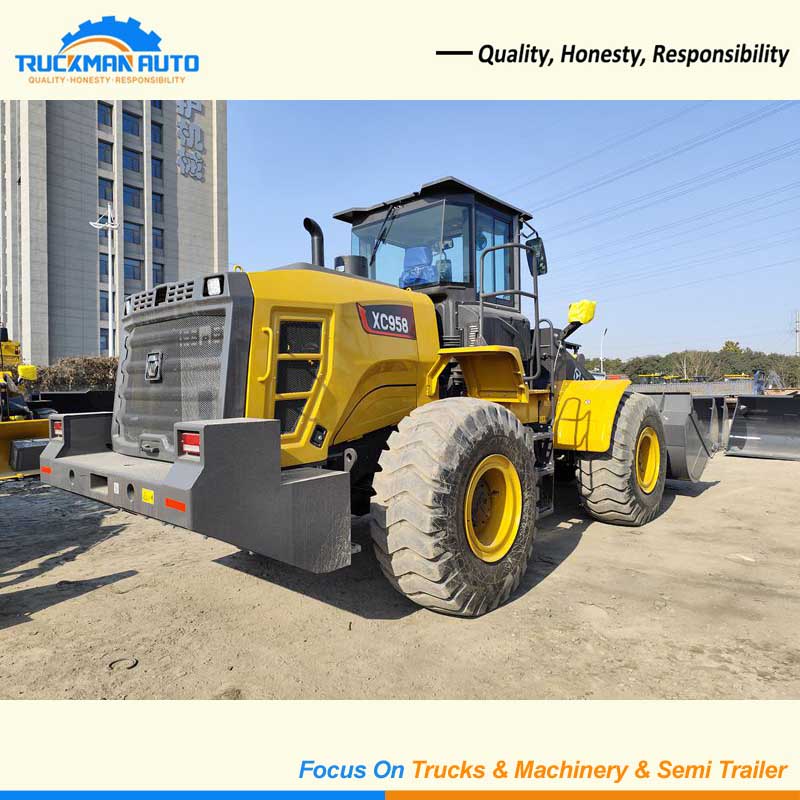

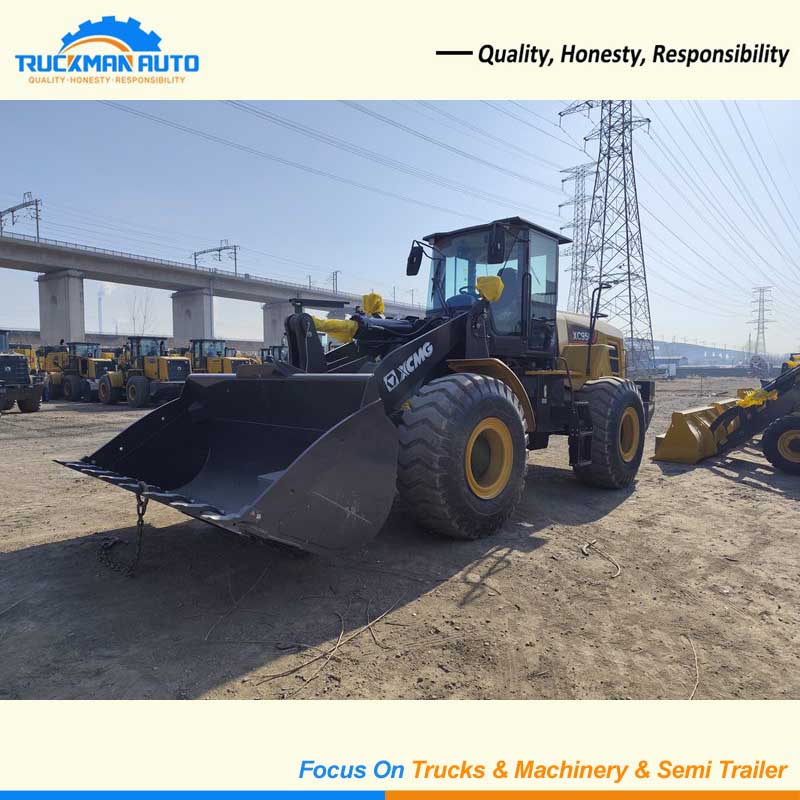

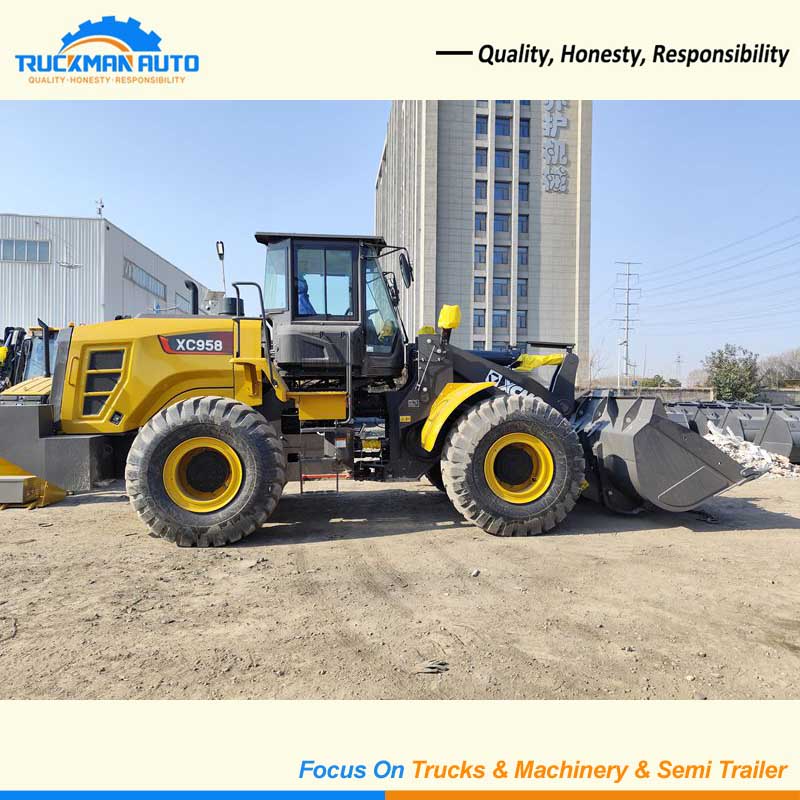

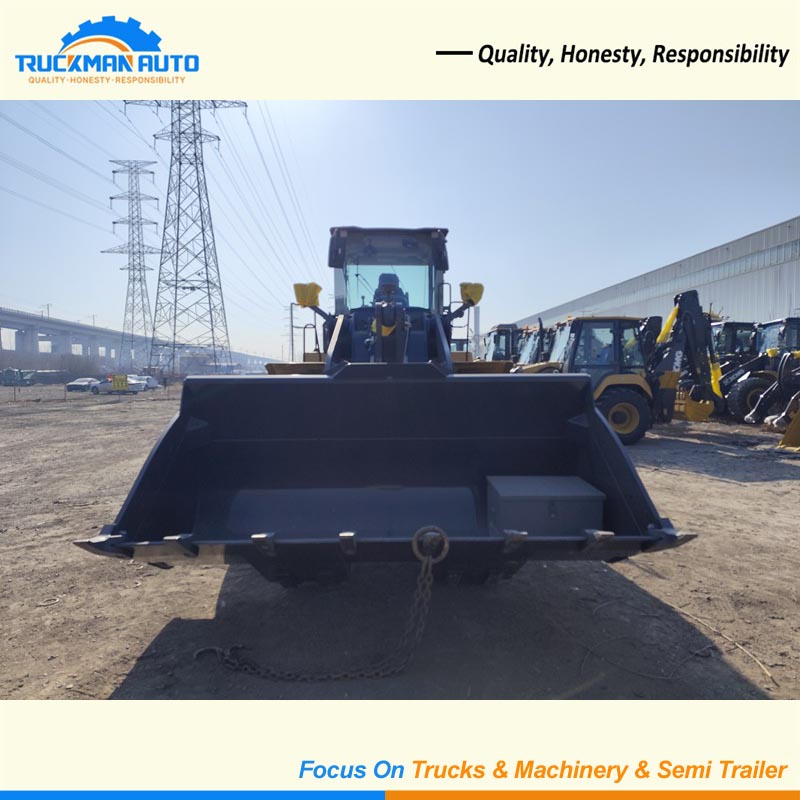

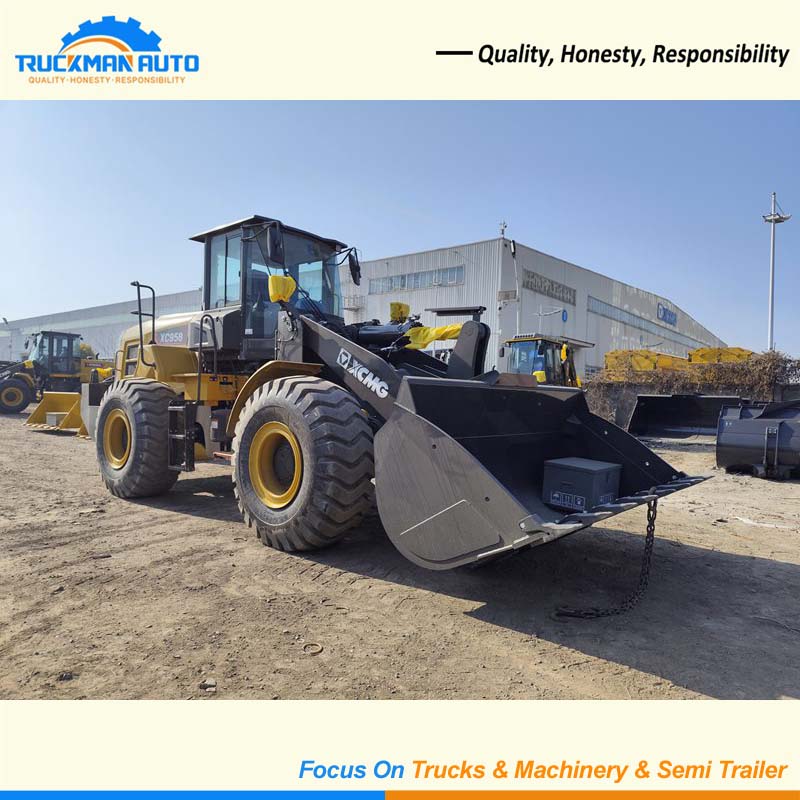

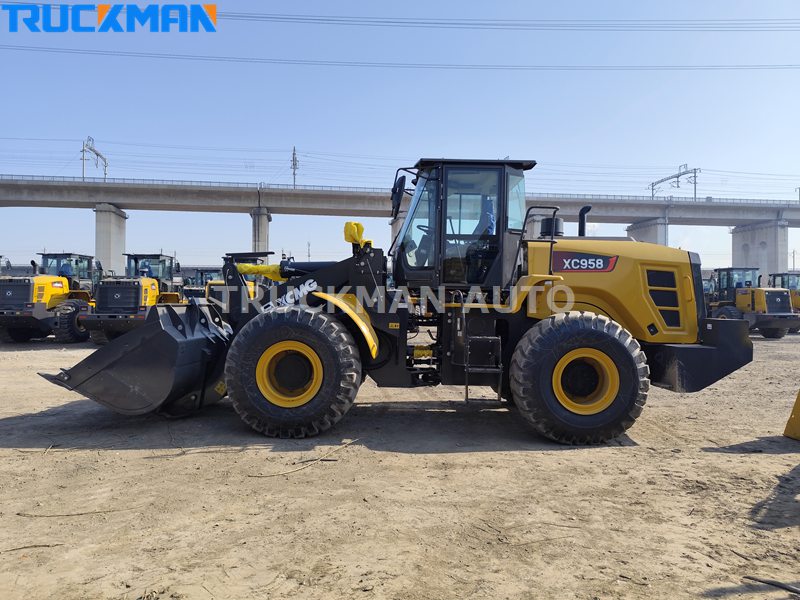

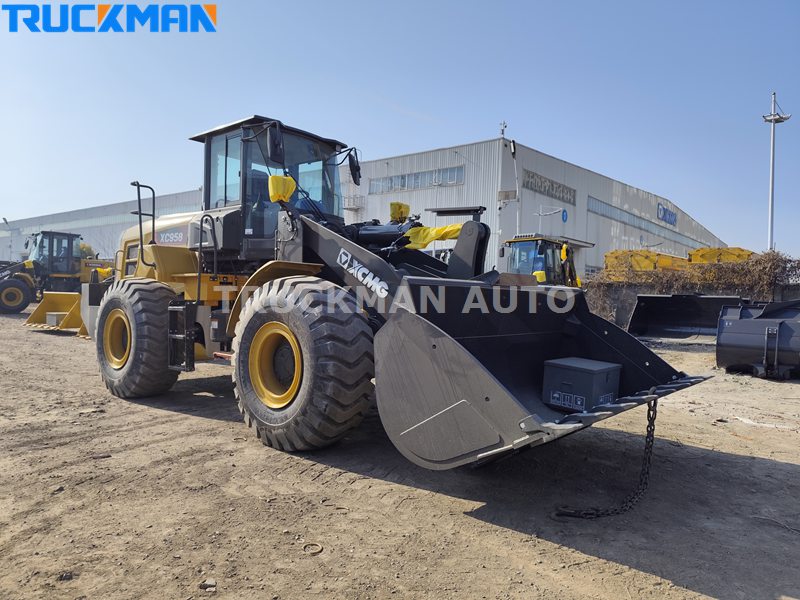

The XCMG XC958 wheel loader, equipped with a Weichai WP10 National II engine, is a 5.5-ton high-efficiency heavy-duty loader specifically designed for high-temperature, high-dust, heavy-load, and low-quality fuel conditions. While retaining the core performance advantages of the XC9 series, this version has undergone numerous adaptive improvements to meet specific market demands, featuring high reliability, strong adaptability, easy maintenance, and low fuel consumption. It is an ideal equipment choice for mining, sand and gravel quarries, and infrastructure construction projects.

|
Feature |
Value |
|
Model |
XC958 |
|
Operating Weight |
16950 kg |
|
Bucket Capacity |
3.2 m3 |
|
Rated Load Weight |
5500 Kg |
|
Dump Clearance At Maximum Lift |
3070 mm |
|
Reach At Maximum Lift |
1240 mm |
|
Wheel Base |
3350 mm |
|
Tread |
2250 mm |
|
Max Breakout Force |
180 kN |
|
Hydraulic Cycle Time-raise |
5 s |
|
Total Hydraulic Cycle Time |
10 s |
|
Minimum Turning Radius |
6045 mm |
|
Overall Size |
8380 x 2996 x 3445 mm |
|
Product Name |
Model |
Payload |
|
HX205G |
21000kg |
|
|
SD16 |
17000kg |
--->Ask us which model is better for mining area.
The high-strength steel plate welded reinforced frame, with thickened and reinforced key parts, increases load capacity by 20%, suitable for Weichai WP10 engine power loads. The 3350mm long wheelbase and 2250mm wide track are centrally aligned, combined with a ±40°articulated structure, balancing heavy-load stability and steering agility. The entire machine has a counterweight of 19000±300kg and is equipped with components such as an engine compartment protective net, making it suitable for harsh working conditions such as DRC mines and unpaved roads.

A: We are TRUCKMAN AUTO,a manufacturer with years of experience in research and development, design, and manufacturing in China
A: It depends on the order quantity, and generally takes 15-40 days.
A: Our products use only genuine, original components from well-known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.
A: For most products, the MOQ is 1 unit.
