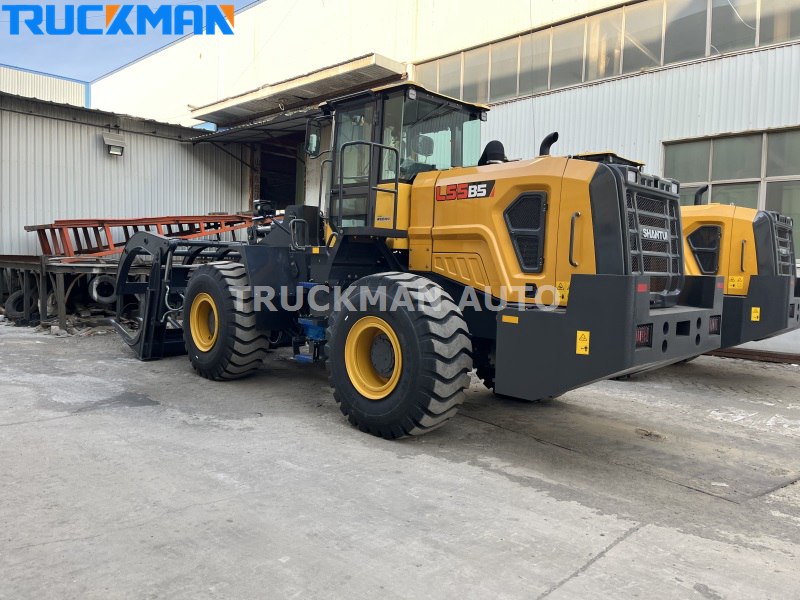

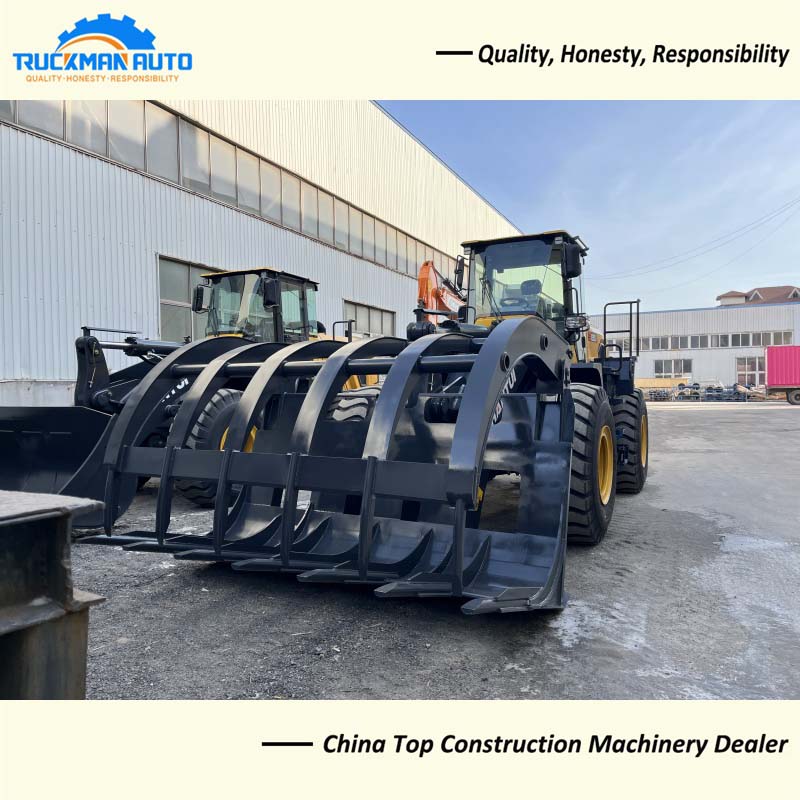

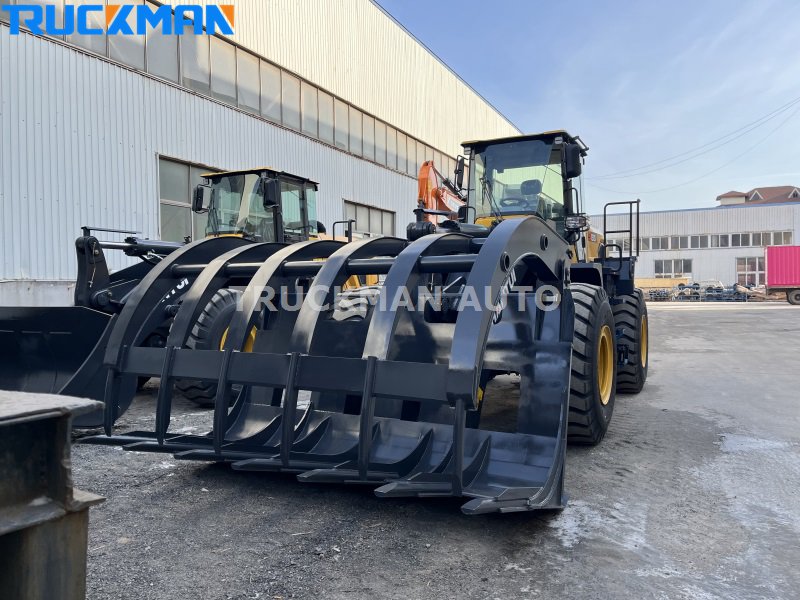

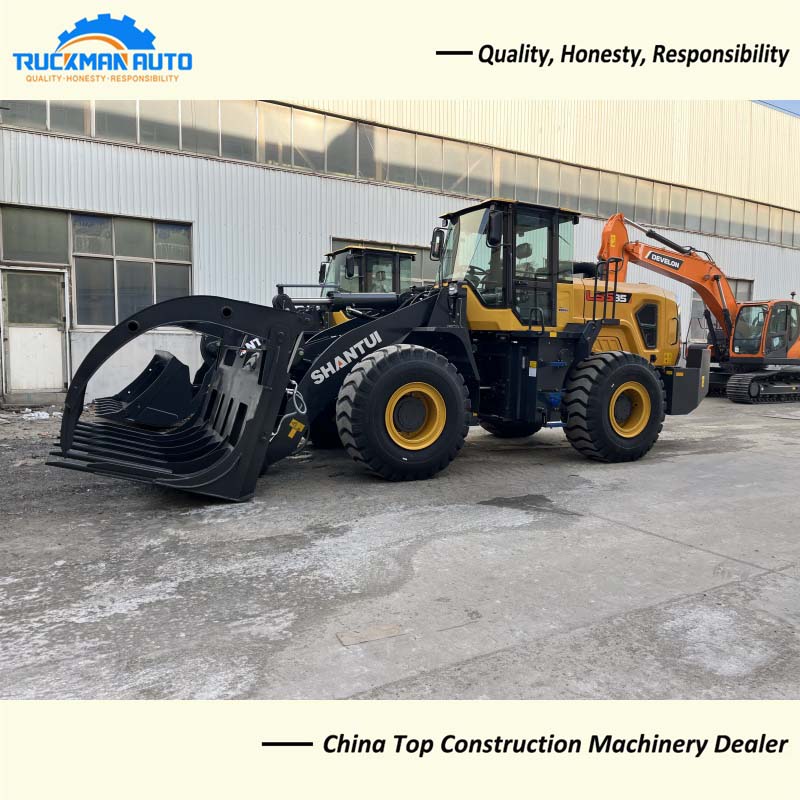

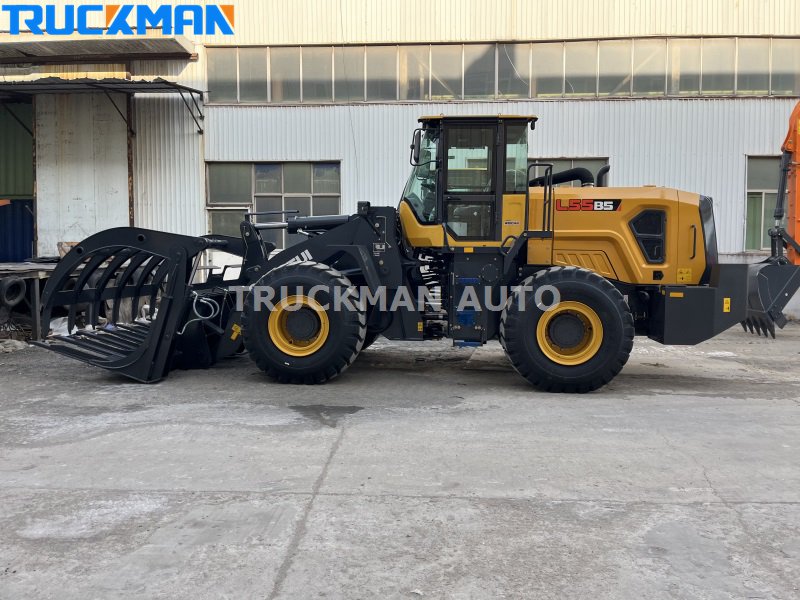

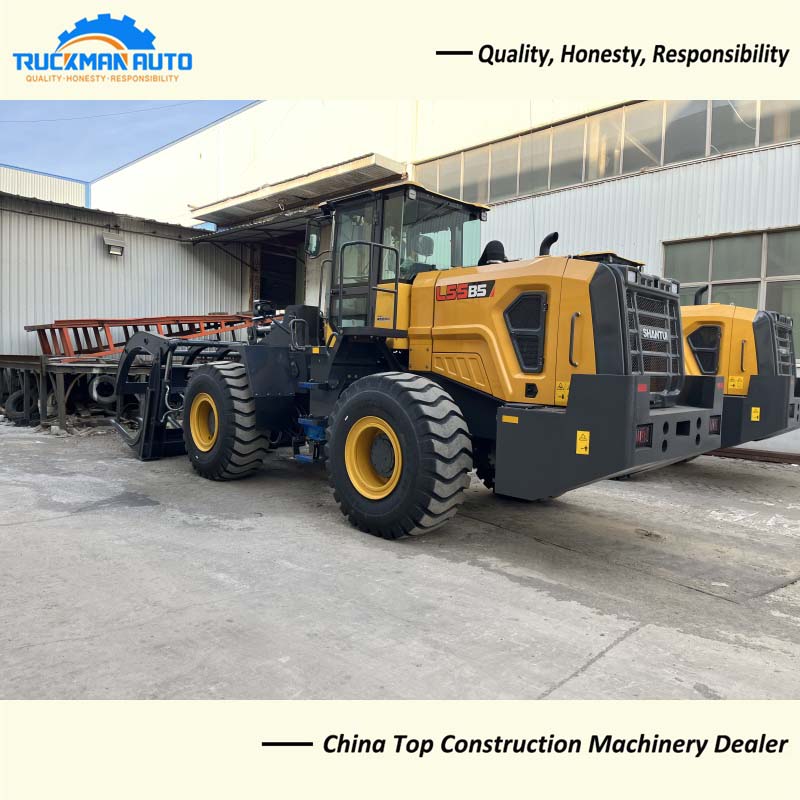

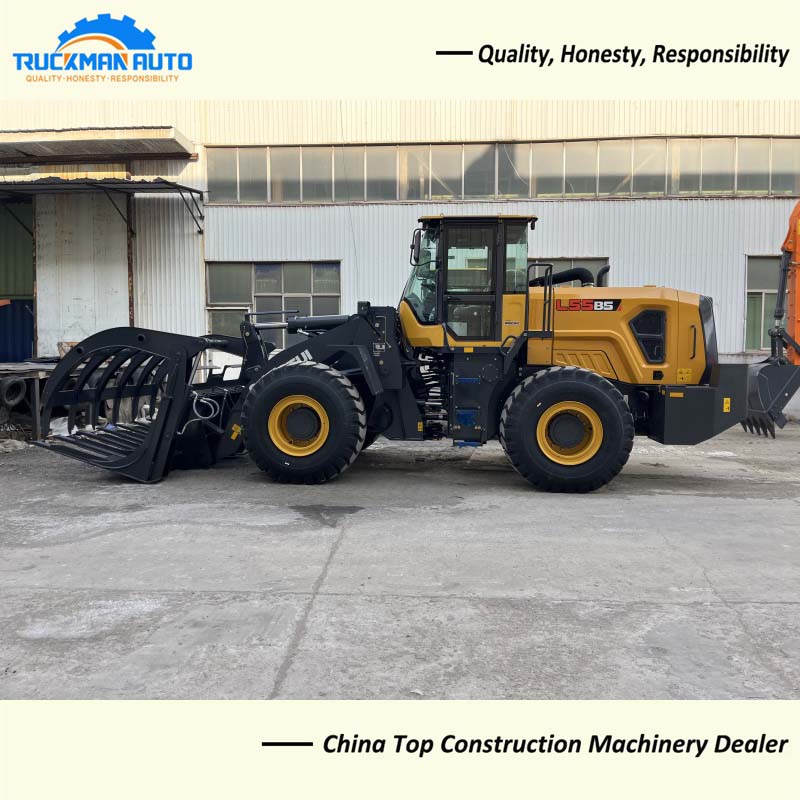

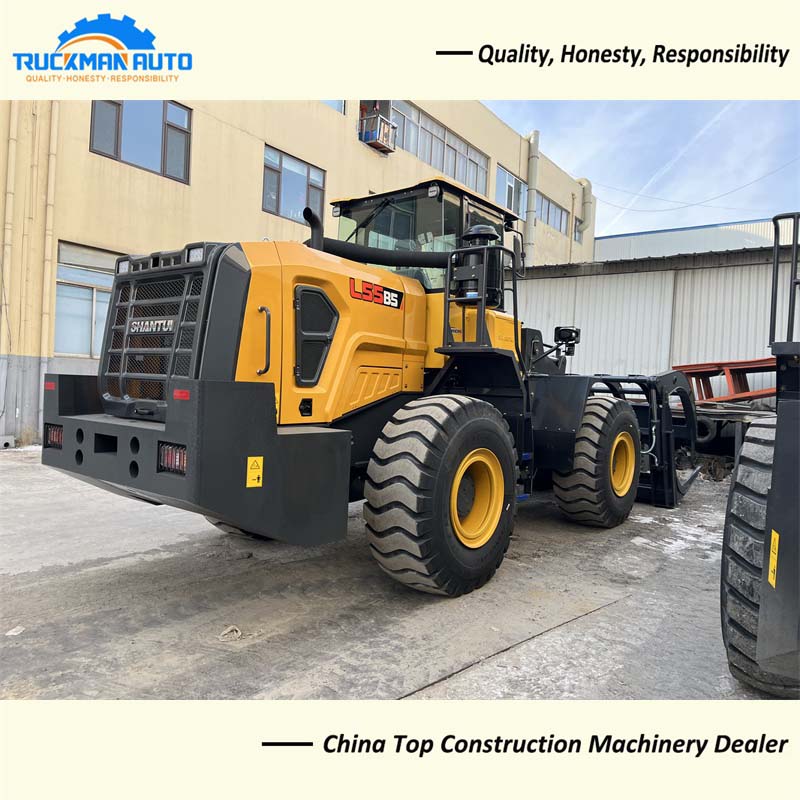

SHANTUI L55B5 5 Tons Wheel Loader

About SHANTUI L55B5 5 Tons Wheel Loader

The SHANTUI L55B5 wheel loader is a new loader product of SHANTUI integrating digitalization, automation and intelligence. The SHANTUI 5 Tons wheel loader comes standard with a bucket capacity of 3m³, and is equipped with the exclusive WEICHAI new platform low-speed and high-torque WP10H engine, the exclusive SHANTUI push star double-variable, and the exclusive SHANTUI drive axle, which has a number of performance advantages, such as fuel-efficient, high-efficiency, and comfort.

SHANTUI L55B5 5 Tons Wheel Loader Specification

Product Name: SHANTUI L55B5 5 Tons Wheel Loader

Application: Construction works

Bucket capacity: 3 m³

Power: 162 kW

Max. dumping height: 3050 mm

Dumping distance: 1110 mm

Wheelbase: 3250mm

Maximum speed: 38km/h

Dimension: 8220x3066x3450mm

SHANTUI L55B5 5 Tons Wheel Loader specification only for your reference, we can manufacture other Wheel Loader basic your request.

SHANTUI L55B5 5 Tons Wheel Loader Engine

The SHANTUI L55B5 wheel loader uses WEICHAI engine, WP10H engine is set up with three levels of power control modes: no-load, medium-load, and heavy-load, to meet the needs of different operating conditions. At the same time, with SHANTUI double-variable assembly, drive axle assembly, and the engine to achieve the best matching effect, acceleration performance is good, the whole machine speed, power output is stable, the joint working conditions of traction and lifting force is greater, stronger explosive force.

SHANTUI L55B5 5 Tons Wheel Loader Comfortableness

The SHANTUI wheel loader has also been upgraded in terms of comfort, configured with ergonomic new optimization of the new generation of cabs, with a wide field of vision and no dead angle, not only sealing enhancement, vibration damping and noise reduction, but also in the seat comfort and maneuvering comfort have outstanding performance. The oscillating rear drive axle can also absorb the vibration of the whole machine during operation, which further improves the comfort.
