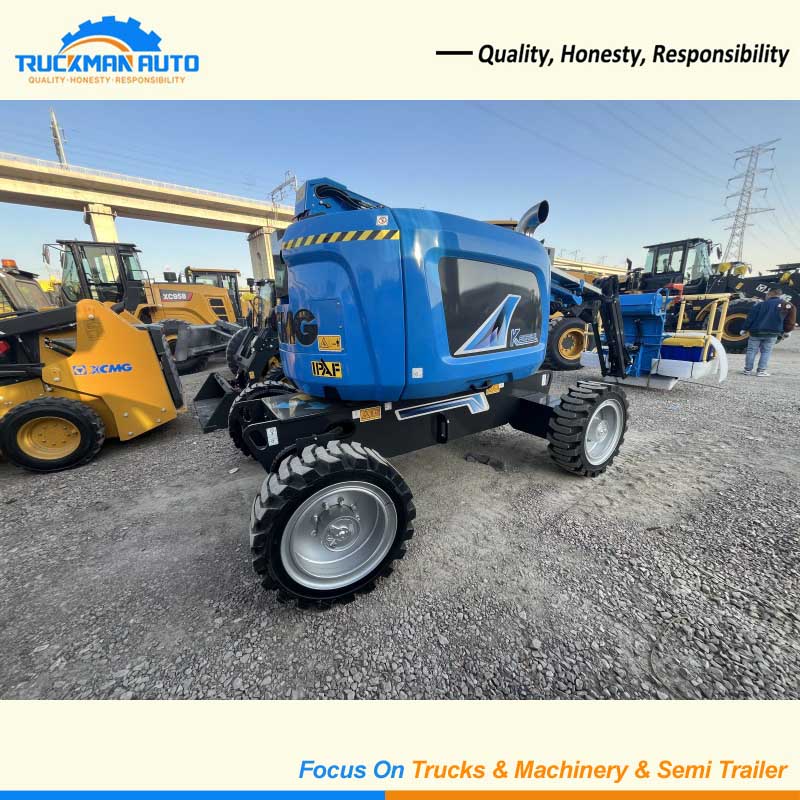

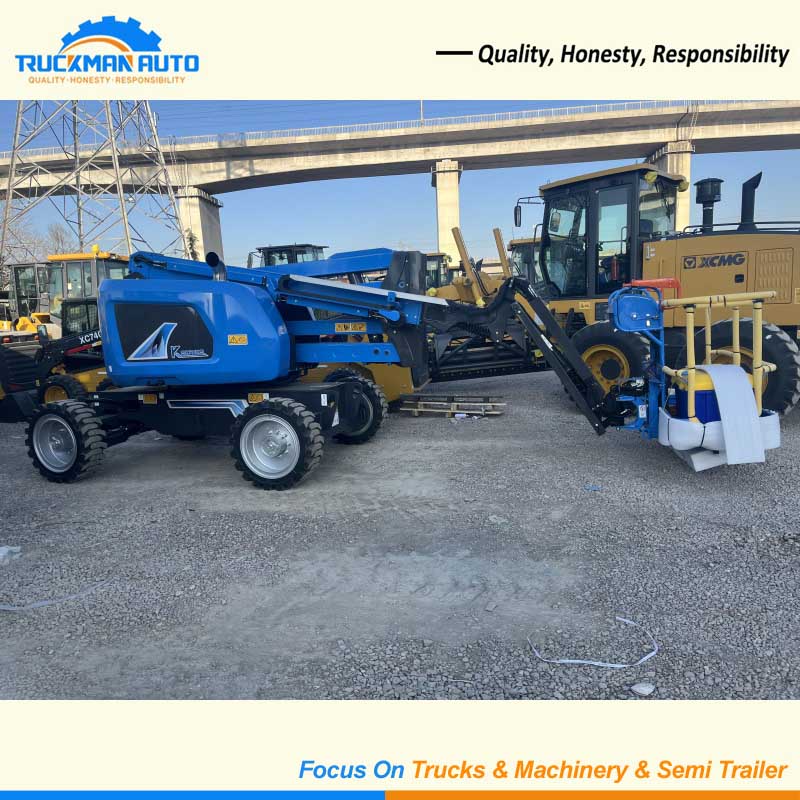

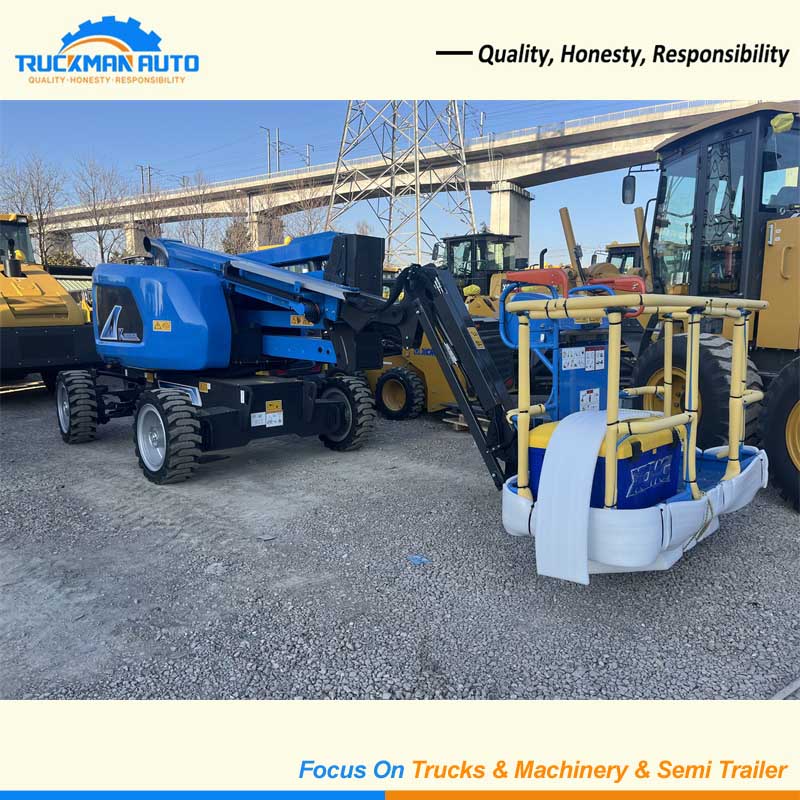

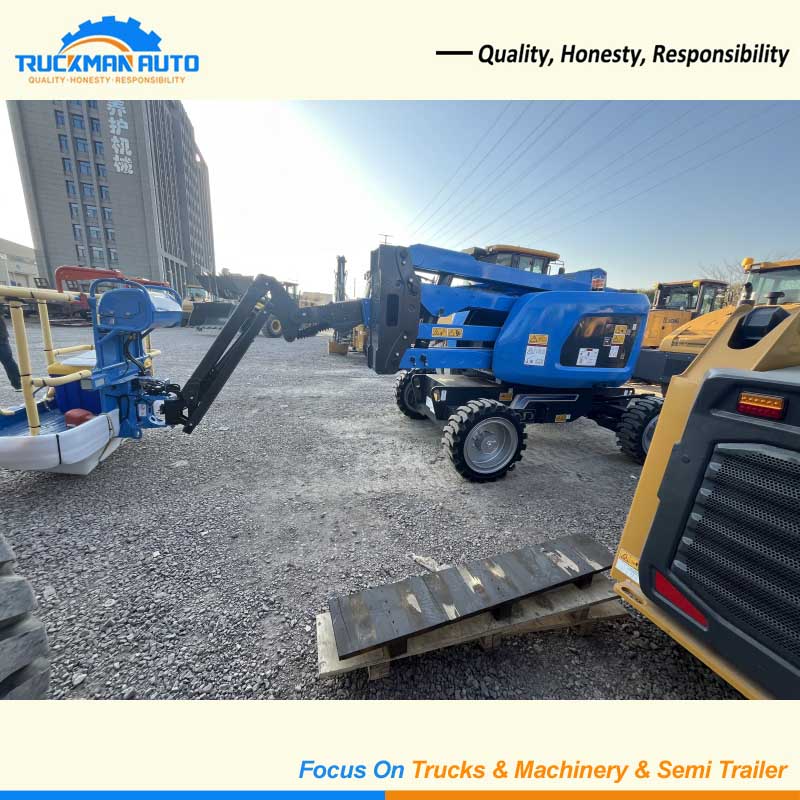

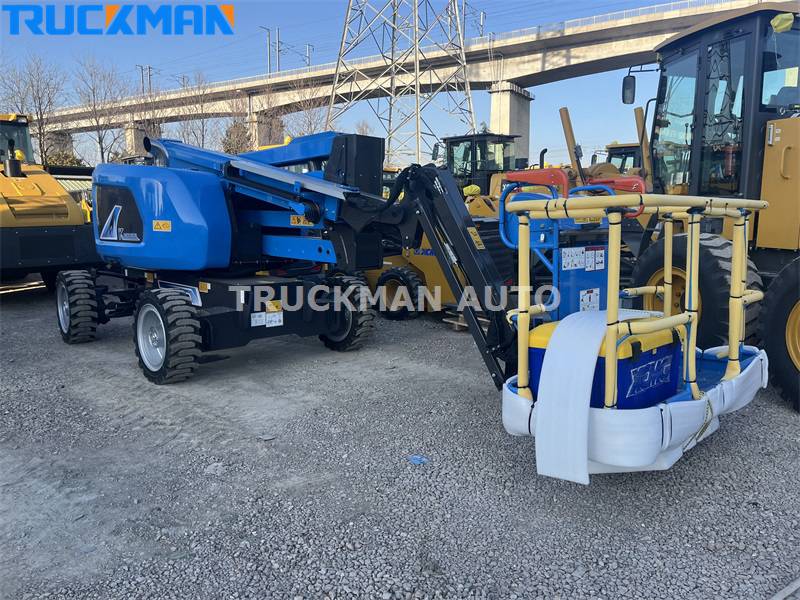

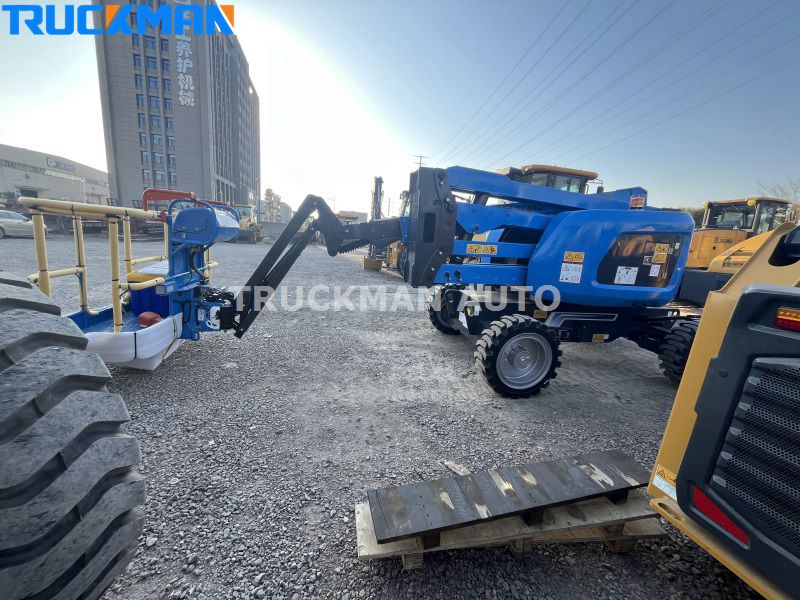

XCMG XGA16 16m Telescopic Boom Mobile Lifting Work Platform Truck

About XCMG XGA16 16m Telescopic Boom Mobile Lifting Work Platform Truck

The XCMG XGA16 truck, the overall working height of 16m, super load-bearing capacity, the maximum climbing capacity of 45%. Double operating range curve, operating height and range of the industry leading. The axle contraction state crank arm can be swung back 160°, reducing the size of the truck, convenient transportation. This model has superior operating performance and large load capacity, which can meet the needs of users in engineering construction, bridge and equipment maintenance and leasing industries.

XCMG XGA16 16m Telescopic Boom Mobile Lifting Work Platform Truck Specification

Product Name: XCMG XGA16 16m Telescopic Boom Mobile Lifting Work Platform Truck

Application: Constructions works

Moving Type: Telescopic Boom

Machine Weight: 7100kg

Maximum Working Height: 16.05m

Boom Length: 3000mm

Dipper Length: 2260mm

Engine Model: 404D-22

Rated Power: 38kW

Dimensions:6690x2260x2130mm

XCMG XGA16 16m Telescopic Boom Mobile Lifting Work Platform Truck only for your reference, we can manufacture other Crawler Excavator basic your request.

XCMG XGA16 16m Telescopic Boom Mobile Lifting Work Platform Truck Hydraulic System

The hydraulic components of this lifting platform truck, hydraulic pumps, main valves and other major components adopt international famous brands. Double closed-type pump + variable pump form, double closed-type pumps respectively control the left and right side of the motor off the walking, variable pump control in addition to walking the entire hydraulic system, driven directly by the engine to provide power for the hydraulic system. The engine is directly driven to provide power for the hydraulic system. It is also equipped with emergency power unit to ensure that the boom can be recovered to the traveling state when the engine or oil pump fails.

XCMG XGA16 16m Telescopic Boom Mobile Lifting Work Platform Truck Turntable

The mobile platform truck turntable adopts 360 degrees continuous rotation, two transportation locking pin installation empty hole position. Perkins engine optimally matched vibration damping and heat dissipation system. The engine can be screwed out by removing the locking bolts, allowing easy access to the engine and accessories for repair and maintenance. Major faults are indicated via the turntable display with buzzer alarm and calibration is provided.
