12 Wheels SHACMAN F3000 430HP Tipper Truck

About 12 Wheels SHACMAN F3000 430HP Tipper Truck

The SHACMAN F3000 tipper truck adopts WEICHAI 430HP engine, which has high torque at low speed and strong climbing ability for heavy load. The transmission system is newly optimized and matched, and the gearbox adopts unique double intermediate shaft structure of main and vice box, which makes the transmission more efficient. Driving stability is improved and fuel consumption per unit payload is reduced. The lower part of the cab is equipped with iron bumper, which can effectively protect the truck.

12 Wheels SHACMAN F3000 430HP Tipper Truck Specification

Product Name: 12 Wheels SHACMAN F3000 430HP Tipper Truck

Application: Construction work

Engine: WP12.430E201, 430HP, EURO 2 emission standard

Cabin: with one bed, A/C

Gearbox: 12 forward and 2 reverse gear

Tire: 12.00R20 ,12+1 pcs

Color: optional

Fuel Tank: 300L

Cargo Box: 7600x2300x1500mm

12 Wheels SHACMAN F3000 430HP Tipper Truck only for your reference, we can manufacture other Tipper Truck basic your request.

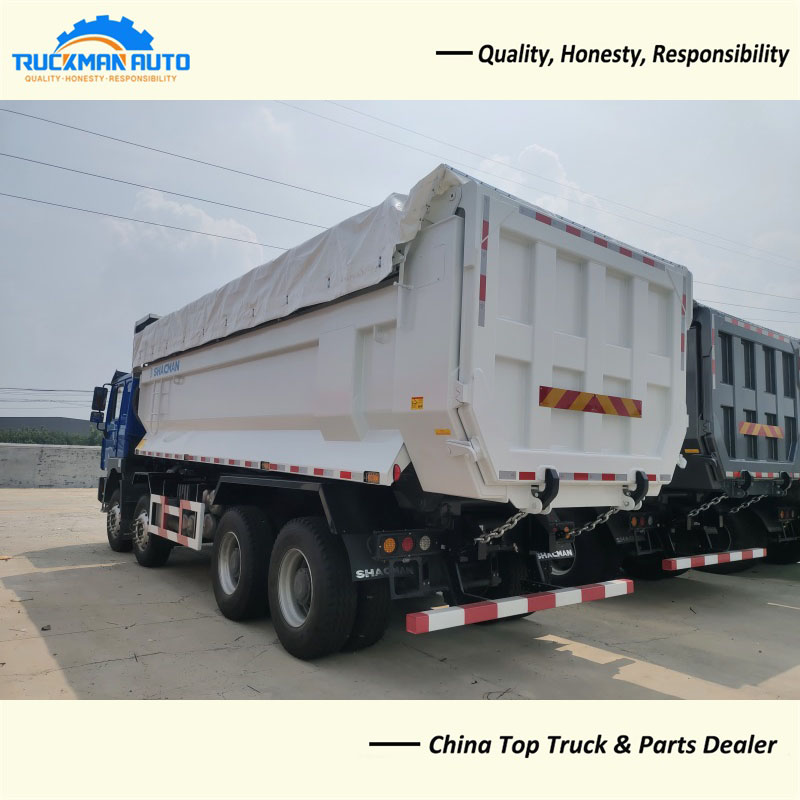

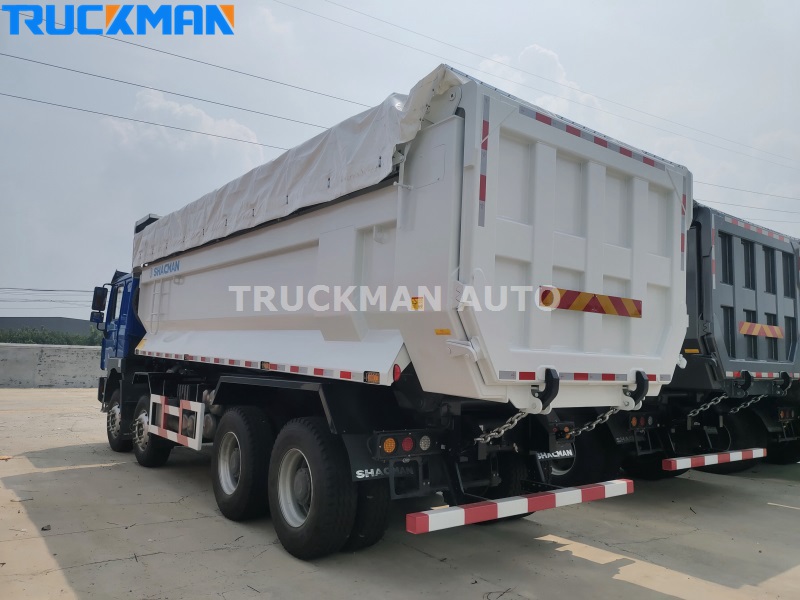

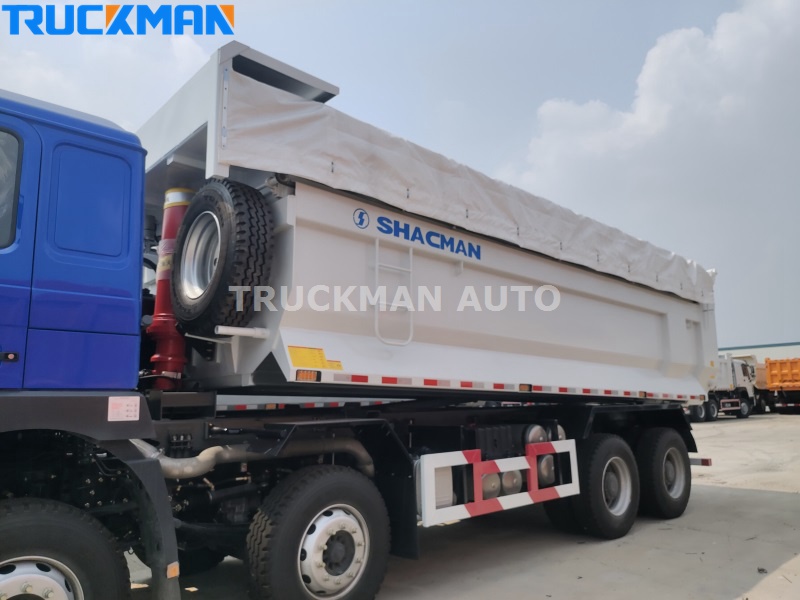

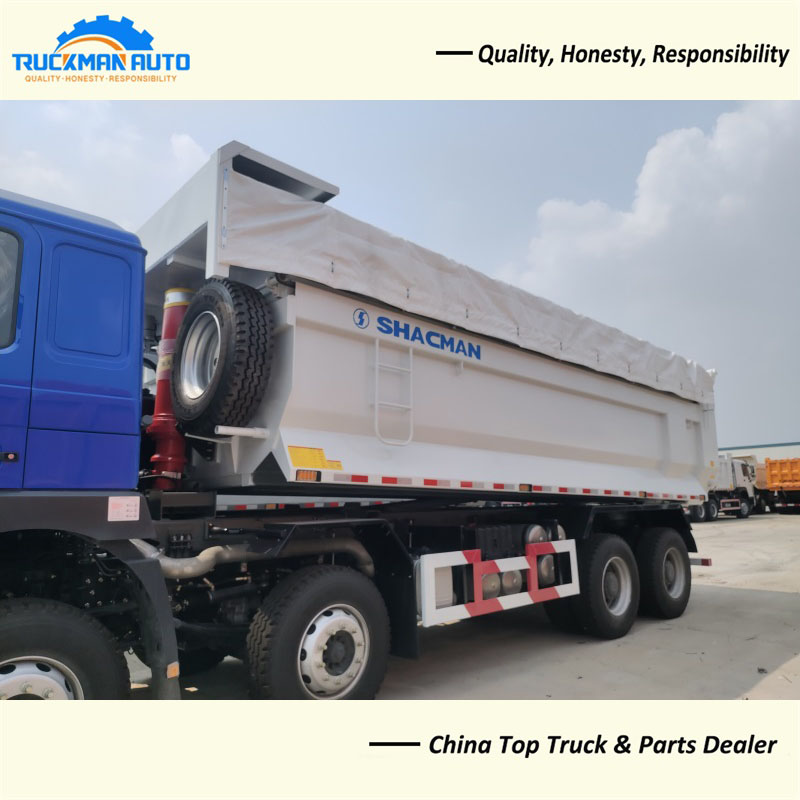

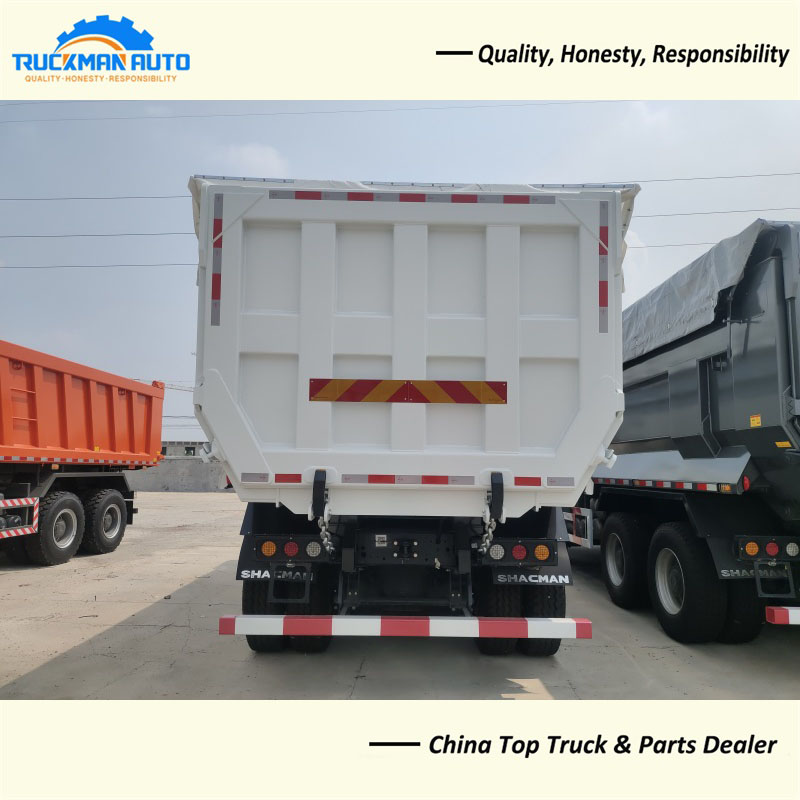

12 Wheels SHACMAN F3000 430HP Tipper Truck Cargo Box

The cargo box of this 12 Wheels SHACMAN tipper truck adopts the U-shape bucket, because the corners of U-shape cargo box are arc transition, there is no dead corner, it is not easy to stick to the box when unloading, and the unloading is cleaner, which is especially suitable for the transportation of clay.The center of gravity of the cargo box of U-shape bucket is greatly reduced compared with that of rectangle bucket, and the safety performance is improved. The material is made of manganese plate, with high yield strength, better impact resistance and fatigue resistance.

Why Tippers Need To Be Fitted With Electric Tarpaulin?

Effectively prevents dust problems caused by hauling construction materials, coal and other bulk goods, etc., and effectively protects the environment.

Can avoid the safety hazard of climbing trucks.

It can effectively prevent transportation goods from falling and reduce property loss and casualties.

Adopting the combination of towing and pulling to achieve good mechanical and molding effect. Due to the large mechanical towing speed, no loading personnel are needed, which can ensure the safety of materials and personnel on the truck.
