6x4 SHACMAN H3000 400HP Dump Truck For Ghana

About 6x4 SHACMAN H3000 400HP Dump Truck

The SHACMAN H3000 dump truck adopts WEICHAI engine, which is powerful and reliable. It adopts three-level foot pedal, the last level is movable, which can improve the passing ability. The lamps are equipped with lampshade to prevent splashing stones from damaging the lamps. The front lower view mirror adopts a wide field of view lens, which has a wide field of view and makes driving safer. Adopt metal bumper, safe and reliable. Large space between the main and auxiliary seats in the cab, new structure combination dashboard, beautiful and atmospheric, good practicality.

6x4 SHACMAN H3000 400HP Dump Truck Specification

Product Name: 6x4 SHACMAN H3000 400HP Dump Truck

Application: Construction work

Engine: WP12.400E201, 400HP, EURO 2 emission standard

Cabin: with one bed, A/C

Gearbox: 12 forward and 2 reverse gear

Tire: 13R22.5 ,10+1 pcs

Color: optional

Fuel Tank: 300L

Cargo Box: 5600x2300x1500mm

6x4 SHACMAN H3000 400HP Dump Truck only for your reference, we can manufacture other Dump Truck basic your request.

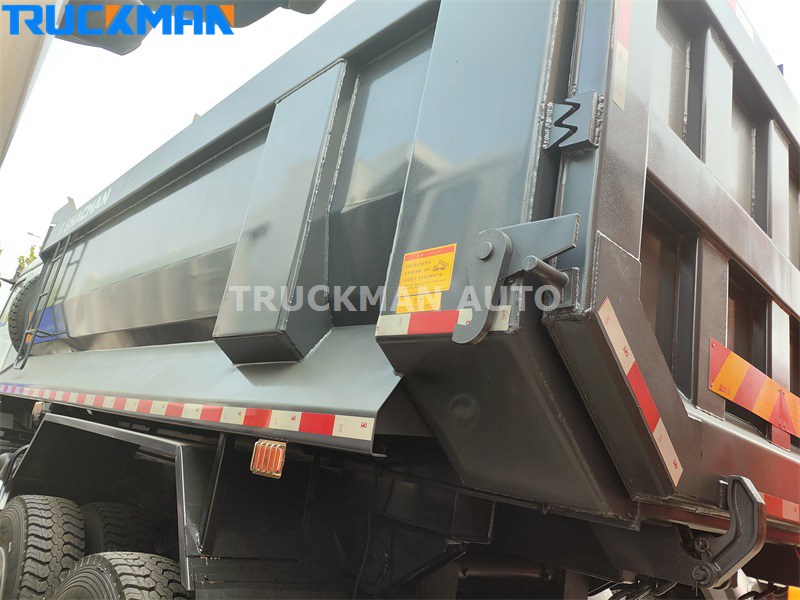

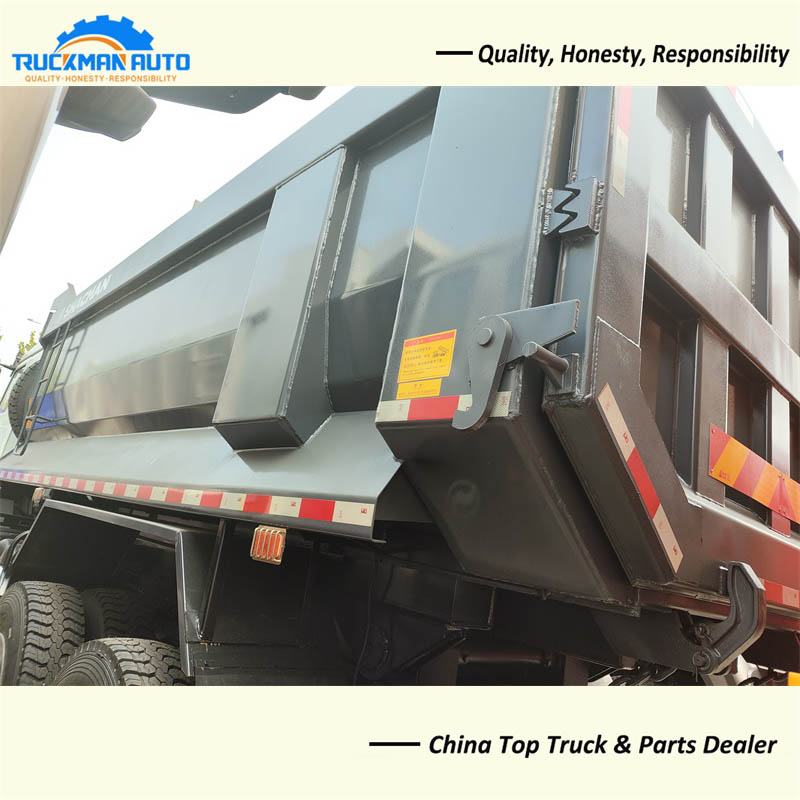

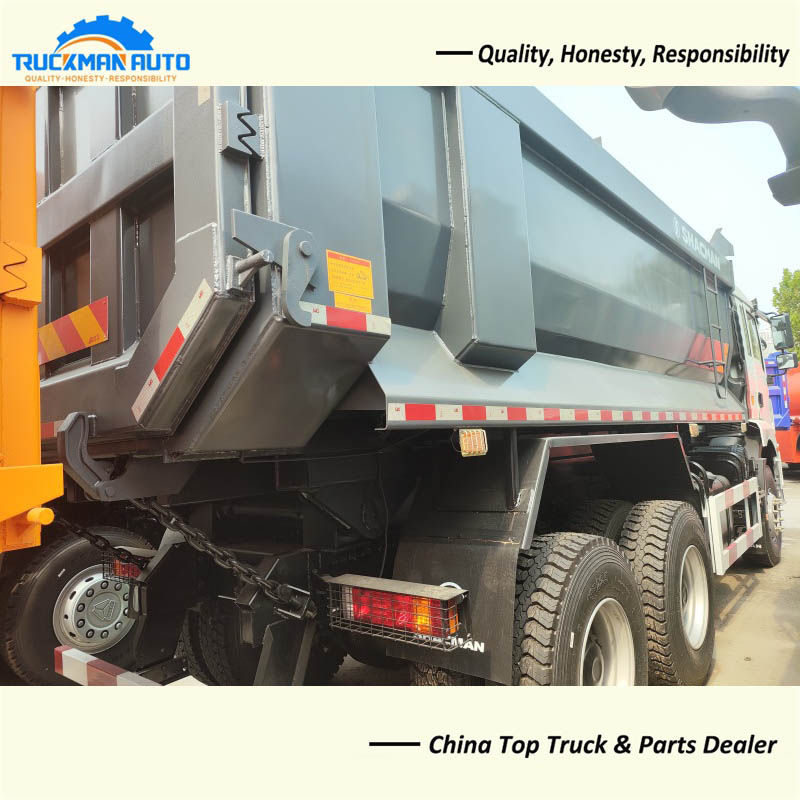

6x4 SHACMAN H3000 400HP Dump Truck Cargo Box

The 6x4 SHACMAN dump truck adopts the cargo box of U-shape bucket, because the corners of U-shape cargo box are arc transition, there is no dead corner, very suitable for clay transportation, not easy to stick box when unloading, unloading is cleaner. the bottom of the U-shape structure box is arc, cancel the bottom longitudinal beams, the sub-frame is also lower than the rectangular box, so the center of gravity of the whole vehicle compared to the rectangular bucket is greatly lowered, the road driving is very stable, and reduce the wear and tear of the chassis of the heavy-duty construction truck effectively.

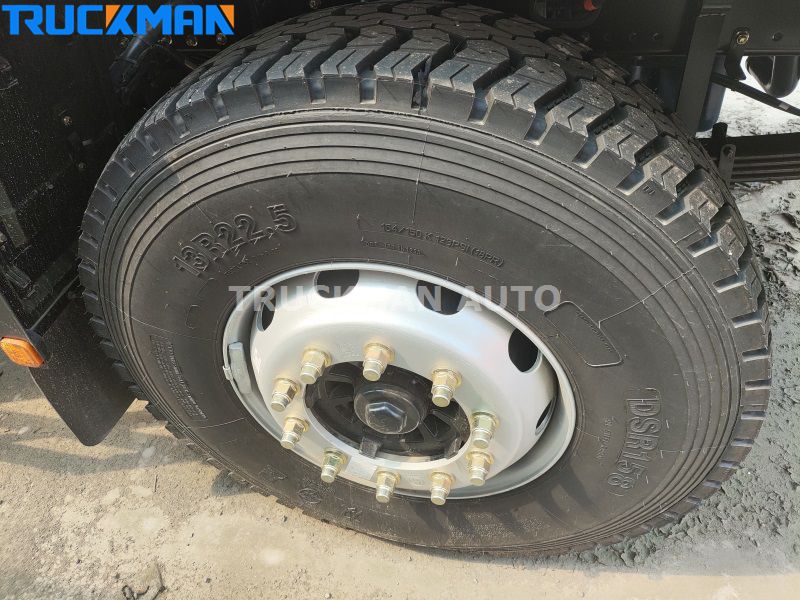

What Are The Advantages Of 13R22.5 Tires?

The SHACMAN 400HP dump truck is equipped with 13R22.5 tires.13R22.5 tires are tubeless tires, so there is no friction between the inner and outer tires, and they can directly dissipate heat through the rim, which has good heat dissipation performance and greatly reduces the chance of flat tires in hot weather. The 13R22.5 tire has no inner tube, reasonable structure, light tire quality, low rolling resistance, can effectively save fuel consumption. Relative to ordinary tires, the diameter is larger, the passing ability of the whole truck is strong, strong tire-carrying capacity.
