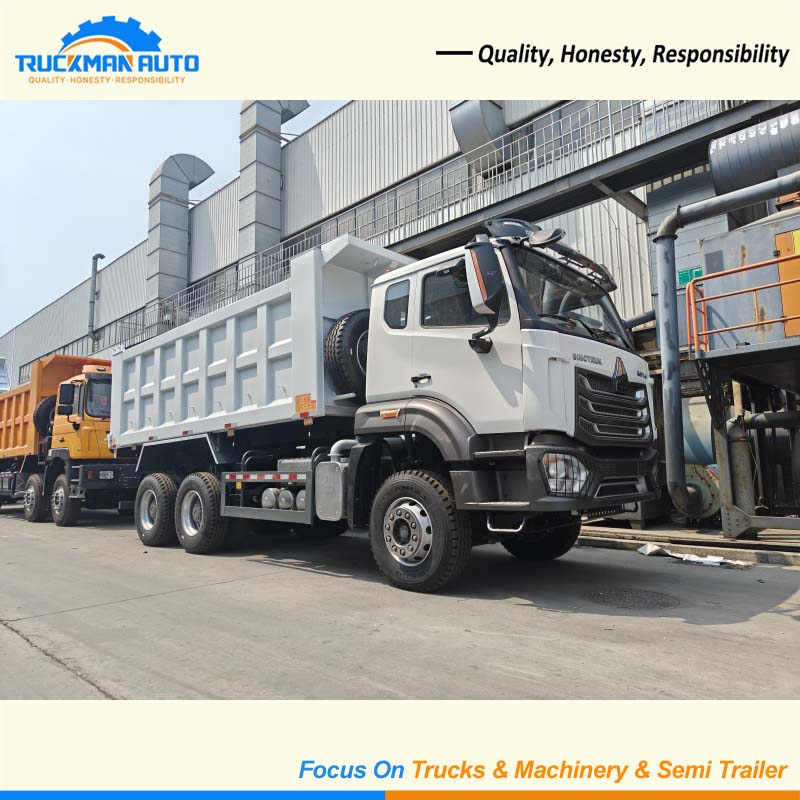

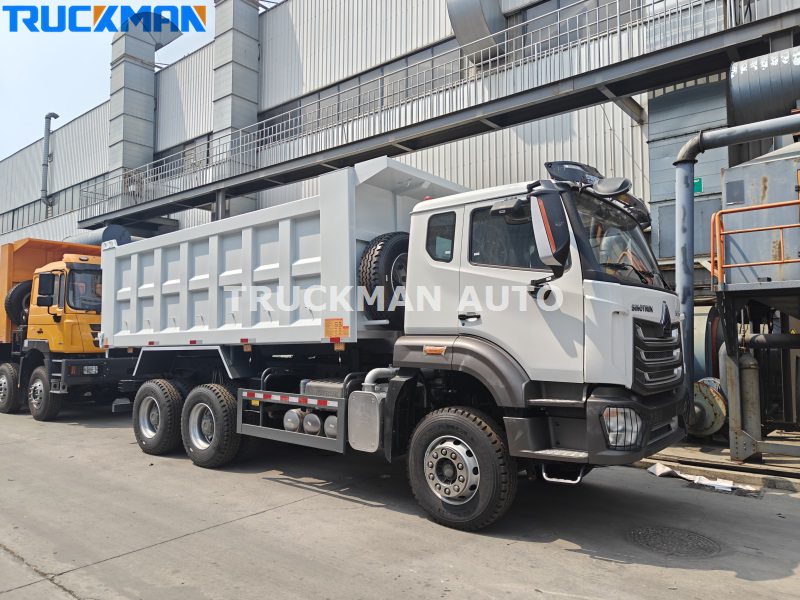

30 Tons Dumper Truck HOWO NX 6X4 380HP Dump Truck

About 30 Tons Dumper Truck HOWO NX 6X4 380HP Dump Truck

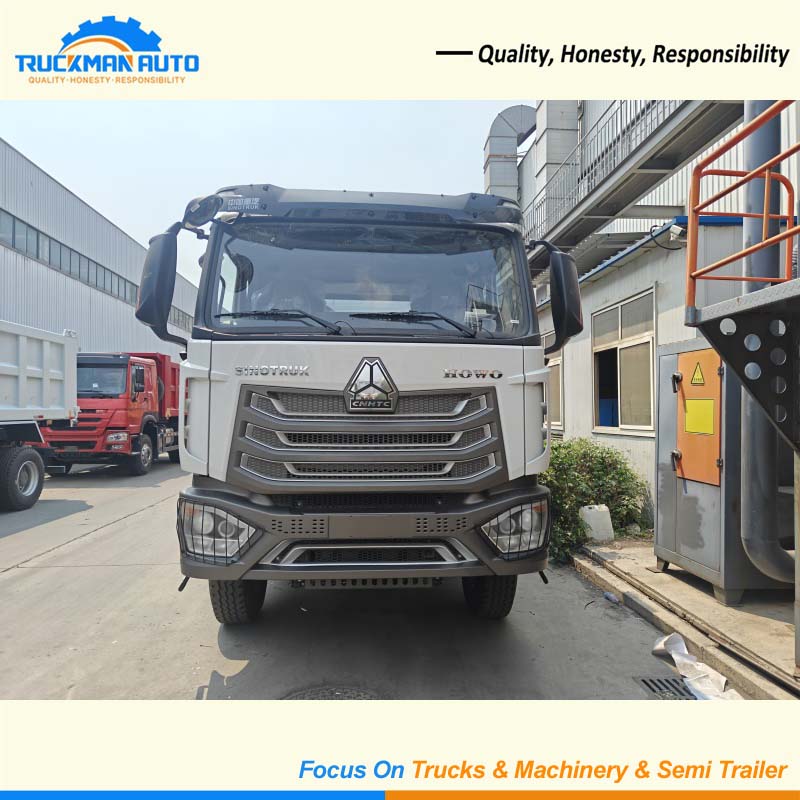

The sharp headlights of HOWO NX dumper truck and the central grille make the entire front face very imposing and majestic. HOWO NX dumper truck is equipped with a WEICHAI brand engine and a Sinotruk gearbox. There is basically no delay when shifting. The gearbox and engine are well matched, and the throttle is sensitive. There is power feedback when you step on the accelerator lightly. HOWO NX dumper truck can pull 15-30 tons of cargo, meeting the user's demand for loading capacity. The vehicle size and wheelbase are reasonably designed, providing ample space for loading cargo.

30 Tons Dumper Truck HOWO NX 6X4 380HP Dump Truck Specification

Engine: WP12.400E201, 400HP. Euro 2

Cabin: H77L,with one bed, A/C

Gearbox: HW19710, 10F & 2R, with PTO, manual gearbox

Drive Axle: HC16,2x16000kg,

Tire:  13R22.5, tubeless tyre, 10+1 pcs

Cargo Size: 20m3

Fuel Tank: 300L

Dimension:  8530x2580x3430mm

SINO TRUCK HOWO 6X4 10 Wheels Dumper specification only for your reference, we can manufacture other model dumper truck basic your request.

30 Tons Dumper Truck HOWO NX 6X4 380HP Dump Truck Lifting Cylinder

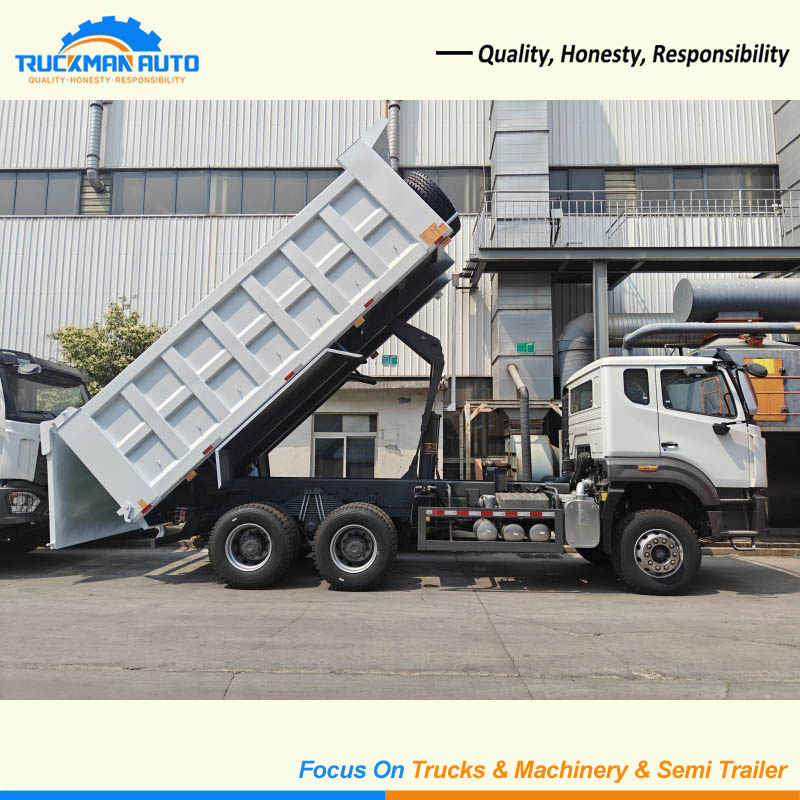

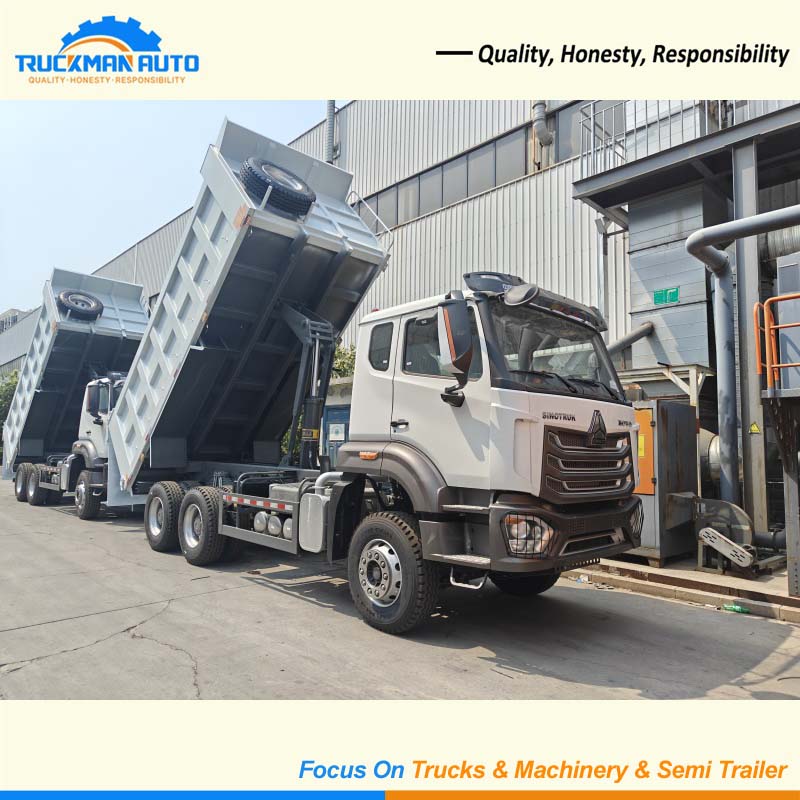

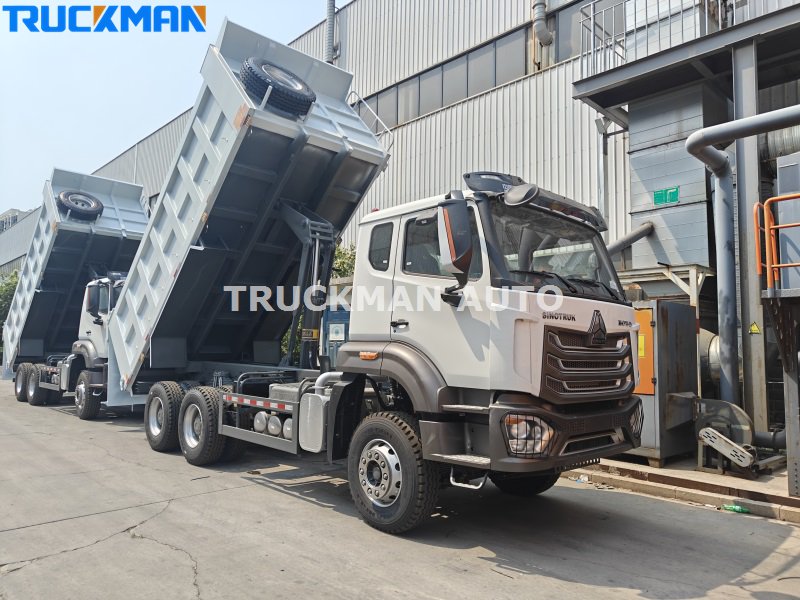

HOWO NX dumper truck adopts a mid-lift lifting method, the support surface of which is in the front middle of the cargo box. By using the principle of lever, compared with the front hydraulic jack, the force during lifting is more reasonable, which can effectively lower the center of gravity of the vehicle, improve the stability during lifting, and greatly avoid the sideways tilt of the cargo box, especially when unloading in a specific site with limited road surface flatness. It can also save a certain amount of vehicle chassis space, which is conducive to improving the driving stability of the vehicle.

30 Tons Dumper Truck HOWO NX 6X4 380HP Dump Truck Cargo Body

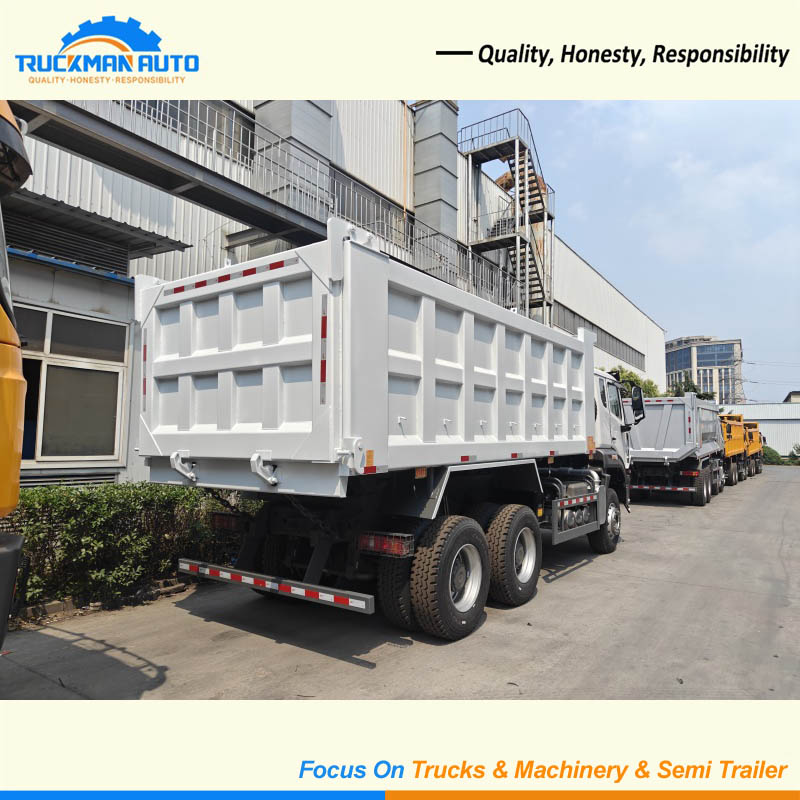

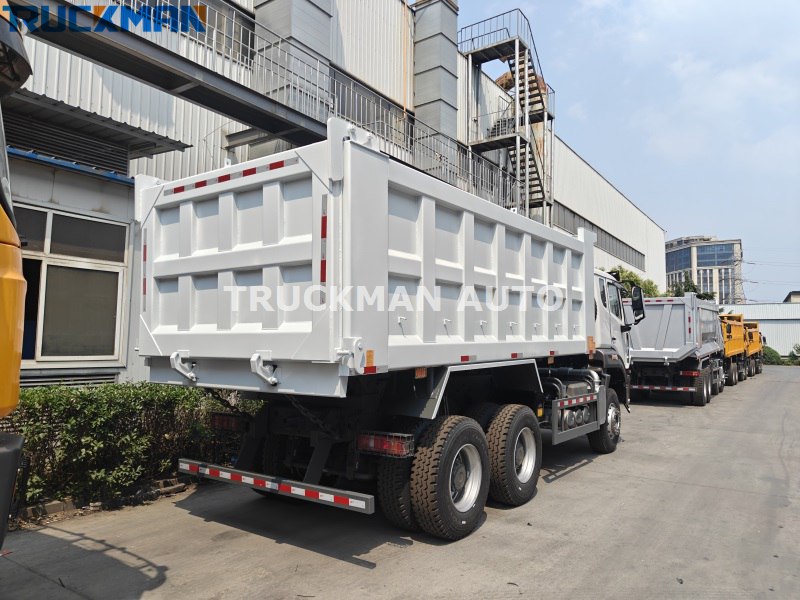

The 30 tons dumper truck uses a rectangular cargo box with rope hooks installed around the cargo box. The rope hooks can prevent the cargo from being fixed and reinforce the loose cargo. During the truck transportation process, the vehicle will shake and bump, and the cargo is prone to displacement. The cargo box rope hook can connect and fix the cargo to the cargo box. For example, if one end of the rope is tied to the rope hook and the other end is tied to the cargo, it can effectively prevent the cargo from sliding, tipping or falling in the cargo box, ensuring the stability of the cargo during transportation and avoiding damage and loss of the cargo.
