6X4 SINOTRUK HOWO NX 380HP Truck Mounted Crane

About 6X4 SINOTRUK HOWO NX 380HP Truck Mounted Crane

The SINOTRUK truck Mounted Crane is equipped with WEICHAI engine, which has the advantages of low fuel consumption, high reliability, long service life, high torque and high reliability. A warning light is equipped above the cab, which can improve the safety of traveling at night. The truck is equipped with a straight boom crane, the boom is transverse between the truck cab and the truck compartment when the truck is traveling.

6X4 SINOTRUK HOWO NX 380HP Truck Mounted Crane Specification

Product Name: 6X4 SINOTRUK HOWO NX 380HP Truck Mounted Crane

Application: Logistics and transportation

Engine: WP10.380E22, 380HP. Euro 2

Cabin: With one bed, A/C

Gearbox: 10 forward and 2 reverse gear

Tire: 12.00R20 , 10+1 pcs

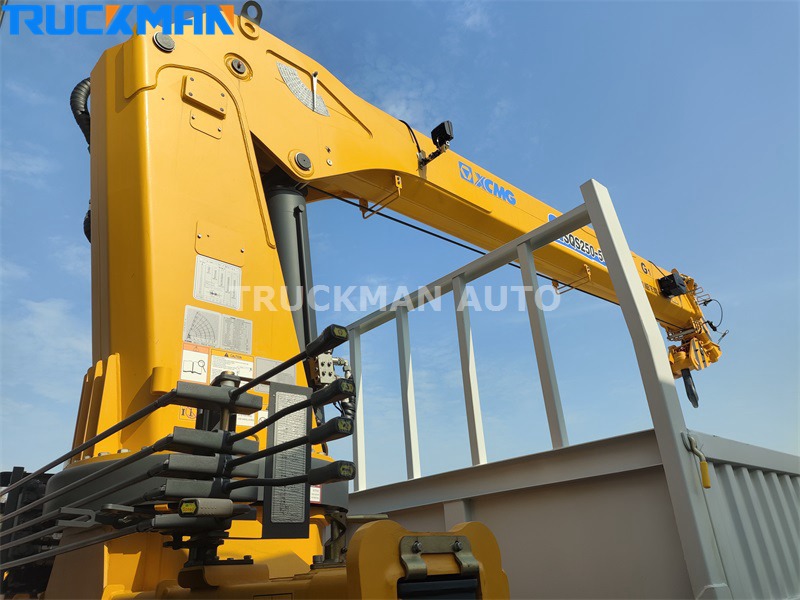

Crane: GSQS250-5, straight arm

6X4 SINOTRUK HOWO NX 380HP Truck Mounted Crane only for your reference, we can manufacture other Truck Mounted Crane basic your request.

6X4 SINOTRUK HOWO NX 380HP Truck Mounted Crane Axle

The 6X4 SINOTRUK truck mounted crane adopts MCX16ZG series drive axle of SINOTRUK, which is a new generation of double-stage deceleration drive axle based on the advanced technology. The main reducer adopts Oerlikon equal-height bevel gears, with high gear strength and long service life; the axle housing is casted with high-strength materials, with high load carrying capacity. The axle head is of one-stage press fitting, with reliable structure. Hub bearing load distribution is reasonable, long life, high reliability; the main reducer to increase the special magnetic block, to maintain the cleanliness of the gear oil; matching brake, good heat dissipation.

How To Maintain Truck Mounted Crane?

Keep the truck crane clean for a long time, adjust and fasten the loose parts in time, in order to prevent the wear and tear of the parts exacerbated by the looseness or lead to the loss of parts.

Pay attention to the working load during the break-in period of the truck crane, the working load during the break-in period generally should not exceed 80% of the rated working load, and arrange suitable workloads for the truck crane to prevent the machine from overheating during long-time continuous operation.

Pay attention to the frequent observation of the truck crane instrumentation instructions, abnormalities, should be timely to stop the operation to be ruled out, in the cause of the failure has not been found and ruled out before, should stop the operation.
