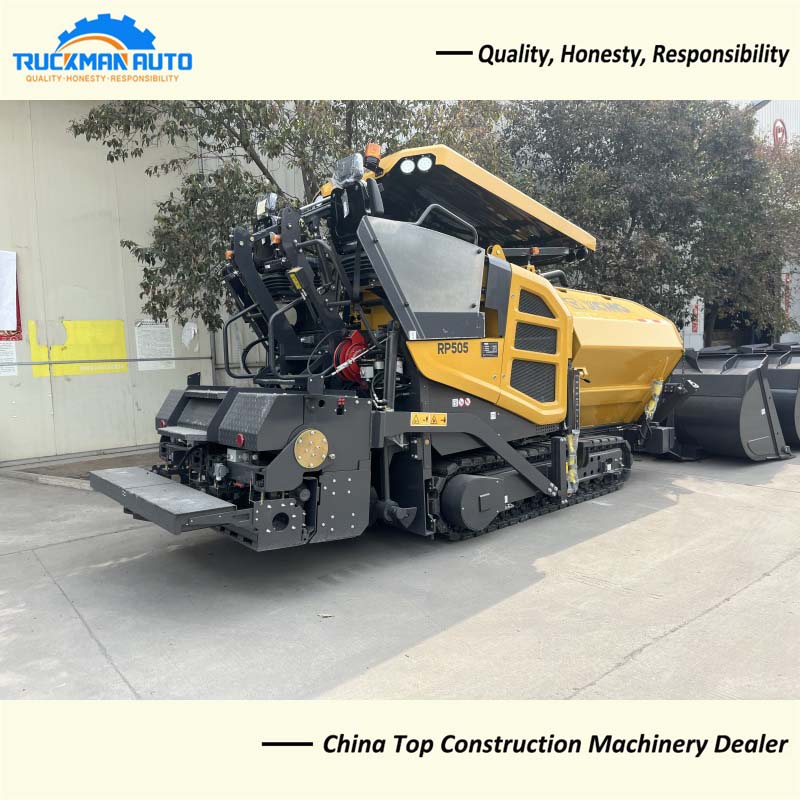

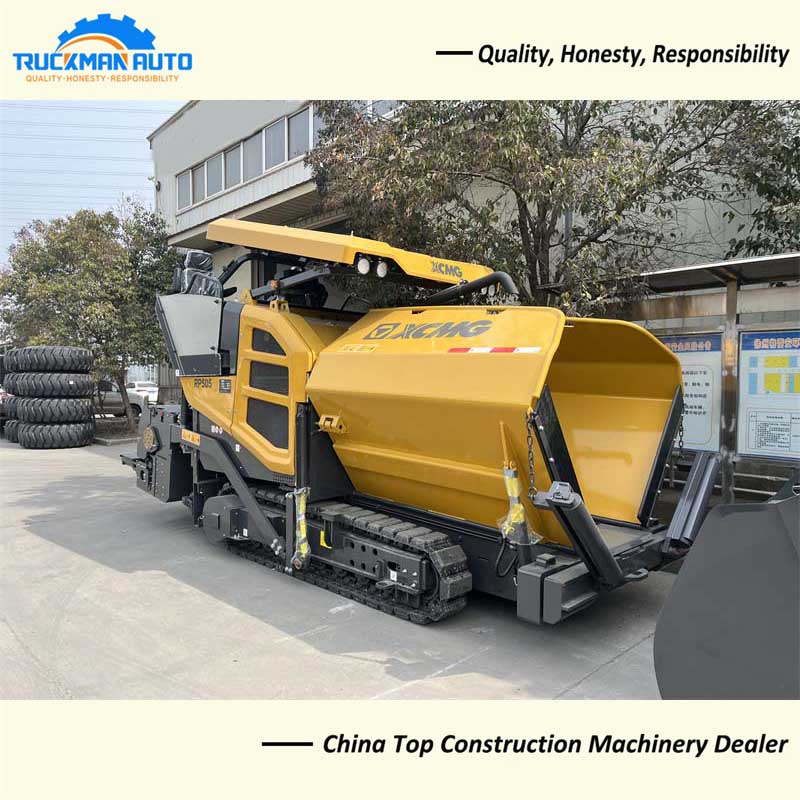

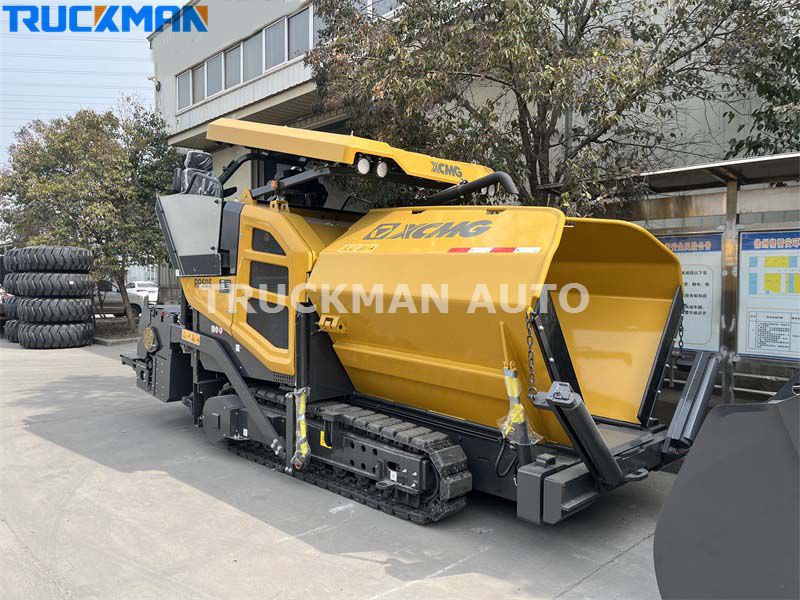

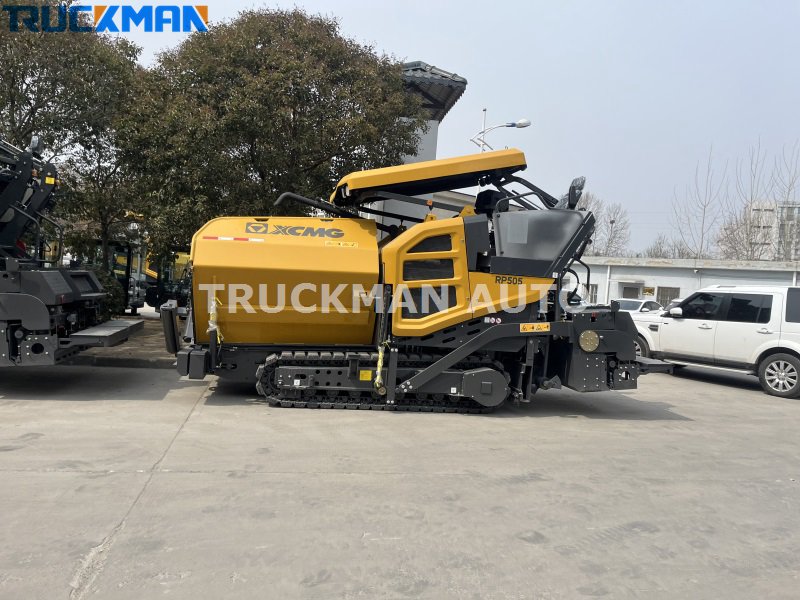

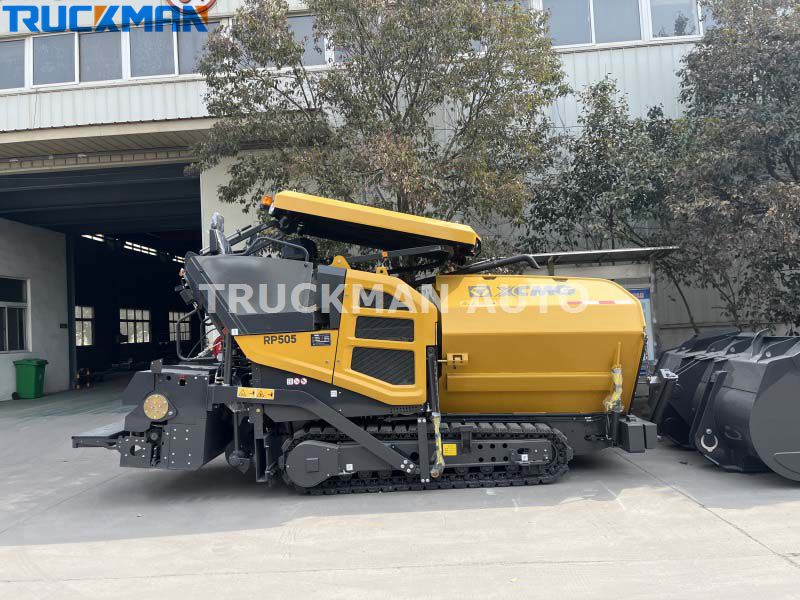

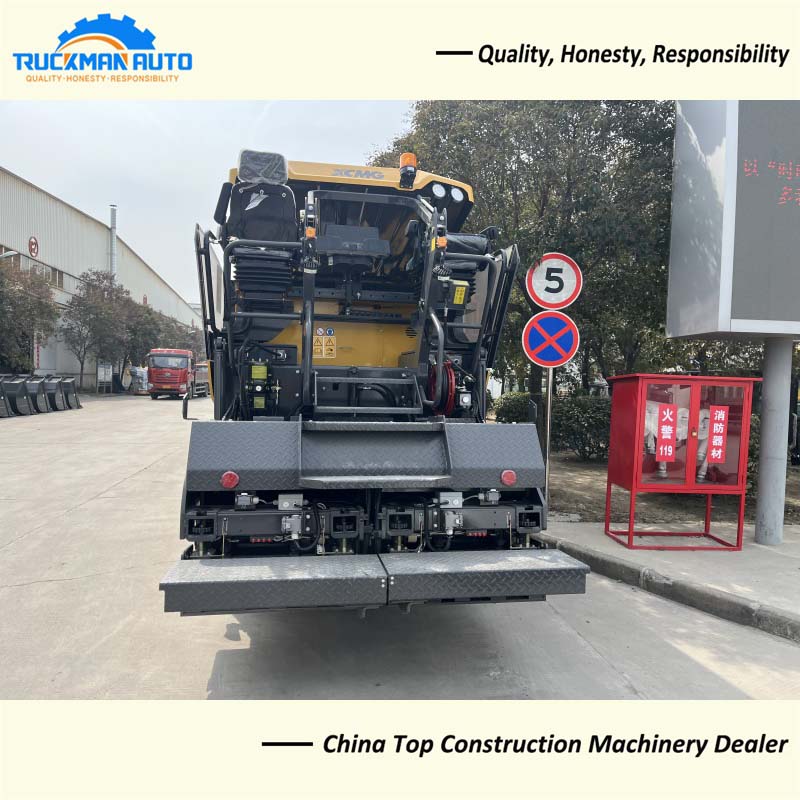

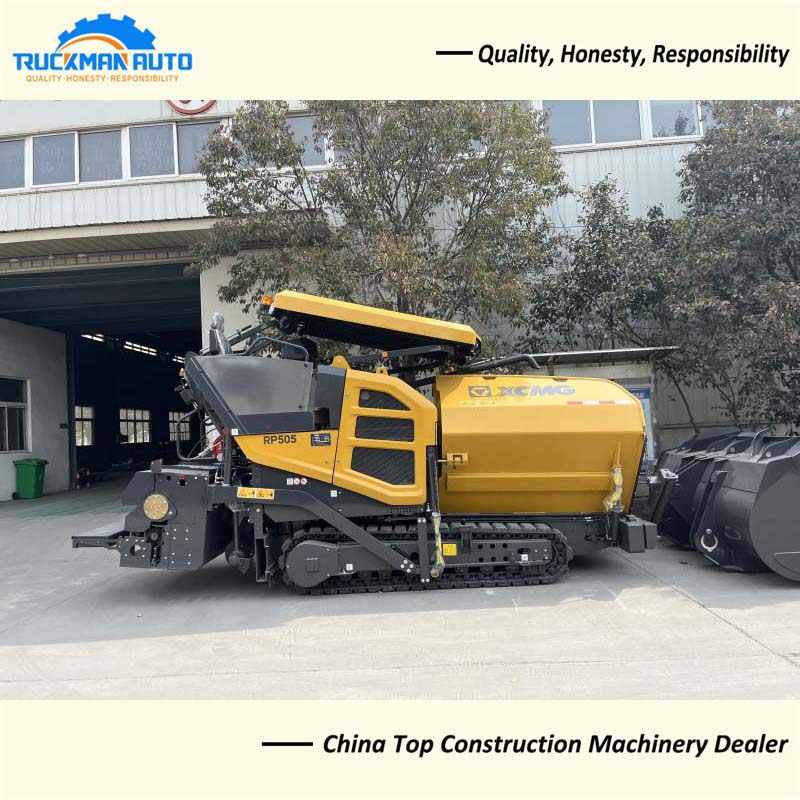

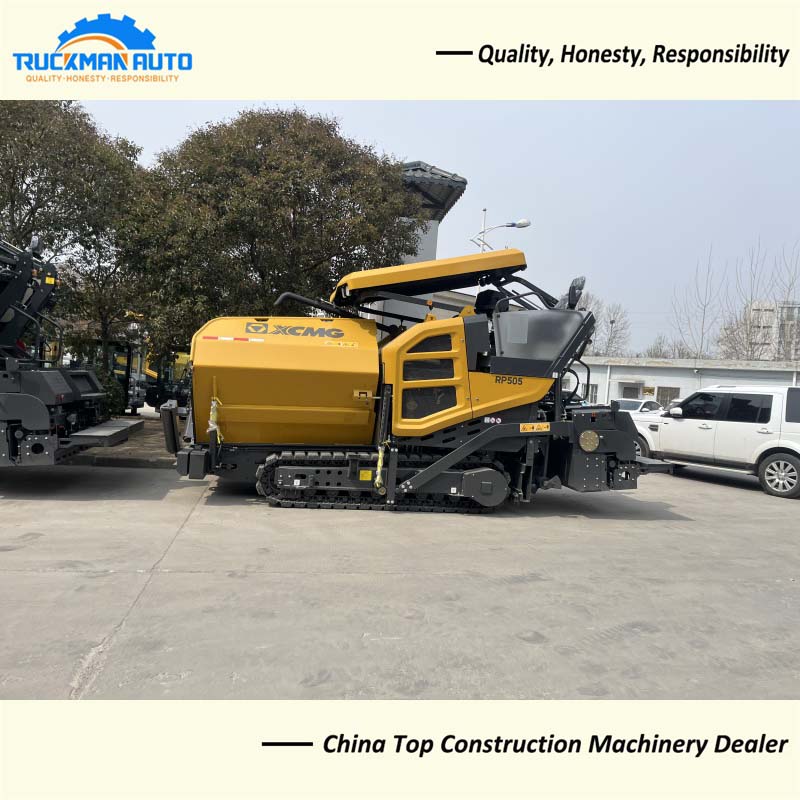

XCMG RP505 116HP Crawler Paver

About XCMG RP505 116HP Crawler Paver

The width of XCMG RP505 crawler paver is 2m, the length is 5.8m, the basic paving width is 1.8-3.4m, and the maximum paving width can reach 5 meters. Suitable for street paving roads. XCMG paver can also be installed with a width limiting device. The minimum paving width is 0.8m, which is suitable for paving and maintenance construction operations of milling "trench".The hopper capacity of XCMG RP505 can reach 12 tons.

XCMG RP505 116HP Crawler Paver Specification

Model: RP505

Engeine: 86kW

Applicable Industries: Manufacturing Plant, Farms, Construction works

Paving Width: 1.8-5m

Paving Thickness: 280mm

Brand Name: XCMG

Hopper capacity: 12tons

Dimension: 5820×2000×3690mm

XCMG RP505 116HP crawler paver specification only for your reference, we can manufacture other model XCMG paver basic your request.

XCMG RP505 116HP Crawler Paver Features

XCMG RP505 crawler paver is mainly composed of vibration system, feeding system, paving system, thermal energy system, control system and other parts. Crawler paver is manufactured using advanced technology and craftsmanship. XCMG paver has high operating efficiency and stable working performance. It can also be laid with asphalt. It can evenly lay asphalt on the road surface, making the road surface smooth and uniform.

XCMG RP505 116HP Crawler Paver Advantage

The XCMG RP505 crawler paver adopts a fully hydraulic independent drive system with a crawler travelling device, which has a large grounding area and high adhesion, and can be adapted to the construction works of different roads.XCMG RP505 crawler paver adopts intelligent technology control system, the control precision and reliability of construction is higher. Newly designed console with more user-friendly operation interface and manual touch screen operation.
