8X4 SINOTRUK HOWO 430HP Tractor Truck With Crane

About 8X4 SINOTRUK HOWO 430HP Tractor Truck With Crane

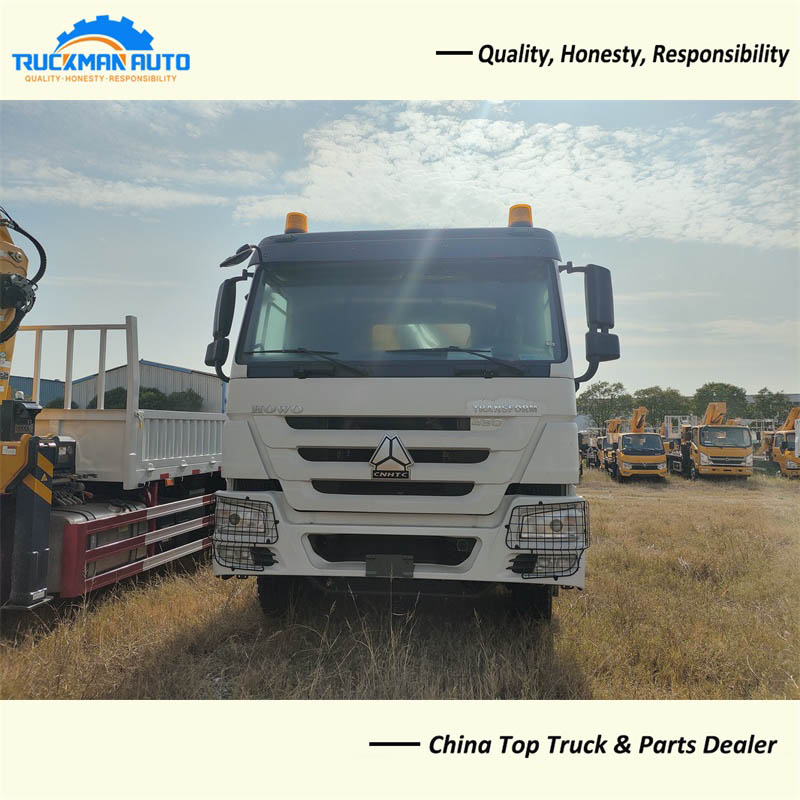

The SINOTRUK tractor truck with crane is equipped with two warning lights above the cab, which can increase visibility in bad weather conditions and improve driving safety. A truck-mounted crane is installed at the rear of the front end, which realizes lifting operations through the combination of different actions such as luffing, telescoping, slewing and winching. The chassis adopts widened and enlarged fenders, which can effectively block the splashing of mud and water, prevent the vehicle parts from being damaged and improve the service life.

8X4 SINOTRUK HOWO 430HP Tractor Truck With Crane Specification

Product Name: 8X4 SINOTRUK HOWO 430HP Tractor Truck With Crane

Application: Logistics and transportation

Engine: WP12.430E201, 430HP. Euro 2

Cabin: With one bed, A/C

Gearbox: 12 forward and 2 reverse gear

Tire: 13R22.5 , 12+1 pcs

Color: Optional

Crane: GSQZ400, folding arm

8X4 SINOTRUK HOWO 430HP Tractor Truck With Crane only for your reference, we can manufacture other Tractor Truck With Crane basic your request.

8X4 SINOTRUK HOWO 430HP Tractor Truck With Crane Folding Arm

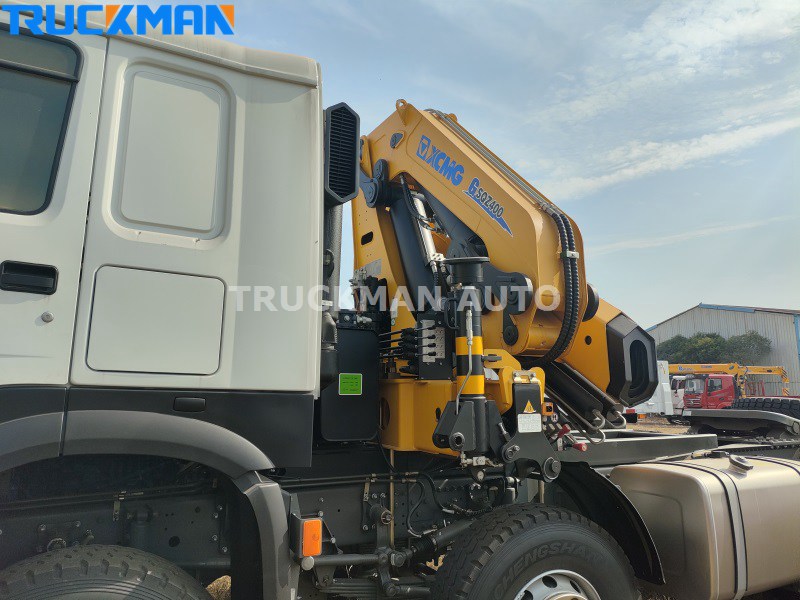

The 8X4 HOWO tractor truck is fitted with XCMG folding jib crane, model GSQZ400, with a maximum lifting capacity of 16 tons, and a boom length operating radius that can cover the ordinary 12-meter-long trailer connected to the back. Utilizing high-strength steel plate and hexagonal boom design, high strength. The whole machine adopts finite element lightweight design, light weight, small installation space; compact and beautiful structure; new hexagonal boom cross-section, greater lifting capacity under the same amplitude, and strong cross-section bending and twisting resistance.

What Type Of Reinforcement Design Is Used For Trucks With Crane Chassis?

Empty state will have to carry five or six tons of load, the SINOTRUK truck with crane in the chassisbearing to do a lot of strengthening. Longitudinal beam 3-layer frame, installing crane part of the frameto do local strengthening treatment, The crane is installed in the front, about 90% of the weight to beborne by the front suspension, the truck with crane's front suspension of the number of steel plates up to 10 to ensure the load-bearing properties. The rear axle is strong and durable, and the axle shell has a largeground clearance to meet the large load demand after lifting the truck-mounted crane.
