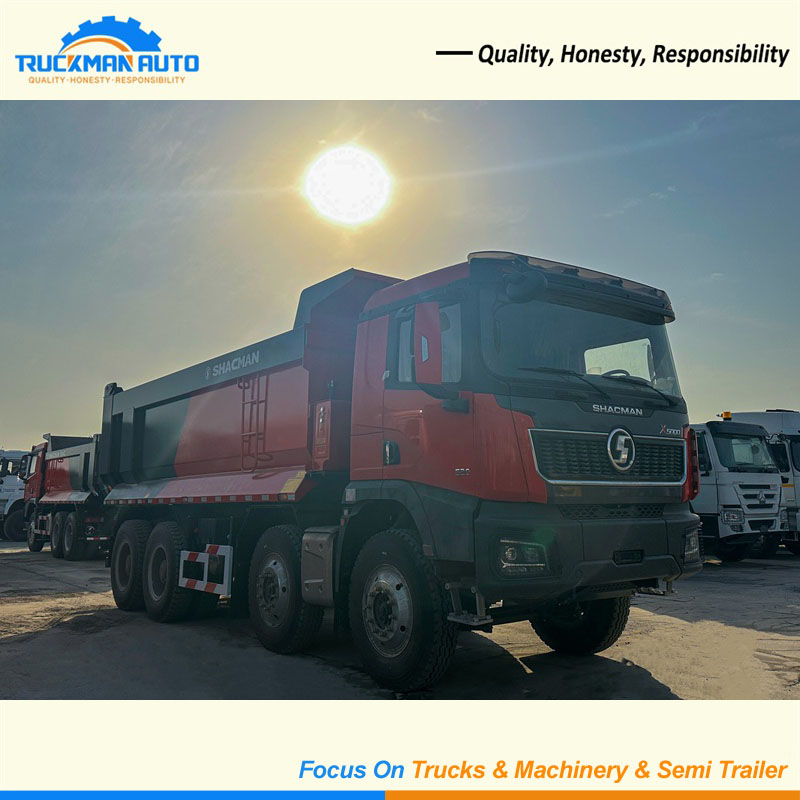

High End SHACMAN X5000 8X4 520HP Dump Truck For Peru

Introduction



The SHACMAN X5000 520HP Dump Truck is a new flagship mining dump truck developed for pilot application in the South American market.

While retaining the renowned reliability and high quality of its predecessors, this truck features further enhancements to both driving safety and the overall driving experience.

The truck is equipped with a Cummins M13 engine and a Fast 13-speed power-assisted transmission, providing a powerful and reliable powertrain that is well-suited for transporting copper and lithium from local mines in Peru.





What Is a SHACMAN X5000 8X4 Dump Truck?



This is a 12-wheel, ultra-heavy-duty dump truck equipped with a Hyva 179 lifting cylinder and a cargo box constructed from top-grade NM450 wear-resistant steel. Compared to standard truck models, this X5000 dump truck is comprehensively fortified with advanced core hardware across the domains of power, intelligence, and safety:

● AI-CARE ADAS: LDWS+FCW, EBS+ESC, AEBS, ASR.

● Cummins M13E5 Euro V engine, delivering robust torque with an output reaching up to 520 horsepower.

● Cargo box dimensions of 6500 × 2300 × 1600 mm, NM450 wear-resistant steel; the floor plate 12 mm, the side plates are 10 mm thick, Hyva 179 front-mounted lifting cylinder.

● Fast 13JSDX240T 13-speed cast-iron transmission, featuring pneumatic shift assistance and equipped with a QH50 PTO.

● HD 9.5-ton front axle with disc brakes; combined with an FHB400 hydraulic retarder.

● 12R24 tires, featuring a mixed-pattern tread on the front wheels and a transverse-pattern tread on the rear wheels.

This makes it the perfect choice for navigating rugged mining roads and performing high-intensity, heavy-load operations.





Technical Specifications



Feature	Value
Model	SX331862306C
Engine	M13, 520HP, EURO 5
Drive Type	8X4
Gearbox	13JSDX240T+QH50+FHB400
Front Axle	HD 9.5T, disc brake
Rear Axle	16T HD, drum brake, ratio 5.262
Cargo box	6500 × 2300 × 1600 mm
Fuel Tank	300L Aluminum Alloy
Tyre	12.00R24



Why It Is Suitable for Peru Mining Project



1. Road Conditions in the Andes Mountains

Mining roads in the Andes Mountains often face the following challenges:

● Steep and dangerous slopes

● Slippery and unpaved gravel roads

● Long, continuous downhill sections

● Overloaded transport operations

The FHB400 hydraulic retarder, paired with HD 9.5T disc brakes, provides absolutely reliable braking control even under full load conditions, ensuring vehicles safely traverse various slopes.



2.Intelligent Safety and Advanced Technology

Mining sites in South America often present the following hazards:

● Blind spot collisions

● Narrow roads

● Limited visibility due to dust

AI CARE Advanced Driver Assistance Systems (ADAS) and 360° surround view systems provide the entire fleet with comprehensive environmental awareness and can effectively prevent potential accidents.



3. Ideal for Ore Transport

Copper and lithium mining projects demand trucks that offer exceptional reliability, capable of withstanding extreme loading impacts and enduring high-intensity, multi-shift operations.

The SHACMAN X5000 dump truck meets these requirements perfectly, thanks to the following features:

● A rectangular cargo body constructed from NM450 wear-resistant steel, ensuring it remains free from deformation even under heavy loads.

● Equipped with an authentic HYVA 179 front-mounted hydraulic lifting cylinder, facilitating highly stable and secure unloading operations.

● Fitted with 12R24 mining-pattern tires, offering superior load-bearing capacity and enhanced traction.

Leveraging this array of advanced technical advantages, the X5000 model has emerged as the new preferred choice within this sector.





Previous Generation vs X5000 Dump Truck Comparison



More powerful, more resilient in harsh environments, smarter, and offers a superior driving experience.



Export Case



Country: Peru

Client Type: End User

Quantity: 2 Units

Application: Copper ore transport

Feedback: After one month of actual operation, the client reported excellent power performance, safe and reliable downhill handling, and a highly robust cargo box.

For more information, please visit



FAQ About SHACMAN X5000 Dump Truck.



Q: Who are we?

A: We are TRUCKMAN AUTO,a manufacturer with years of experience in research and development, design, and manufacturing in China



Q: How long is the delivery time for shipping of SHACMAN X5000 Dump Truck?

A: It depends on the order quantity, and generally takes 15-40 days.



Q: How do we ensure quality of SHACMAN 8X4 Dump Truck?

A: Our products use only genuine, original components from well-known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.



Q: What’s our MOQ of SHACMAN Mining Dump Truck?

A: For most products, the MOQ is 1 unit.
